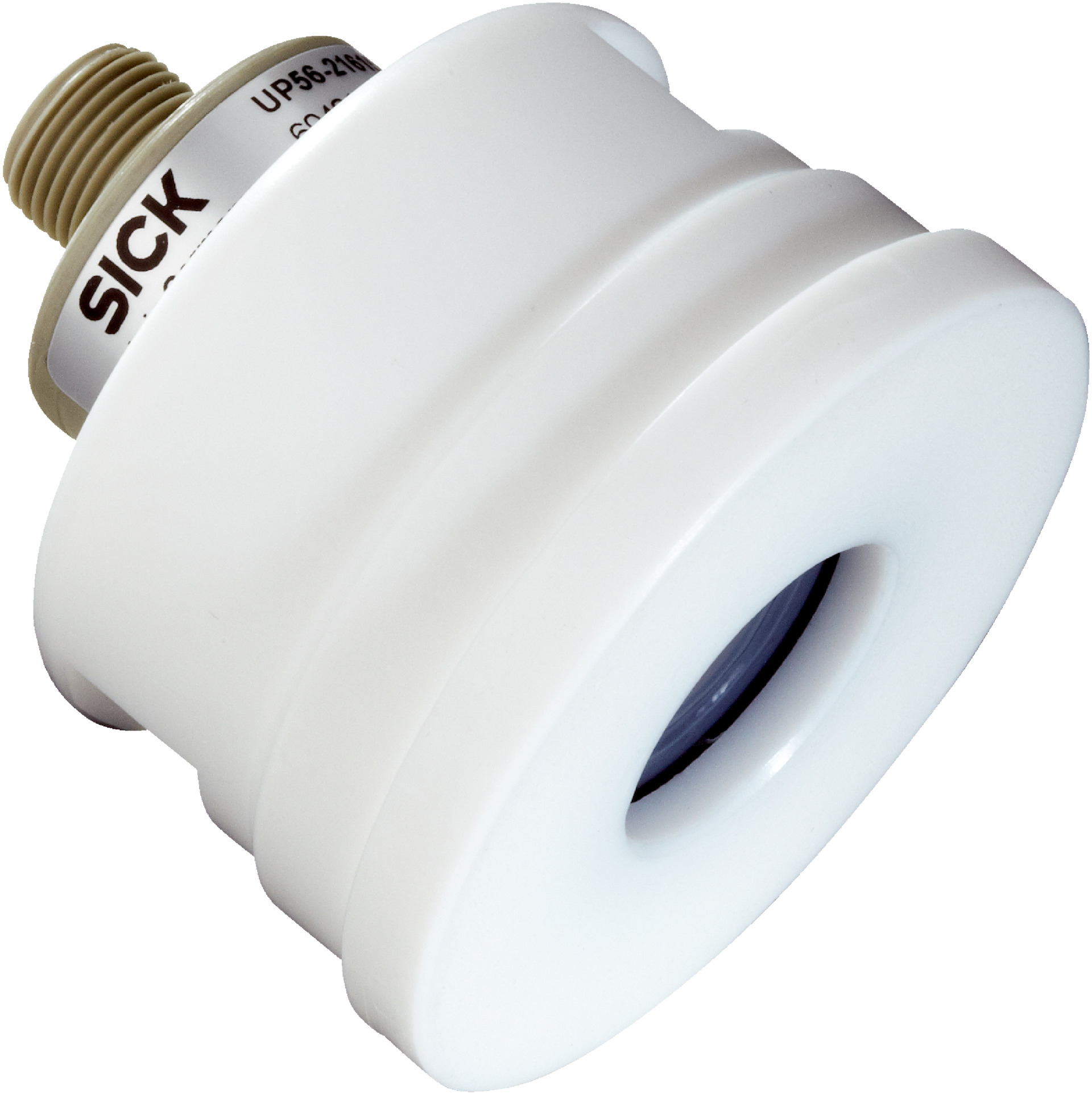

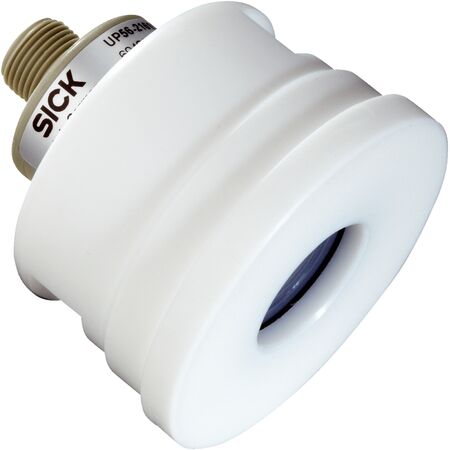

Ultrasonic Fluid Level Sensor | 65 mm to 700 mm Range | IP67 Rated | Fast Response Time | by SICK
The Ultrasonic Fluid Level Sensor UP56-216156 is designed for precise fluid level measurement in tanks and containers, featuring a measuring range of 65 mm to 700 mm and an impressive accuracy of ≤ 1%. With a fast response time of 84 ms and an IP67 enclosure rating, this sensor is perfect for industrial process monitoring and continuous level detection in various liquids.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range in tank: 65 mm to 700 mm
- Measuring range immersion tube: 65 mm to 1500 mm
- Process pressure: 0 to 2 bar
- Process temperature: –25 °C to +85 °C
- Accuracy: ≤ 1%
- Reproducibility: ± 0.15%
- Resolution: 0.18 mm
- Response time: 84 ms
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: ≤ 80 mA
- Output signal: 4 mA to 20 mA
- Enclosure rating: IP67
- Connection type: Round connector M12 x 1, 5-pin
- Ultrasonic frequency: 200 kHz
- Wetted parts: PTFE FFKM
- Housing material: PTFE, PP
- Dimensions (H x L x W): 100mm x 100mm x 40mm
- Weight: 0.145 kg
Key Features
- Measures fluid levels with a range of 65 mm to 700 mm in tanks and up to 1500 mm in immersion tubes
- High accuracy sensor element with ≤ 1% accuracy and ± 0.15% reproducibility
- Fast response time of 84 ms
- Compact housing made of PTFE and PP with IP67 enclosure rating
- Output signal of 4 mA to 20 mA with 200 mA output current
- Process pressure tolerance from 0 to 2 bar and temperature range from –25 °C to +85 °C
- Ultrasonic frequency of 200 kHz with PTFE coated FFKM transducer
- Connection via round M12 x 1, 5-pin connector
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Fluid level measurement in tanks and containers
- Industrial process monitoring
- Continuous and switch level detection in liquids
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact ultrasonic measurement reduces contamination risk and maintenance
- Durable materials and long MTTF (>100 years) reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UP56-216156 Ultrasonic Fluid Level Sensor is available for immediate purchase, ideal for industrial fluid level monitoring applications.
