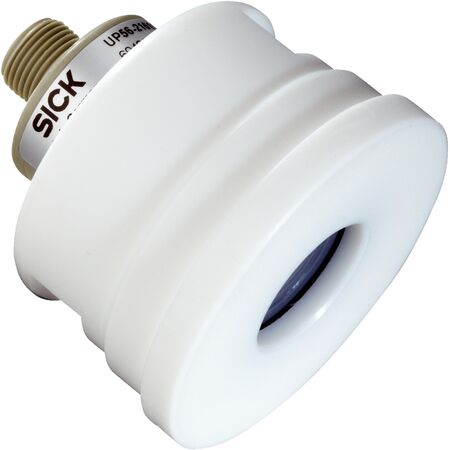

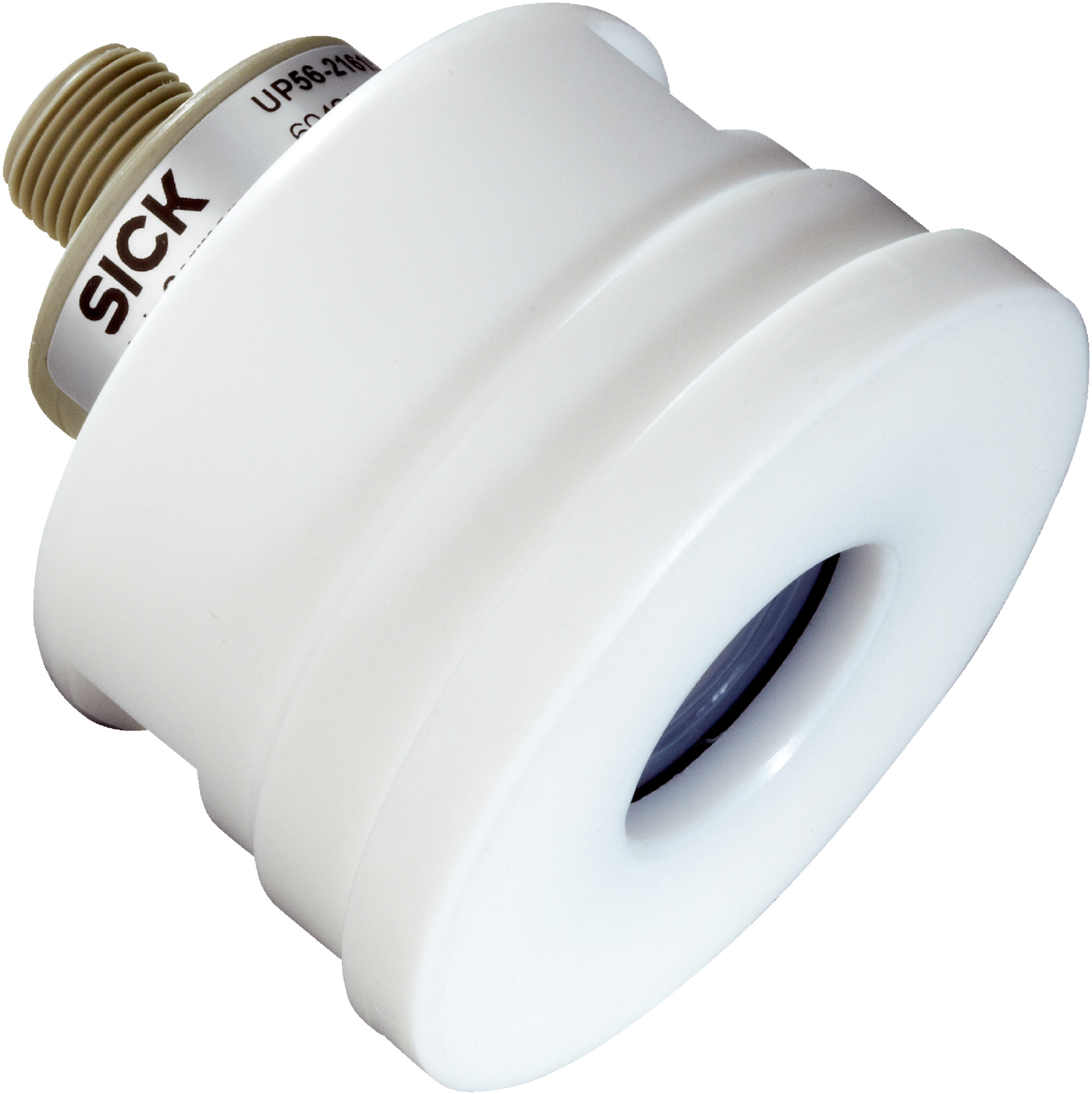

Ultrasonic Fluid Level Sensor | 85 mm to 1500 mm Range | IP67 Rated | High Accuracy | by SICK
The Ultrasonic Fluid Level Sensor is designed for precise fluid level measurement, featuring a versatile measuring range from 85 mm to 1500 mm. Ideal for industrial process control, this sensor offers high accuracy with ≤ 1% and a fast response time of 84 ms. Built for durability with an IP67 rating, it ensures reliable performance in harsh environments, making it perfect for tanks and containers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement: Switch and Continuous
- Measuring range in tank: 85 mm to 350 mm
- Measuring range immersion tube: 85 mm to 1500 mm
- Process pressure: 0 bar to 2 bar
- Process temperature: -25 °C to +85 °C
- Accuracy of sensor element: ≤ 1%
- Reproducibility: ± 0.15%
- Resolution: 0.18 mm
- Response time: 84 ms
- MTTF: > 100 years
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: ≤ 80 mA
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 4 mA to 20 mA
- Hysteresis: 5 mm
- Output current: 200 mA
- Time delay before availability: ≤ 300 ms
- Enclosure rating: IP67
- Ultrasonic frequency: 320 kHz
- Ultrasonic transducer coating: PTFE, FFKM
- Wetted parts: PTFE, FFKM
- Process connection: GF connection D40
- Housing material: PTFE, PP
- Housing design: Compact
- Dimensions (H x L x W): 100mm x 100mm x 40mm
- Weight: 0.145 kg
Key Features
- Measures fluid levels with switch and continuous output
- Measuring range in tank: 85 mm to 350 mm
- Measuring range immersion tube: 85 mm to 1500 mm
- Process pressure range from 0 bar to 2 bar
- Process temperature range from -25 °C to +85 °C
- High accuracy sensor element with ≤ 1% accuracy
- Reproducibility of ± 0.15%
- Fast response time of 84 ms
- Long mean time to failure (MTTF) greater than 100 years
- Output signal 4 mA to 20 mA
- Protection rating IP67 for harsh environments
- Compact housing made of PTFE and PP
- Wetted parts made of PTFE and FFKM for chemical resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fluid level sensor integration and electrical safety standards.
Applications
- Fluid level measurement in tanks and containers
- Industrial process control involving fluid monitoring
- Applications requiring continuous or switch measurement of fluid levels
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact ultrasonic measurement reduces contamination risk and maintenance
- Durable materials extend product life reducing waste
- Low power consumption enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UP56-212156 Ultrasonic Fluid Level Sensor is available for immediate purchase, ideal for industrial fluid level monitoring applications.
