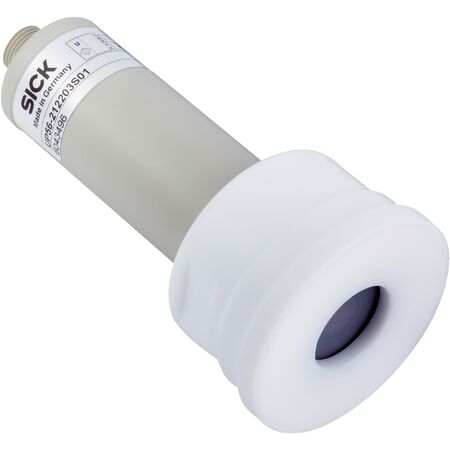

Ultrasonic Fluid Level Sensor | Continuous & Switch Measurement | IP67 Rated | by SICK
The Ultrasonic Fluid Level Sensor UP56-216148 utilizes advanced ultrasonic technology for precise fluid level measurement in tanks and containers. With a measuring range of 65 mm to 700 mm and an impressive accuracy of ≤ 1%, it's perfect for industrial process control and fluid monitoring. Designed for durability, it features a robust IP67 rated enclosure, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids
- Measurement: Switch, Continuous
- Measuring range in tank: 65 mm to 700 mm
- Measuring range immersion tube: 65 mm to 1500 mm
- Process pressure: 0 bar to 6 bar
- Process temperature: -25 °C to +85 °C
- Accuracy of sensor element: ≤ 1%
- Reproducibility: ± 0.15%
- Resolution: 0.18 mm
- Response time: 84 ms
- MTTF: > 100 years
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: ≤ 80 mA
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 1 x PNP + 4 mA to 20 mA / 0 V to 10 V
- Hysteresis: 5 mm
- Output current: 200 mA
- Time delay before availability: ≤ 300 ms
- Enclosure rating: IP67
- Ultrasonic frequency: 200 kHz
- Ultrasonic transducer: PTFE coating, FFKM
- Wetted parts: PTFE, FFKM
- Process connection: GF connection D40
- Housing material: PTFE, PP
- Ambient operating temperature: -25 °C to +70 °C
- Ambient temperature, storage: -40 °C to +85 °C
- Dimensions (H x L x W): 150mm x 40mm x 40mm
- Weight: 0.21 kg
Key Features
- Measures fluid levels with ultrasonic technology
- Switch and continuous measurement modes
- Measuring range in tank: 65 mm to 700 mm
- Measuring range immersion tube: 65 mm to 1500 mm
- Process pressure up to 6 bar
- Process temperature range from -25 °C to +85 °C
- High accuracy sensor element with ≤ 1% accuracy
- Reproducibility of ± 0.15%
- Fast response time of 84 ms
- IP67 rated enclosure for protection against dust and water
- Output signals include PNP switch and 4 mA to 20 mA / 0 V to 10 V analog
- Robust PTFE and FFKM wetted parts for chemical resistance
- Round connector M12 x 1, 5-pin connection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic sensors and electrical connections to ensure proper setup and safety compliance.
Applications
- Fluid level measurement in tanks and containers
- Industrial process control involving fluid monitoring
- Continuous and switch level detection in liquids
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact ultrasonic measurement reduces contamination risk and maintenance
- Durable materials extend product life and reduce waste
- Low power consumption enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK UP56-216148 Ultrasonic Fluid Level Sensor is available for immediate purchase, ideal for industrial fluid level monitoring and control applications.
