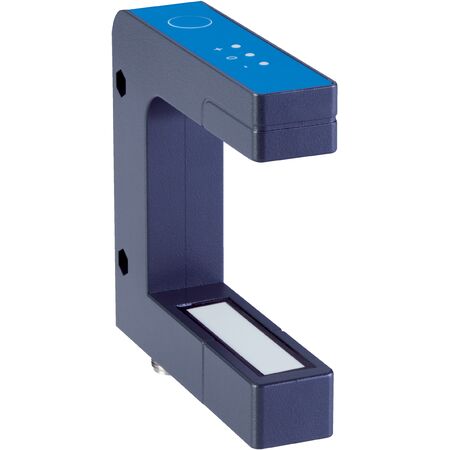

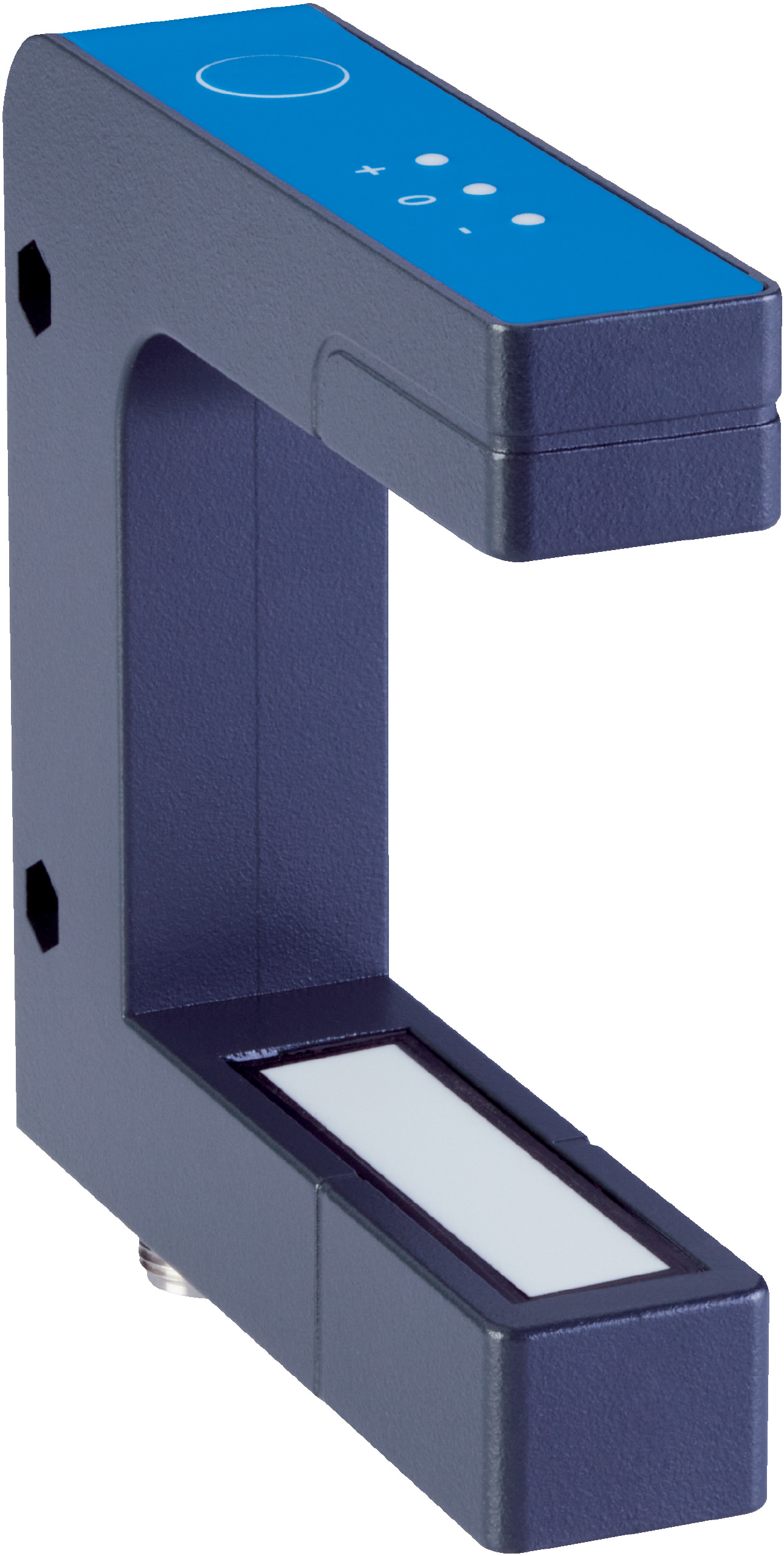

Ultrasonic Fork Sensor | 0.01 mm Resolution | IP65 Enclosure | by SICK
The Ultrasonic Fork Sensor UFW6-73B717IZZ features a high-resolution detection of 0.01 mm, making it ideal for precise material edge detection in industrial automation. With a robust IP65-rated housing and adjustable settings via a teach-in button, this sensor ensures reliable performance in various applications, including quality control and object detection on conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Ultrasonic detection
- Resolution: 0.01 mm
- Fork width: 60 mm
- Fork depth: 73 mm
- Detection zone: 40 mm
- Repeatability: ± 0.1 mm
- Adjustment: Teach-in button, cable (One Point and Two Point Adjustment), analog output current/voltage
- IO-Link version: 1.1 with COM3 (230.4 kBaud) data rate
- Cycle time: 4 ms
- Analog output: Current 4 mA to 20 mA, Voltage 0 V to 10 V
- Digital output: 1 switching output (Push-pull PNP/NPN)
- Supply voltage: 20 V DC to 30 V DC
- Current consumption: 60 mA
- Ultrasonic frequency: 170 kHz
- Response time: 6 ms
- Output current max: 100 mA
- Initialization time: < 300 ms
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP65
- Housing material: Zinc diecast PBT
- Connection type: Plug, M12, 5-pin
- Operating temperature: +5 °C to +60 °C
- Storage temperature: -40 °C to +85 °C
- Shock load: According to EN 60068-2-27
- EMC: EN 60947-5-2
- Protection class: III
- Dimensions (H x L x W): 97mm x 97.5mm x 23.5mm
- Weight: 0.28 kg
Key Features
- Ultrasonic detection principle with high resolution of 0.01 mm
- Fork shaped housing with 60 mm fork width and 73 mm fork depth
- Detection zone of 40 mm with repeatability of ± 0.1 mm
- Adjustable via teach-in button and cable with one-point and two-point adjustment
- IO-Link V1.1 interface with fast data transmission and 32-bit process data length
- Analog output (current 4 mA to 20 mA, voltage 0 V to 10 V) and digital output
- Push-pull PNP/NPN switching output with max 100 mA output current
- Robust zinc diecast PBT housing with IP65 enclosure rating
- LED indicators for material edge alignment status
- Reverse polarity protection, short-circuit protection, and interference pulse suppression
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Material edge detection and positioning in industrial automation
- Quality control in manufacturing processes
- Object detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient ultrasonic sensing reduces power consumption in industrial automation
- Durable housing and long service life minimize waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UFW6-73B717IZZ Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and material detection applications.
