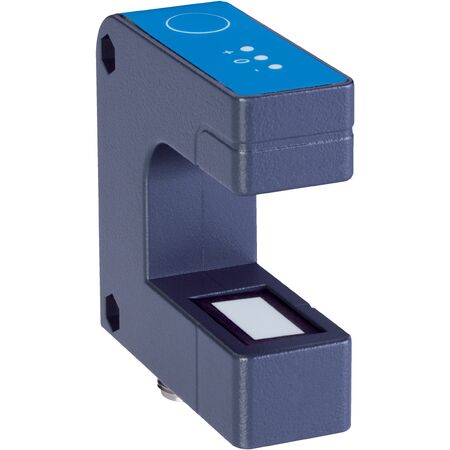

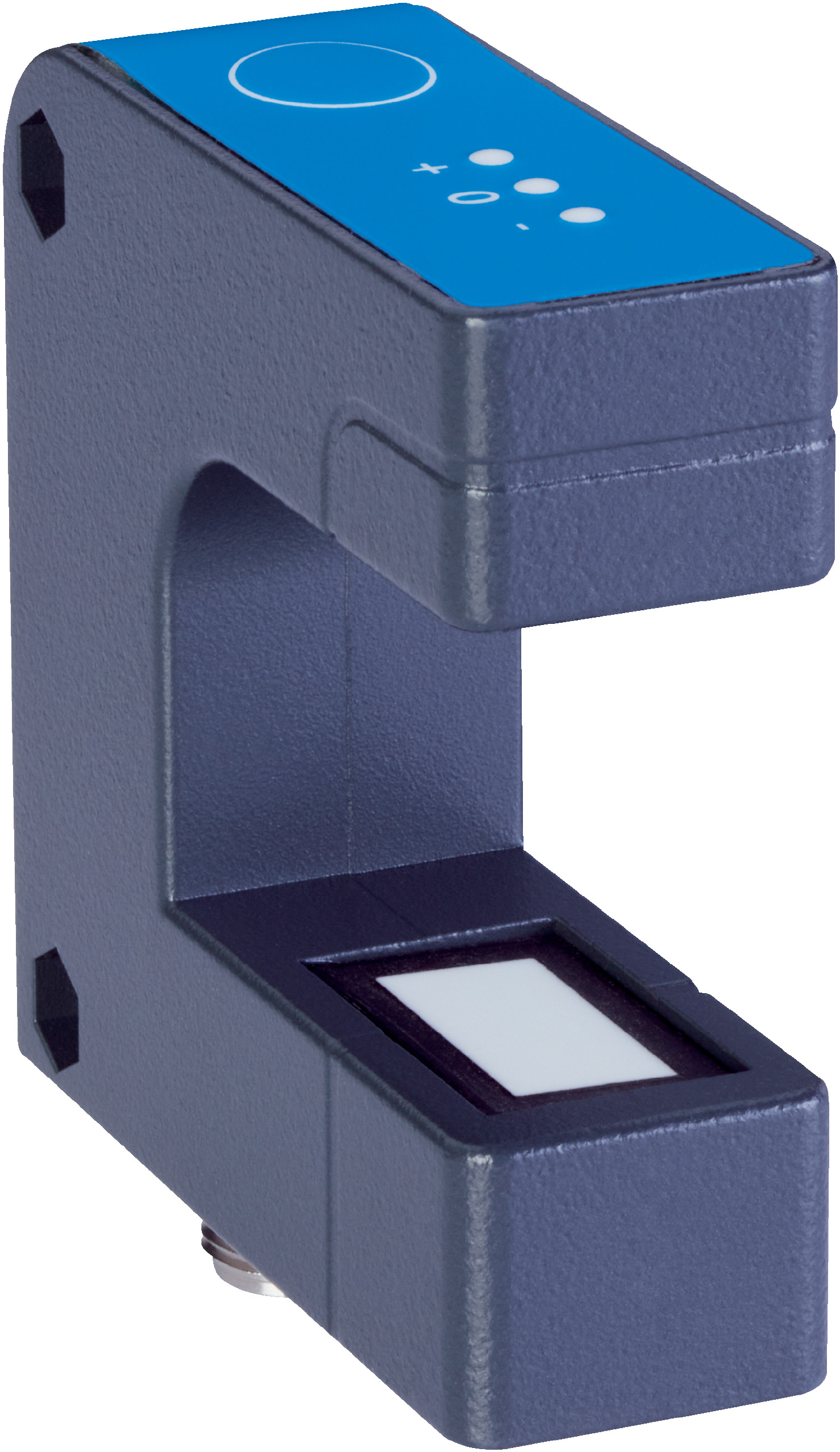

Ultrasonic Fork Sensor | 12 mm Detection Zone | 0.01 mm Resolution | IP65 Rated | by SICK
The Ultrasonic Fork Sensor is designed for precise object detection with a 12 mm detection zone and a high resolution of 0.01 mm. Ideal for industrial automation and material positioning, this sensor features a robust design with IP65 enclosure rating, ensuring reliable performance in various environments. With an IO-Link interface and adjustable settings, it’s perfect for quality control and safety monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Detection zone: 12 mm
- Resolution: 0.01 mm
- Repeatability: ± 0.1 mm
- Supply voltage: 20 V DC to 30 V DC
- Current consumption: 60 mA
- Ultrasonic frequency: 170 kHz
- Response time: 5.1 ms
- Switching output: Push-pull PNP/NPN
- Initialization time: < 300 ms
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP65
- Connection type: M12, 5-pin plug
- Operating temperature: +5 °C to +60 °C
- Storage temperature: -40 °C to +85 °C
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 67mm x 67.5mm x 23.5mm
- Weight: 0.19 kg
Key Features
- Ultrasonic detection principle for reliable sensing
- Fork shaped housing design with 30 mm fork width and 43 mm fork depth
- High resolution of 0.01 mm and repeatability of ± 0.1 mm
- Adjustable via teach-in button and cable with one or two point adjustment
- IO-Link V1.1 interface with fast 4 ms cycle time and 32 Bit process data length
- Analog output options: current (4 mA to 20 mA) and voltage (0 V to 10 V)
- Push-pull switching output (PNP/NPN) with max output current of 100 mA
- Robust zinc diecast PBT housing with IP65 enclosure rating
- LED indicators for material edge alignment and detection status
- Operating temperature range from +5 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for precise object detection
- Material positioning and edge detection in manufacturing
- Quality control and safety monitoring in production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient ultrasonic sensing reduces power consumption
- Durable construction minimizes waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UFW3-43B717IZZ Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and material detection applications.
