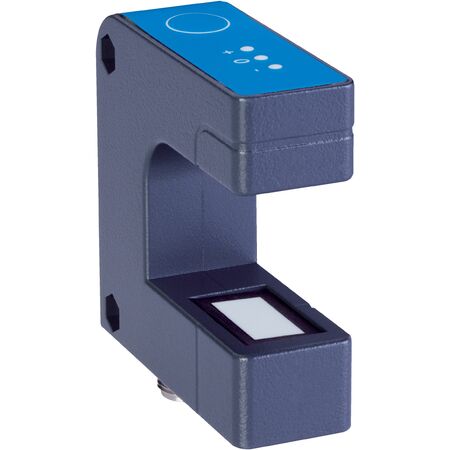

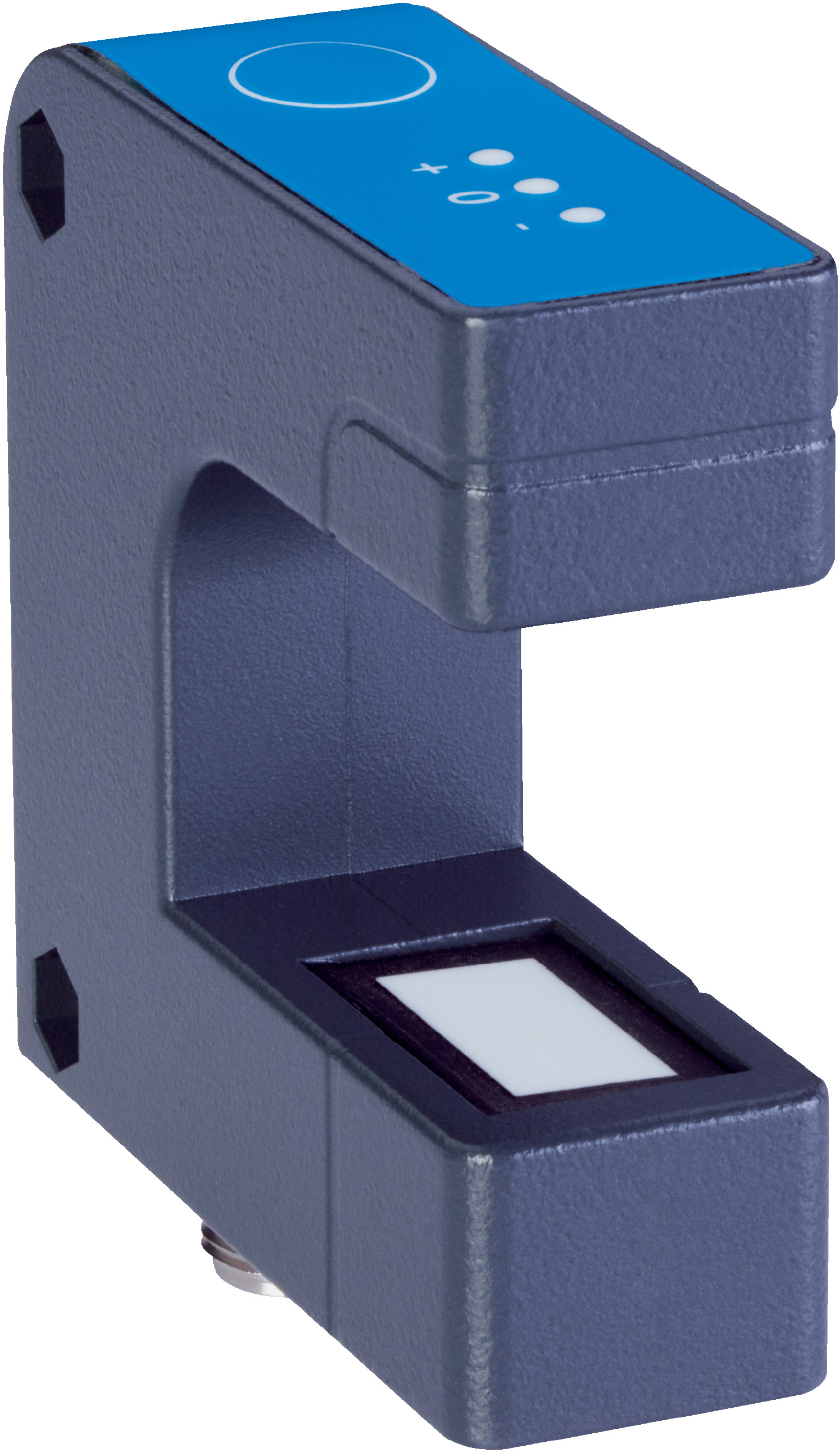

Ultrasonic Fork Sensor | High Resolution 0.01 mm | IP67 Rated | by SICK
The Ultrasonic Fork Sensor UFW3-43B717ZZZ offers precise sensing with a high resolution of 0.01 mm and a repeatability of ± 0.1 mm, making it ideal for material edge detection in industrial automation. With an IP67 rated enclosure, this sensor is built for robust performance in challenging environments, ensuring reliable operation in quality control and object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Detection principle: Ultrasonic
- Resolution: 0.01 mm
- Repeatability: ± 0.1 mm
- Detection zone: 12 mm
- Supply voltage: 20 V DC to 30 V DC
- Current consumption: 60 mA
- Ultrasonic frequency: 170 kHz
- Response time: 5.1 ms
- Switching output: Push-pull PNP/NPN, max 100 mA
- Analog output: 4 mA to 20 mA current or 0 V to 10 V voltage
- Communication: IO-Link V1.1, COM3 (230.4 kBaud)
- Enclosure rating: IP67
- Housing material: Zinc diecast PBT
- Connection type: M12, 5-pin plug
- Dimensions (H x L x W): 67mm x 67.5mm x 23.5mm
- Weight: 0.19 kg
Key Features
- Ultrasonic detection principle for precise sensing
- Fork shaped housing design with 30 mm fork width and 43 mm fork depth
- High resolution of 0.01 mm and repeatability of ± 0.1 mm
- Adjustable via teach-in button and cable with one-point and two-point adjustment
- IO-Link V1.1 interface with COM3 data transmission rate (230.4 kBaud)
- Analog output (4 mA to 20 mA current or 0 V to 10 V voltage) and digital push-pull output (PNP/NPN)
- Supply voltage range 20 V DC to 30 V DC with low ripple (<10%)
- Response time of 5.1 ms and IP67 rated enclosure for robust industrial use
- LED indicators for material edge alignment status
- Reverse polarity protected and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Material edge detection and positioning in industrial automation
- Quality control in manufacturing processes
- Object detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation reduces power consumption in industrial automation
- Durable IP67 housing extends product life, reducing waste
- Compliant with China-RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UFW3-43B717ZZZ Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and material detection applications.
