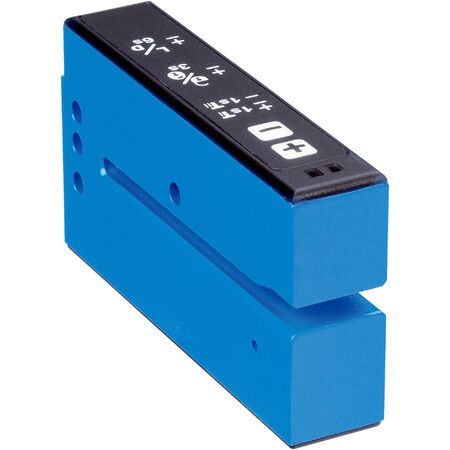

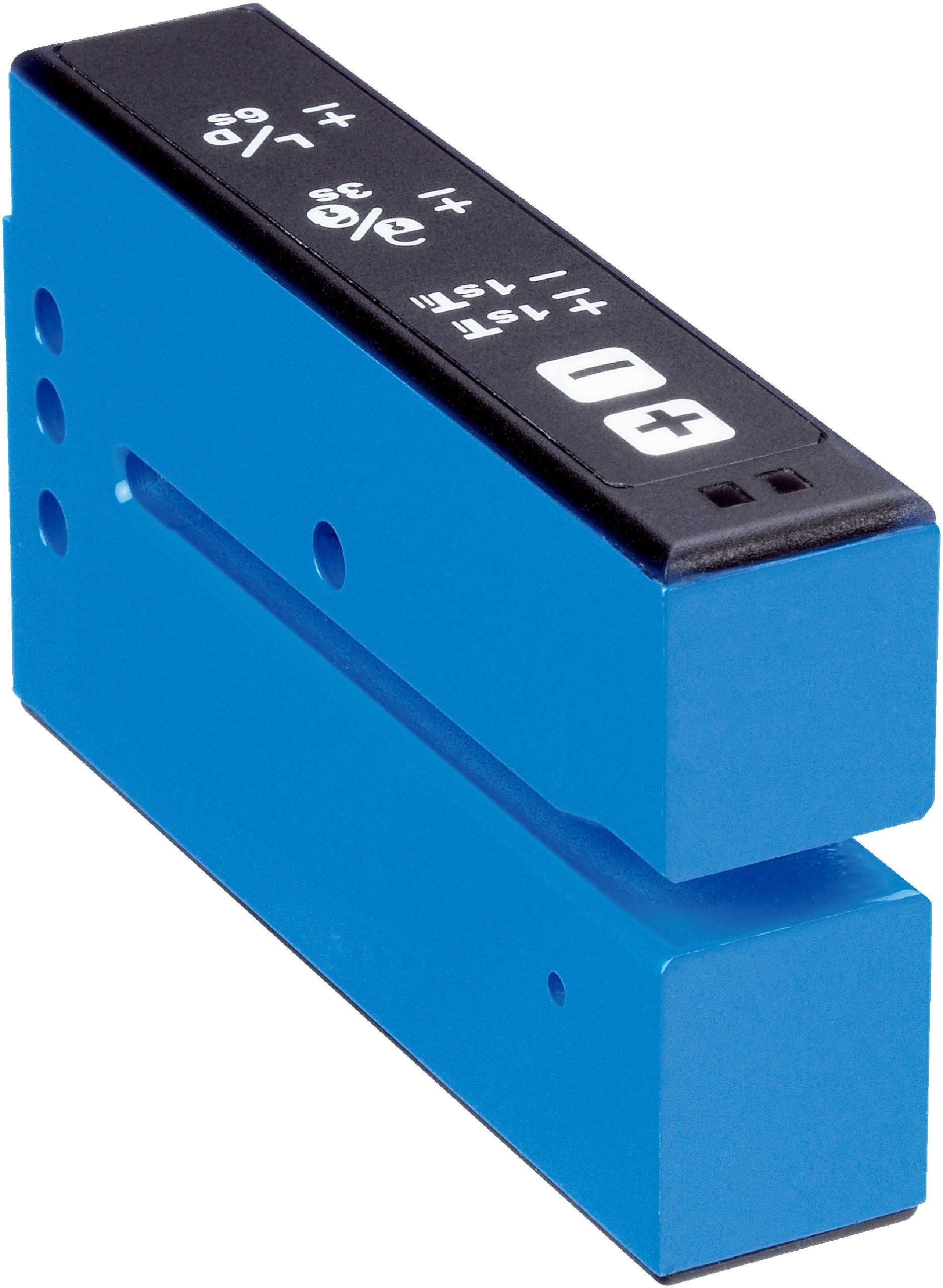

Ultrasonic Fork Sensor UFN3-70B113 | IP65 Rated | 2-Point Teach-In Mode | PNP/NPN Outputs | by SICK
The Ultrasonic Fork Sensor UFN3-70B113 is designed for reliable label detection and object sensing in industrial automation. With an IP65 rated enclosure, it ensures durability against dust and water, while its ultrasonic detection principle provides accurate results. Ideal for packaging and quality control applications, this sensor features a fork-shaped aluminum housing and easy-to-use teach-in modes for seamless integration into your systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 40 mA
- Switching frequency: 1.5 kHz
- Response time: ≤ 250 µs
- Output current max: 100 mA
- Switching output: PNP and NPN
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: 4-wire cable, 2 m length
- Ambient operating temperature: +5 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- Shock load: According to EN 60068-2-27
- EMC: EN 60947-5-2
- Protection class: III
- MTTFD: 207 years
- Ripple: < 10%
- Dimensions (H x L x W): 47.5mm x 85.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Ultrasonic detection principle for reliable sensing
- Fork shaped aluminum housing with 3 mm fork width
- 2-point and dynamic teach-in modes for easy adjustment
- Light/dark switching mode with PNP and NPN outputs
- Short-circuit protected output with interference pulse suppression
- IP65 rated enclosure for dust and water resistance
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Label detection in packaging and labeling machines
- Object detection in industrial automation
- Quality control in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact ultrasonic sensing reduces wear and tear, extending product life
- Energy-efficient operation with low current consumption (40 mA)
- Durable IP65 housing minimizes environmental impact by reducing replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK UFN3-70B113 Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
