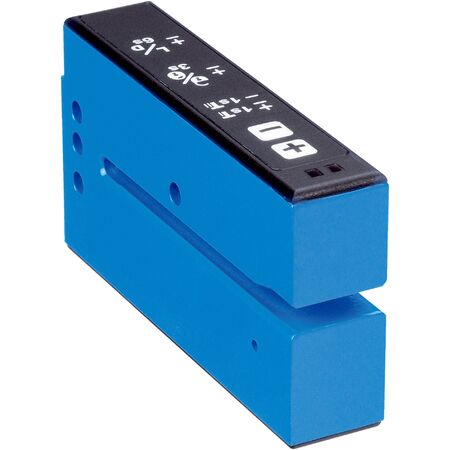

Ultrasonic Fork Sensor UFN3-70N415 | IP65 Rated | Adjustable Sensitivity | Fast Response Time | by SICK
The Ultrasonic Fork Sensor UFN3-70N415 is designed for precise label detection and object sensing in industrial automation. With an IP65 rated enclosure, it offers reliable performance in harsh environments. Featuring adjustable sensitivity and a fast response time of ≤ 250 µs, this sensor is perfect for packaging, printing, and quality control applications, ensuring optimal efficiency and accuracy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 40 mA
- Switching frequency: 1.5 kHz
- Response time: ≤ 250 µs
- Switching output: NPN, max output current 100 mA
- Adjustment: Plus/minus button, cable teach-in for sensitivity and light/dark switching
- Teach-in modes: 2-point teach-in and dynamic teach-in
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male connector M8, 4-pin
- Operating temperature: +5 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- Shock load: According to EN 60068-2-27
- EMC: EN 60947-5-2
- Protection class: III
- Dimensions (H x L x W): 47.5mm x 92.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Ultrasonic detection principle for reliable sensing
- Fork shaped aluminum housing with 3 mm fork width
- Adjustable sensitivity and light/dark switching via teach-in modes
- High switching frequency of 1.5 kHz and fast response time ≤ 250 µs
- IP65 rated enclosure for protection against dust and water
- Short-circuit protected output with interference pulse suppression
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic sensors and electrical safety standards to ensure proper setup and compliance.
Applications
- Label detection in packaging and printing industries
- Object detection in automation and manufacturing processes
- Quality control for gap and label size measurement
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact ultrasonic sensing reduces wear and tear, extending product life
- Energy-efficient operation with low current consumption of 40 mA
- Robust IP65 housing minimizes environmental impact by reducing sensor failures
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK UFN3-70N415 Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
