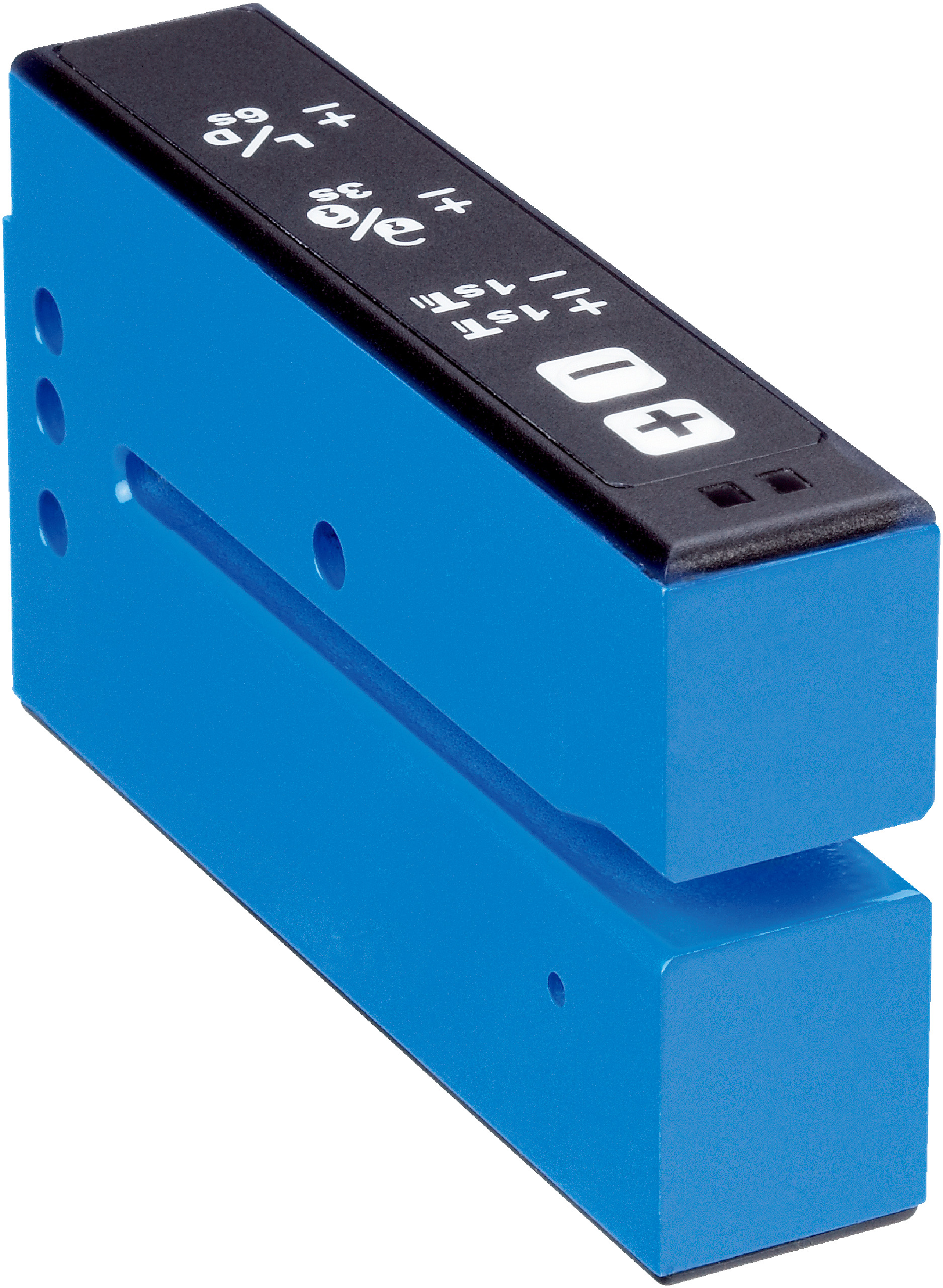

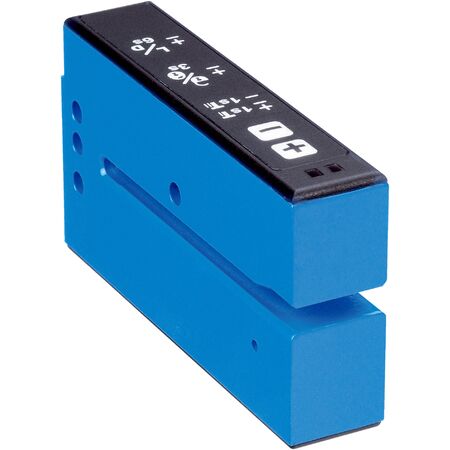

Ultrasonic Fork Sensor UFN3-70P415 | IP65 Rated | Fast Response Time | Adjustable Sensitivity | by SICK
The Ultrasonic Fork Sensor UFN3-70P415 is designed for reliable label detection and object sensing in industrial automation. With an IP65 rated enclosure, it offers protection against dust and water, while its fast response time of ≤ 250 µs and high switching frequency of 1.5 kHz ensure precise operation. Ideal for packaging and manufacturing processes, this sensor features adjustable sensitivity for flexible configuration, making it a perfect choice for quality control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 40 mA
- Switching frequency: 1.5 kHz
- Response time: ≤ 250 µs
- Switching output: PNP with max output current 100 mA
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male connector M8, 4-pin
- Ambient operating temperature: +5 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- Shock load compliant with EN 60068-2-27
- EMC compliant with EN 60947-5-2
- Protection class: III
- Dimensions (H x L x W): 47.5mm x 92.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Ultrasonic detection principle for reliable sensing
- Fork shaped aluminum housing with 3 mm fork width and 69 mm fork depth
- Adjustable sensitivity and light/dark switching via plus/minus button and cable
- 2-point and dynamic teach-in modes for flexible configuration
- High switching frequency of 1.5 kHz and fast response time ≤ 250 µs
- IP65 rated enclosure for protection against dust and water
- Short-circuit protected output with interference pulse suppression
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic sensor technology and electrical safety standards.
Applications
- Label detection in packaging and printing industries
- Object detection in automation and manufacturing processes
- Quality control systems requiring precise gap and label size detection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact ultrasonic sensing reduces wear and tear, extending product life
- Energy-efficient operation with low current consumption (40 mA)
- Robust IP65 housing minimizes environmental impact by reducing sensor failures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UFN3-70P415 Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
