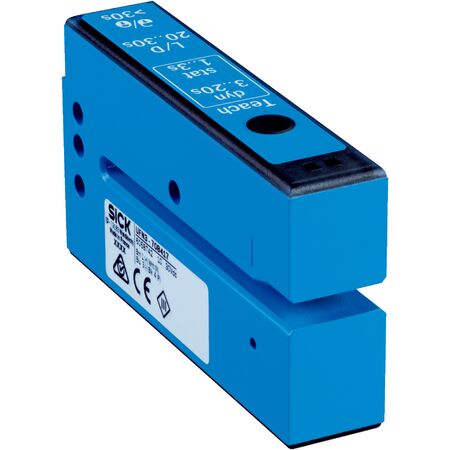

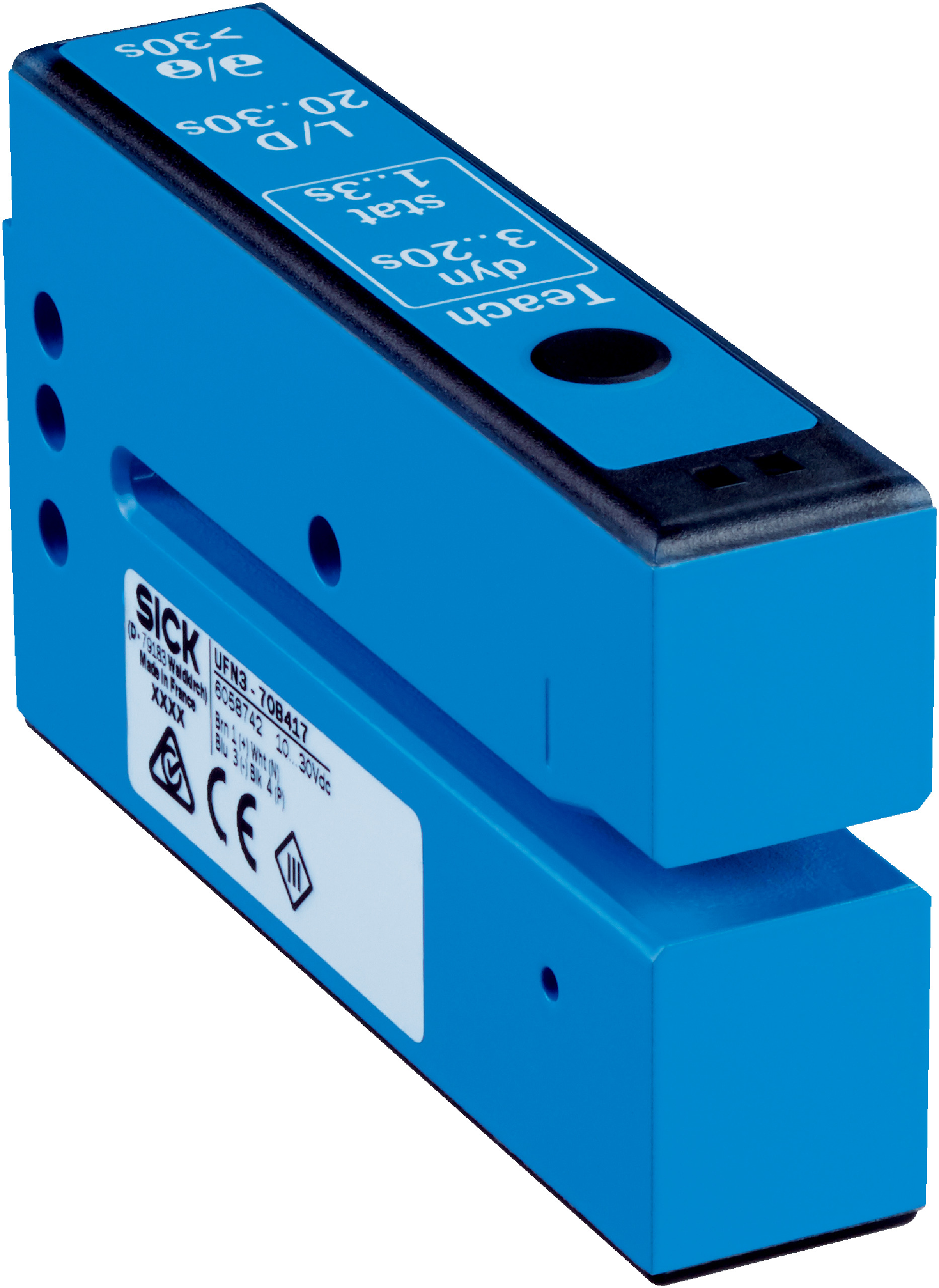

Ultrasonic Fork Sensor UFN3-70P417 | IP65 Rated | Fast Response Time | 1.5 kHz Switching Frequency | by SICK
The Ultrasonic Fork Sensor UFN3-70P417 is designed for reliable label detection and object sensing in industrial automation. With an IP65 rated enclosure, it offers protection against dust and water, while its fast response time of ≤ 250 µs and high switching frequency of 1.5 kHz ensure precise operation. Ideal for packaging and manufacturing processes, this sensor features a teach-in button for easy sensitivity adjustments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 40 mA
- Switching frequency: 1.5 kHz
- Response time: ≤ 250 µs
- Switching output: PNP with max output current 100 mA
- Switching mode: Light/dark switching
- Enclosure rating: IP65
- Housing material: Aluminum
- Connection type: Male connector M8, 4-pin
- Ambient operating temperature: +5 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- Shock load: According to EN 60068-2-27
- EMC: EN 60947-5-2
- Protection class: III
- Dimensions (H x L x W): 47.5mm x 92.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Ultrasonic detection principle for reliable sensing
- Fork shaped aluminum housing with 3 mm fork width
- Minimum detectable object size of 2 mm
- Teach-in button and cable for easy adjustment of sensitivity and switching modes
- High switching frequency of 1.5 kHz and fast response time ≤ 250 µs
- IP65 rated enclosure for protection against dust and water
- Short-circuit protected output with interference pulse suppression
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic sensor technology and electrical safety standards.
Applications
- Label detection in packaging and printing industries
- Object detection in automation and manufacturing processes
- Quality control for gap and label size measurement
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact ultrasonic sensing reduces wear and tear, extending product life
- Energy-efficient operation with low current consumption of 40 mA
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK UFN3-70P417 Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
