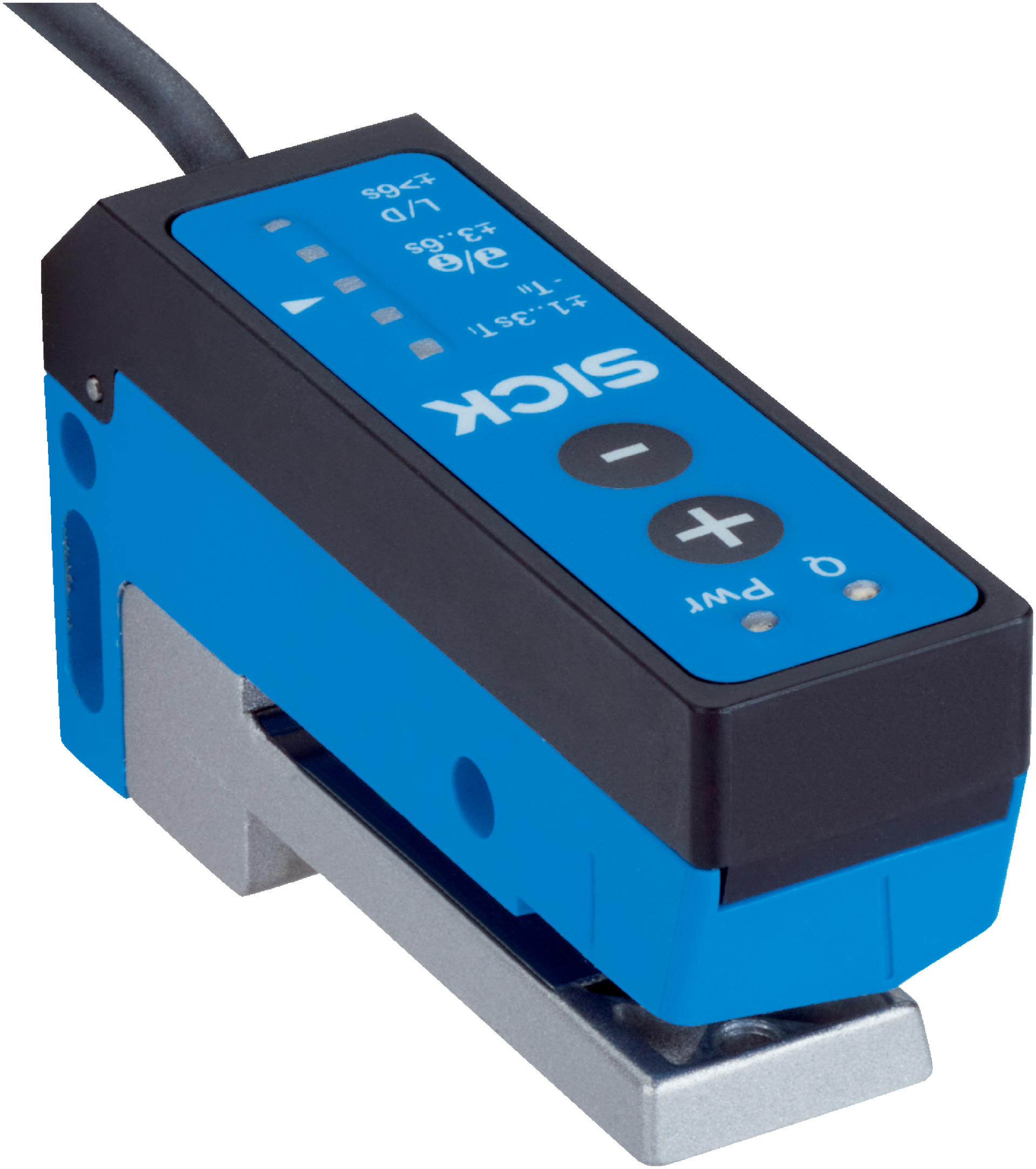

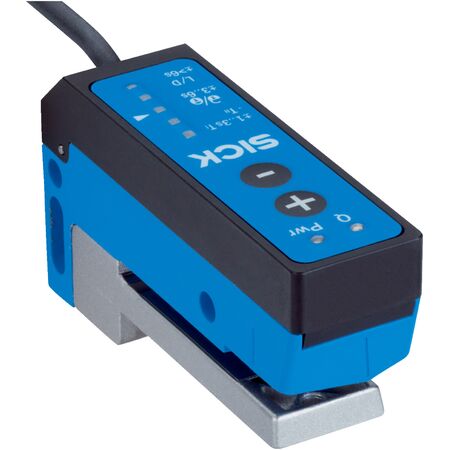

Ultrasonic Fork Sensor UFS3-37B115 | IP65 Rated | 1.1 kHz Switching Frequency | Adjustable Teach-in Modes | by SICK
The Ultrasonic Fork Sensor UFS3-37B115 is designed for reliable label detection and object sensing in industrial automation. With an IP65 rated enclosure, it operates efficiently in various environments, featuring a high switching frequency of 1.1 kHz and a quick response time of ≤ 440 µs. Ideal for packaging and quality control applications, this sensor ensures precise detection with its adjustable settings and robust design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching frequency: 1.1 kHz
- Response time: ≤ 440 µs
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Enclosure rating: IP65
- Cable: 4-wire, 2 m length, PVC material, Ø 3.5 mm
- Operating temperature: +5 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- EMC compliant to EN 60947-5-2
- Shock load compliant to EN 60068-2-27
- Dimensions (H x L x W): 37mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Ultrasonic detection principle for reliable sensing
- Fork shaped housing design with 2.6 mm fork width
- Minimum detectable object size: 2 mm label size with 1 mm label gap
- Adjustable via plus/minus button and cable with Teach-in modes
- IO-Link V1.1 interface with 230.4 kBaud data transmission rate
- Push-pull PNP/NPN switching output with light/dark switching
- High switching frequency of 1.1 kHz and response time ≤ 440 µs
- IP65 rated enclosure for protection against dust and water
- Cable open end, 4-wire, 2 m length with PVC material
- LED indicators for power and switching output status
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Label detection in packaging and labeling machines
- Object detection in industrial automation
- Quality control in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK UFS3-37B115 Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
