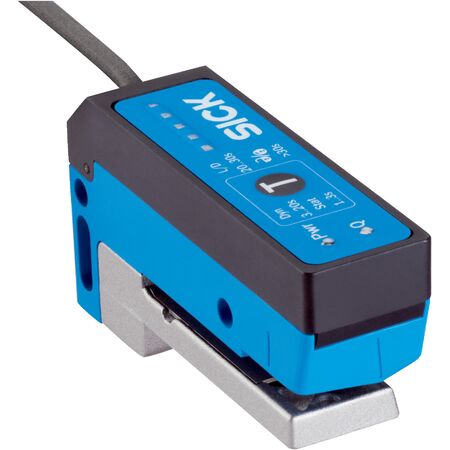

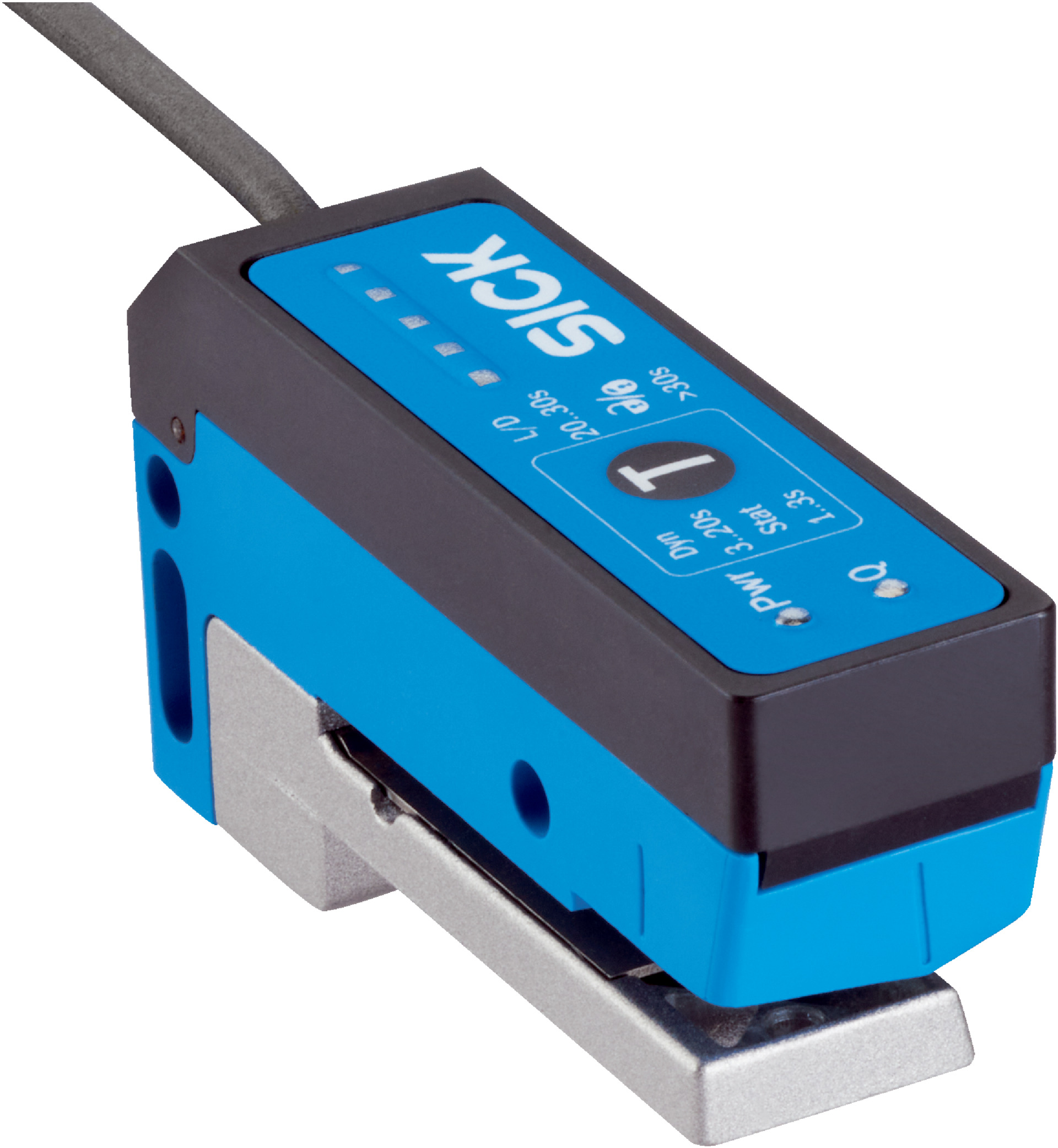

Ultrasonic Fork Sensor UFS3-37B117 | IP65 Rated | 1.1 kHz Switching Frequency | Adjustable Sensitivity | by SICK
The Ultrasonic Fork Sensor UFS3-37B117 is designed for precise label detection in packaging and printing industries. With an IP65 rating for dust and water protection, it features a high switching frequency of 1.1 kHz and adjustable sensitivity via a teach-in button. Ideal for industrial automation, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching frequency: 1.1 kHz
- Response time: ≤ 440 µs
- Switching output: Push-pull PNP/NPN, max output current 100 mA
- Enclosure rating: IP65
- Cable: 4-wire, 2 m length, PVC material, 3.5 mm diameter
- Operating temperature: +5 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- Shock load compliant with EN 60068-2-27
- EMC compliant with EN 60947-5-2
- Dimensions (H x L x W): 37mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Ultrasonic detection principle for reliable sensing
- Fork shaped housing design with 2.6 mm fork width
- Minimum detectable object size: 2 mm label size with 1 mm label gap
- Adjustable via teach-in button and cable for sensitivity and switching modes
- IO-Link V1.1 interface with fast data transmission and 4 ms cycle time
- Push-pull PNP/NPN switching output with light/dark switching mode
- High switching frequency of 1.1 kHz and response time ≤ 440 µs
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protected circuitry
- LED indicators for power and switching status
Professional Installation Requirements
- Installation by a qualified electrician or automation technician is recommended to ensure proper wiring and configuration.
Applications
- Label detection in packaging and printing industries
- Object detection in automation and manufacturing processes
- Industrial automation requiring precise ultrasonic sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-efficient operation reduces power consumption in industrial applications
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UFS3-37B117 Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
