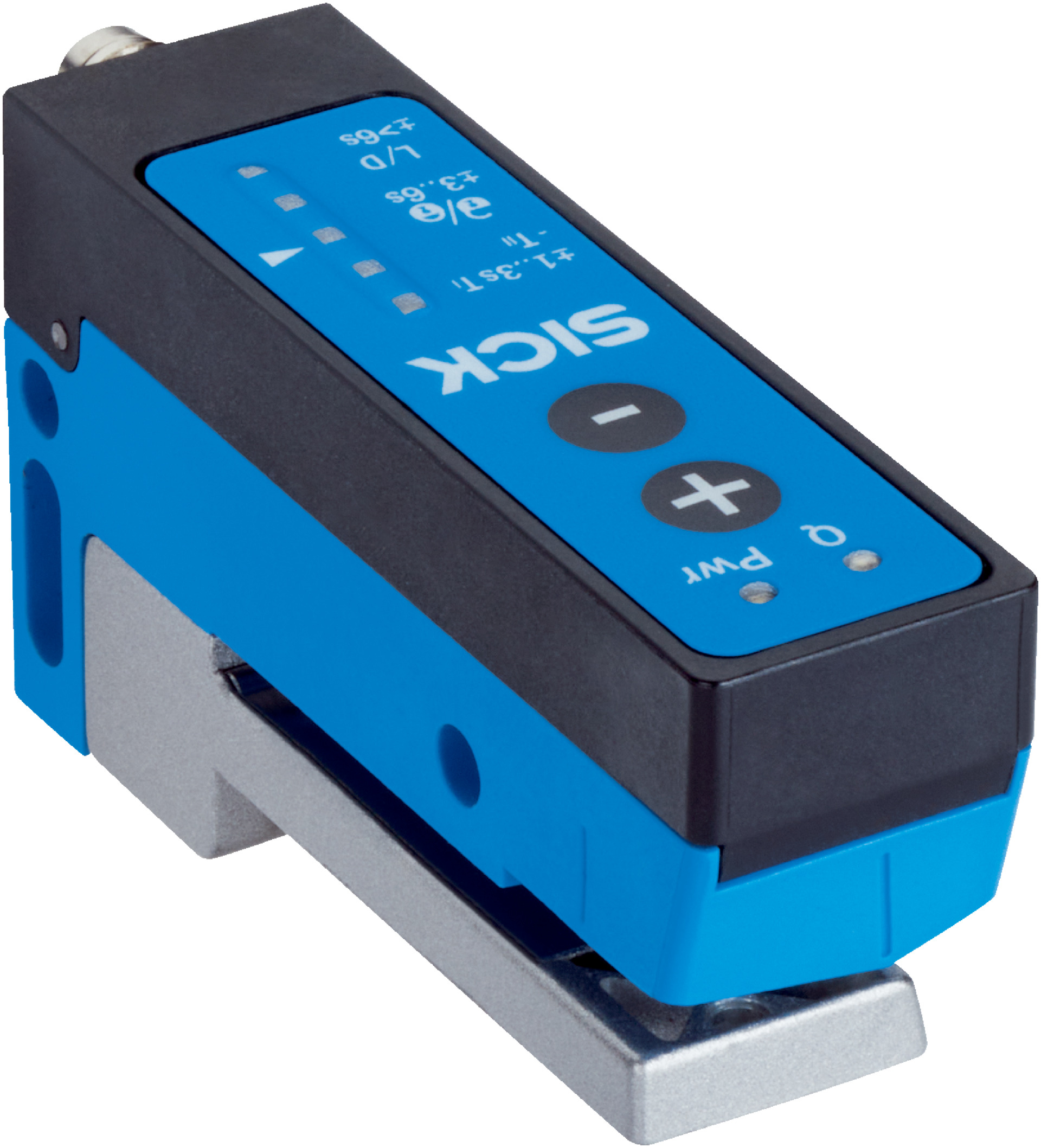

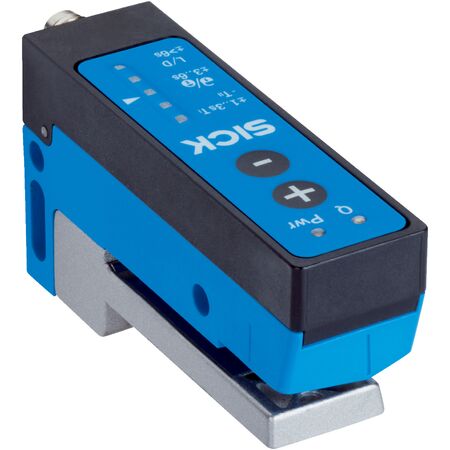

Ultrasonic Fork Sensor UFS3-37B415 | IP65 Rated | 2.6mm Fork Width | IO-Link Interface | by SICK
The Ultrasonic Fork Sensor UFS3-37B415 is designed for precise label detection in industrial automation. With an IP65 rated enclosure, it offers reliable performance in harsh environments. Featuring a 2.6mm fork width and IO-Link V1.1 interface, this sensor is perfect for quality control systems and manufacturing processes, ensuring accurate object detection and efficient operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching frequency: 1.1 kHz
- Response time: ≤ 440 µs
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN
- Enclosure rating: IP65
- Connection type: Male connector M8, 4-pin
- Operating temperature: +5 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- Shock load: According to EN 60068-2-27
- EMC: EN 60947-5-2
- Protection class: III
- Dimensions (H x L x W): 37.4mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Ultrasonic detection principle for reliable sensing
- Fork shaped housing design with 2.6 mm fork width
- Minimum detectable object size: 2 mm label with 1 mm gap
- Adjustable via plus/minus button and cable with Teach-in modes
- IO-Link V1.1 interface with 230.4 kBaud data transmission rate
- Push-pull PNP/NPN switching output with light/dark switching
- IP65 rated enclosure for protection against dust and water
- LED indicators for power and switching output status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for label detection
- Object detection in manufacturing processes
- Quality control systems requiring precise ultrasonic sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation reduces power consumption in industrial settings
- Durable housing extends product life, reducing waste
- Supports smart automation to optimize resource use and reduce material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UFS3-37B415 Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
