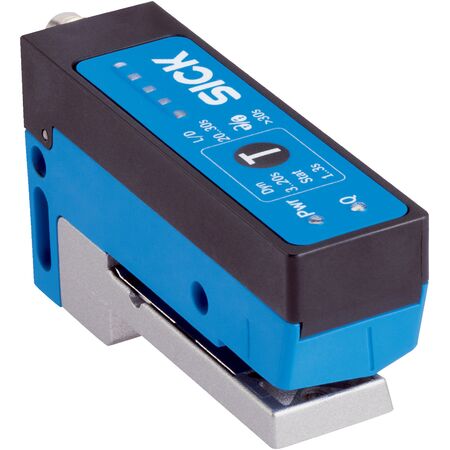

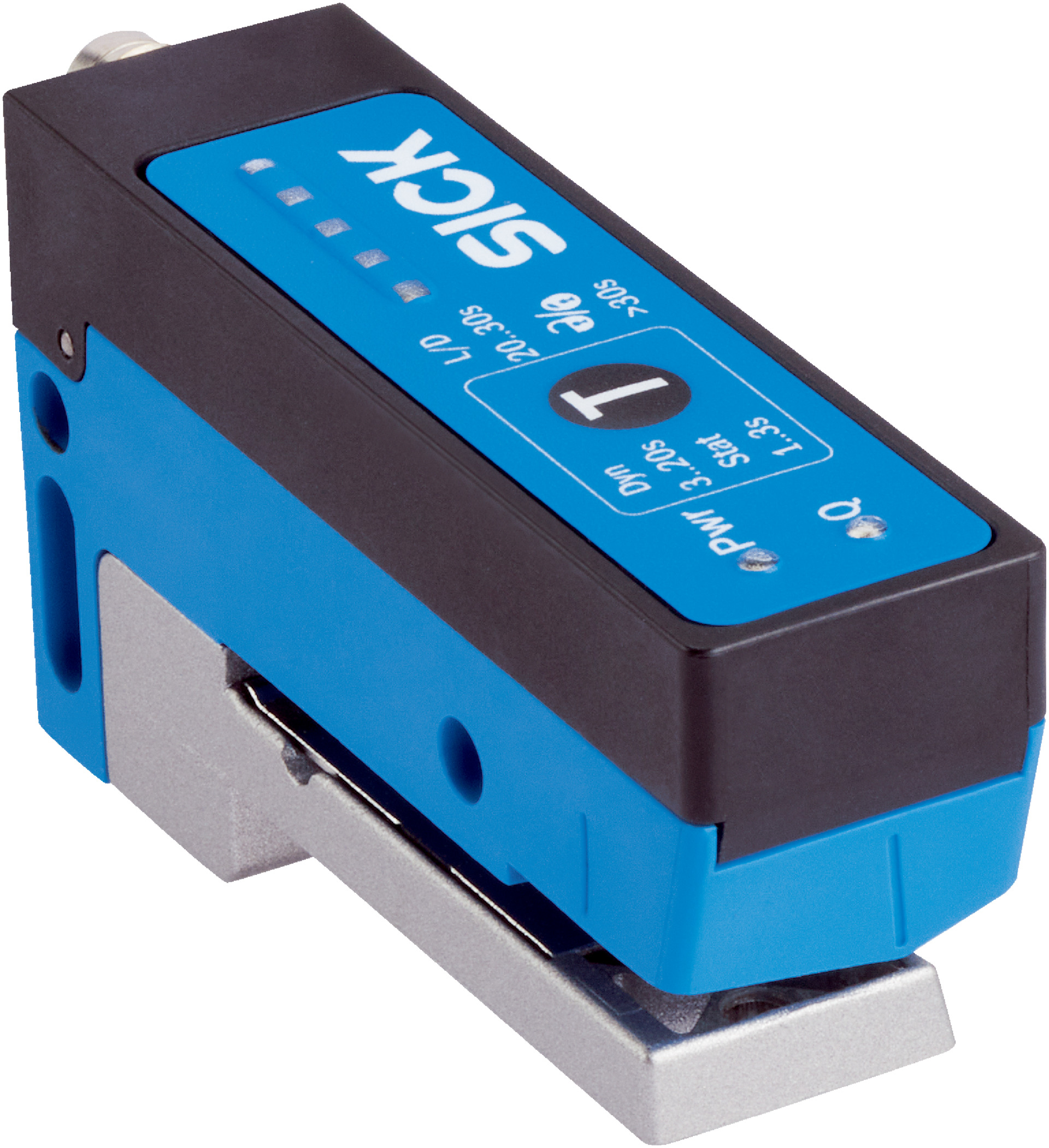

Ultrasonic Fork Sensor UFS3-37B417 | IP65 Rated | 1.1 kHz Switching Frequency | Fast Response Time | by SICK
The Ultrasonic Fork Sensor UFS3-37B417 is designed for precise label detection and object sensing in industrial automation. With a robust IP65 enclosure, it operates efficiently with a high switching frequency of 1.1 kHz and a fast response time of ≤ 440 µs. Ideal for packaging and quality control applications, this sensor features multiple teach-in modes and an IO-Link interface for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching frequency: 1.1 kHz
- Response time: ≤ 440 µs
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Enclosure rating: IP65
- Connection type: Male M8, 4-pin connector
- Operating temperature: +5 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- Housing material: Zamak and glass fiber reinforced plastic
- LED indicators: Green for power, yellow for switching output status
- Dimensions (H x L x W): 37.4mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Ultrasonic detection principle for reliable sensing
- Fork shaped housing design with 2.6 mm fork width
- Minimum detectable object size: 2 mm label size with 1 mm label gap
- Multiple teach-in modes: 1-point, 2-point, and dynamic
- IO-Link V1.1 interface with fast data transmission (COM3, 230.4 kBaud)
- Push-pull switching output (PNP/NPN) with light/dark switching
- High switching frequency of 1.1 kHz and fast response time ≤ 440 µs
- Robust IP65 rated enclosure for industrial environments
- LED indicators for power and switching status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Label detection in packaging and labeling machines
- Object detection in industrial automation
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation with low current consumption (50 mA)
- Durable design reduces waste and replacement frequency
- Supports smart automation to optimize resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UFS3-37B417 Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
