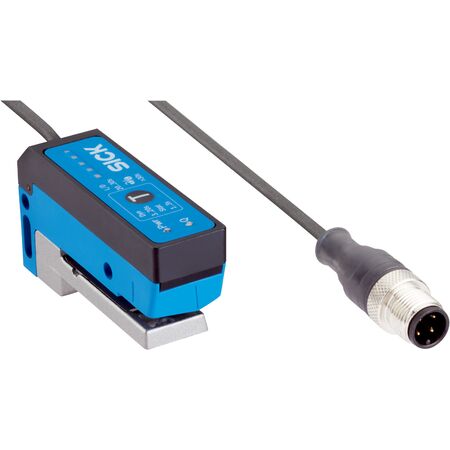

Ultrasonic Fork Sensor UFS3-37B517 | IP65 Rated | 1.1 kHz Switching Frequency | 2.6 mm Fork Width | by SICK
The Ultrasonic Fork Sensor UFS3-37B517 is designed for precise label detection in industrial automation. With an IP65 rating, it offers reliable performance in harsh environments, featuring a high switching frequency of 1.1 kHz and a response time of ≤ 440 µs. Ideal for manufacturing processes and quality control systems, this sensor ensures accurate object detection with multiple teach-in modes for versatile applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching frequency: 1.1 kHz
- Response time: ≤ 440 µs
- Switching output: Push-pull PNP/NPN, max output current 100 mA
- Enclosure rating: IP65
- Operating temperature: +5 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Connection: Cable with M12 male connector, 4-pin, 0.31 m length
- Teach-in modes: 1-point, 2-point, dynamic
- Dimensions (H x L x W): 37mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Ultrasonic detection principle for reliable sensing
- Fork shaped housing design with 2.6 mm fork width
- Minimum detectable object size: 2 mm label with 1 mm gap
- Multiple teach-in modes: 1-point, 2-point, dynamic
- IO-Link V1.1 interface with 4 ms cycle time and 16-bit process data
- Push-pull PNP/NPN switching output with light/dark switching
- High switching frequency of 1.1 kHz and response time ≤ 440 µs
- IP65 rated enclosure for protection against dust and water
- LED indicators for power and switching status
- Cable with M12 male connector, 4-pin, 0.31 m length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for label detection
- Object detection in manufacturing processes
- Quality control systems requiring precise ultrasonic sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation reduces power consumption in industrial applications
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UFS3-37B517 Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
