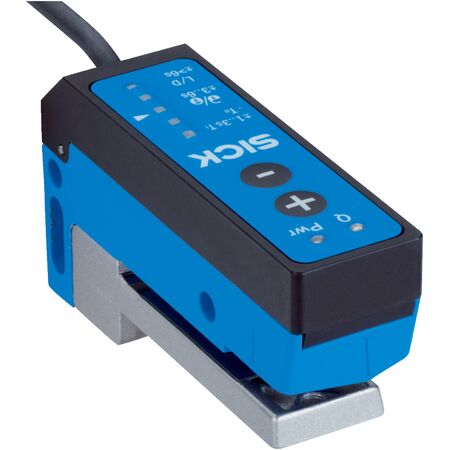

Ultrasonic Fork Sensor UFS3-37N115 | 2.6 mm Fork Width | IP65 Rated | IO-Link Communication | by SICK
The Ultrasonic Fork Sensor UFS3-37N115 features a 2.6 mm fork width and reliable ultrasonic detection, making it ideal for industrial automation and label detection applications. With an IP65 rated enclosure and IO-Link V1.1 communication, this sensor ensures robust performance in challenging environments, perfect for material handling and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Detection principle: Ultrasonic
- Fork width: 2.6 mm
- Minimum detectable object: Label size 2 mm, label gap 1 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching frequency: 1.1 kHz
- Response time: ≤ 440 µs
- Switching output: NPN, max output current 100 mA
- Enclosure rating: IP65
- Connection: 4-wire cable, 2 m length, Ø 3.5 mm PVC
- Communication: IO-Link V1.1, COM3 (230.4 kBaud), 4 ms cycle time
- Operating temperature: +5 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- Housing material: Zamak and glass fiber reinforced plastic
- Dimensions (H x L x W): 37mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Ultrasonic detection principle for reliable sensing
- Fork shaped housing design with 2.6 mm fork width
- Adjustable sensitivity and teach-in modes (1-point, 2-point, dynamic)
- IO-Link V1.1 communication with 4 ms cycle time
- NPN switching output with light/dark switching mode
- IP65 rated enclosure for protection against dust and water
- LED indicators for power and switching status
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection
- Label detection in packaging and manufacturing
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact ultrasonic sensing reduces wear and tear, extending product life
- Energy-efficient operation with low current consumption (50 mA)
- Robust design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK UFS3-37N115 Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
