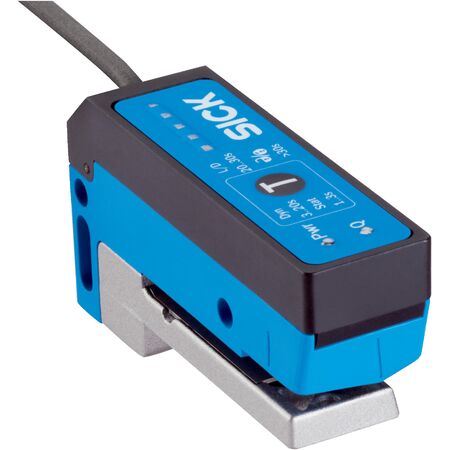

Ultrasonic Fork Sensor UFS3-37N117 | IP65 Rated | NPN Output | IO-Link Communication | by SICK
The Ultrasonic Fork Sensor UFS3-37N117 is designed for reliable label detection and object sensing in industrial automation. With an IP65 rated enclosure, it ensures protection against dust and water, making it ideal for harsh environments. Featuring IO-Link communication for optimized process control and a teach-in button for sensitivity adjustments, this sensor is perfect for quality control and process monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching frequency: 1.1 kHz
- Response time: ≤ 440 µs
- Switching output: NPN, max output current 100 mA
- Enclosure rating: IP65
- Operating temperature: +5 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- Cable: 4-wire, 2 m length, PVC material, 3.5 mm diameter
- Communication: IO-Link V1.1, COM3 (230.4 kBaud), 4 ms cycle time
- Dimensions (H x L x W): 37mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Ultrasonic detection principle for reliable sensing
- Fork shaped housing design with 2.6 mm fork width
- Teach-in button and cable for sensitivity and switching adjustments
- IO-Link V1.1 communication with 4 ms cycle time
- NPN switching output with light/dark switching mode
- IP65 rated enclosure for protection against dust and water
- LED indicators for power and switching status
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration, especially for IO-Link integration.
Applications
- Label detection in packaging and labeling machines
- Object detection in industrial automation
- Quality control and process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low current consumption (50 mA)
- Durable housing reduces waste and replacement frequency
- Supports smart communication via IO-Link for optimized process control
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK UFS3-37N117 Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
