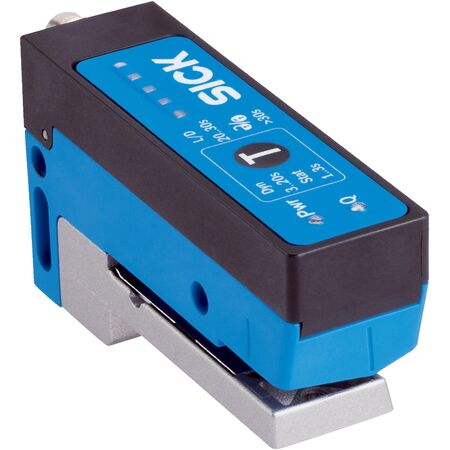

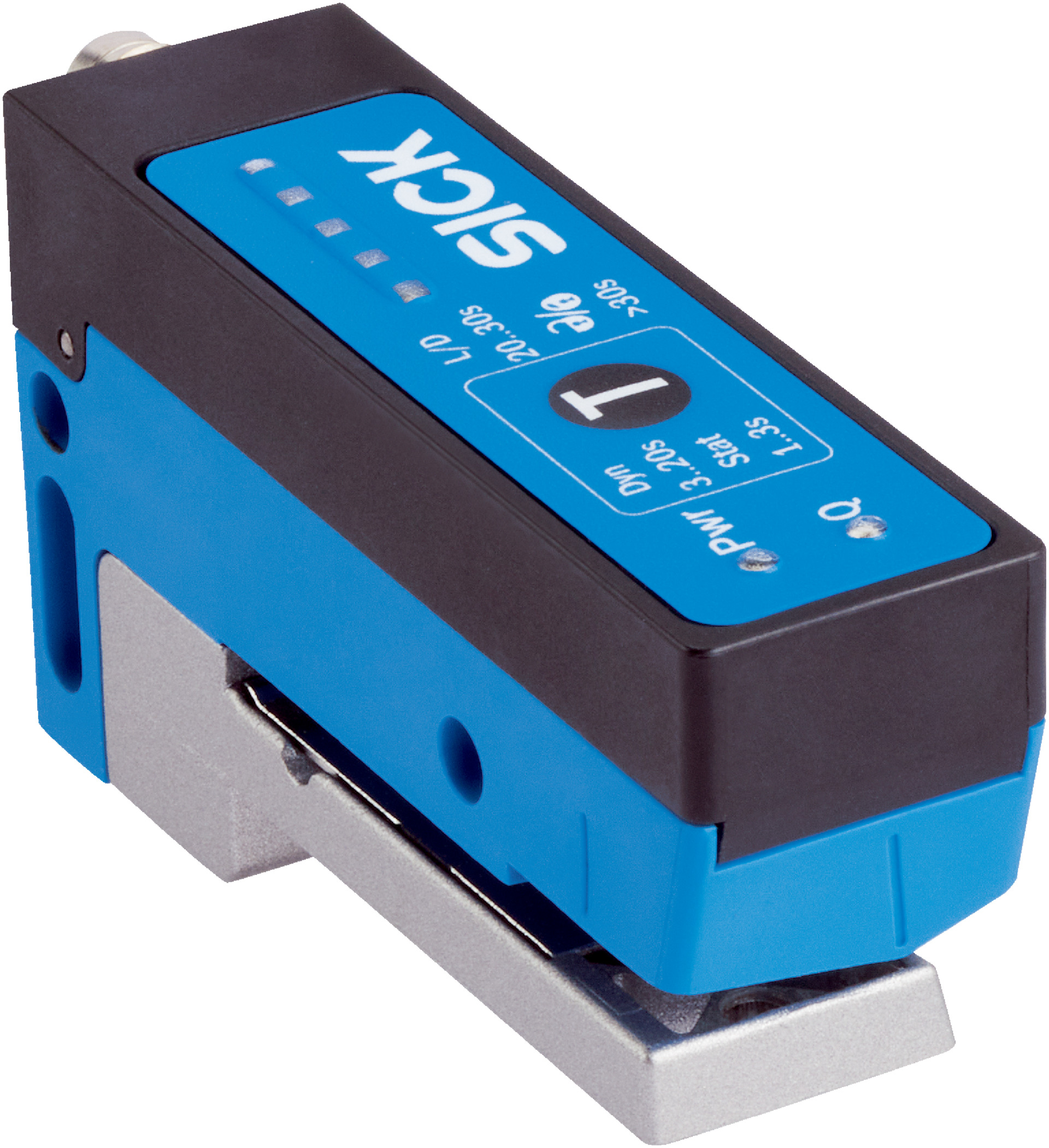

Ultrasonic Fork Sensor UFS3-37N417 | IP65 Rated | NPN Output | 2.6mm Fork Width | by SICK
The Ultrasonic Fork Sensor UFS3-37N417 is designed for precise label detection in packaging and industrial automation. With an IP65 rated enclosure, it ensures reliable performance in challenging environments. Featuring a 2.6mm fork width and NPN output, this sensor is perfect for quality control and inspection systems, providing robust sensing capabilities with minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching frequency: 1.1 kHz
- Response time: ≤ 440 µs
- Jitter: 40 µs
- Switching output: NPN, max output current 100 mA
- Teach-in modes: 1-point, 2-point, dynamic
- Connection type: Male M8, 4-pin connector
- Enclosure rating: IP65
- Operating temperature: +5 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- Shock load: According to EN 60068-2-27
- EMC: EN 60947-5-2
- Protection class: III
- Dimensions (H x L x W): 37.4mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Ultrasonic detection principle for reliable sensing
- Fork shaped housing design with 2.6 mm fork width
- Minimum detectable object size: 2 mm label size with 1 mm label gap
- Teach-in button and cable for sensitivity and switching adjustments
- IO-Link V1.1 communication with 4 ms cycle time
- NPN switching output with light/dark switching mode
- IP65 rated enclosure for protection against dust and water
- LED indicators for power and switching status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic sensors and IO-Link communication protocols to ensure proper setup and safety compliance.
Applications
- Label detection in packaging and labeling machines
- Object detection in industrial automation
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact ultrasonic sensing reduces wear and tear, extending sensor life
- Energy-efficient operation with low current consumption (50 mA)
- Robust IP65 housing minimizes environmental impact by reducing sensor replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UFS3-37N417 Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and packaging line applications.
