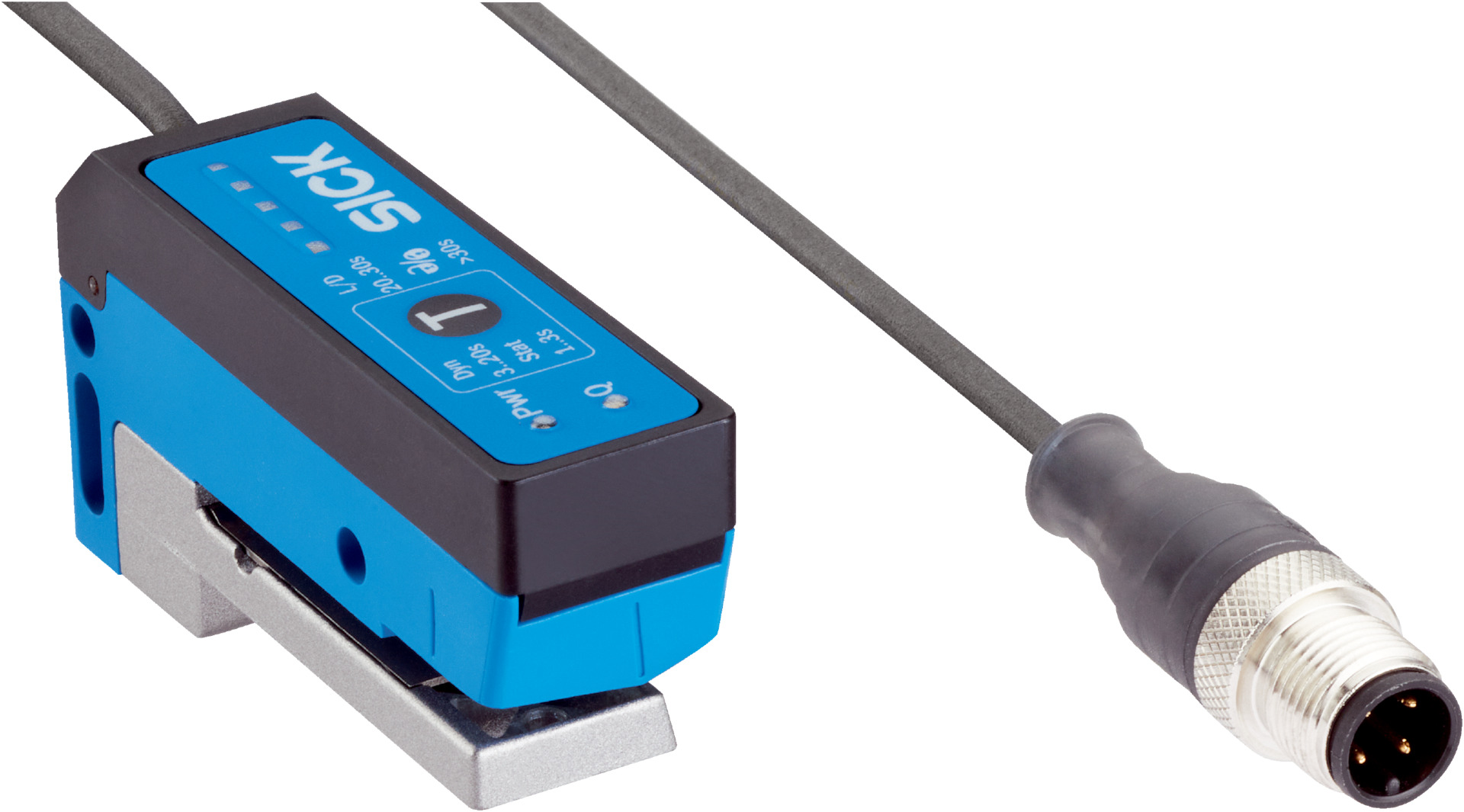

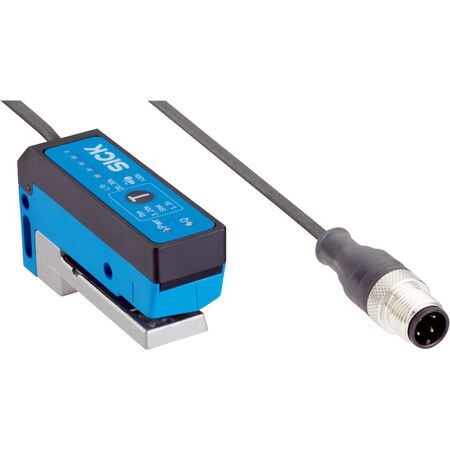

Ultrasonic Fork Sensor UFS3-37N517 | IP65 Rated | NPN Switching Output | 2.6mm Fork Width | by SICK
The Ultrasonic Fork Sensor UFS3-37N517 is designed for reliable label detection in industrial automation, featuring an IP65 rated enclosure and a 2.6mm fork width for precise sensing. With an NPN switching output and a teach-in button for sensitivity adjustments, this sensor is perfect for quality control systems and manufacturing processes, ensuring efficient operation and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching frequency: 1.1 kHz
- Response time: ≤ 440 µs
- Jitter: 40 µs
- Output current max: 100 mA
- Switching output: NPN, light/dark switching
- Initialization time: 100 ms
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP65
- Housing material: Zamak and glass fiber reinforced plastic
- Connection type: Cable with M12 male connector, 4-pin, 0.31 m
- Operating temperature: +5 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- Shock load: According to EN 60068-2-27
- EMC: EN 60947-5-2
- Protection class: III
- Dimensions (H x L x W): 37mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Ultrasonic detection principle for reliable sensing
- Fork shaped housing design with 2.6 mm fork width
- Minimum detectable object size: 2 mm label size with 1 mm label gap
- Teach-in button and cable for sensitivity and switching adjustments
- IO-Link V1.1 interface with 4 ms cycle time and 16 Bit process data length
- NPN switching output with light/dark switching mode
- IP65 rated enclosure for protection against dust and water
- LED indicators for power and switching output status
- Cable with M12 male connector, 4-pin, 0.31 m length
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and configuration.
Applications
- Industrial automation for label detection
- Object detection in manufacturing processes
- Quality control systems requiring precise ultrasonic sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-efficient operation reduces power consumption in industrial applications
- Durable IP65 housing minimizes waste by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UFS3-37N517 Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
