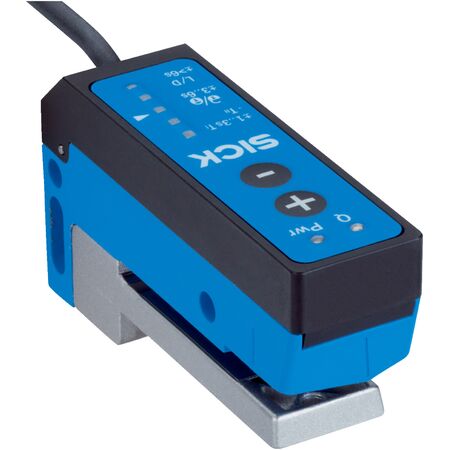

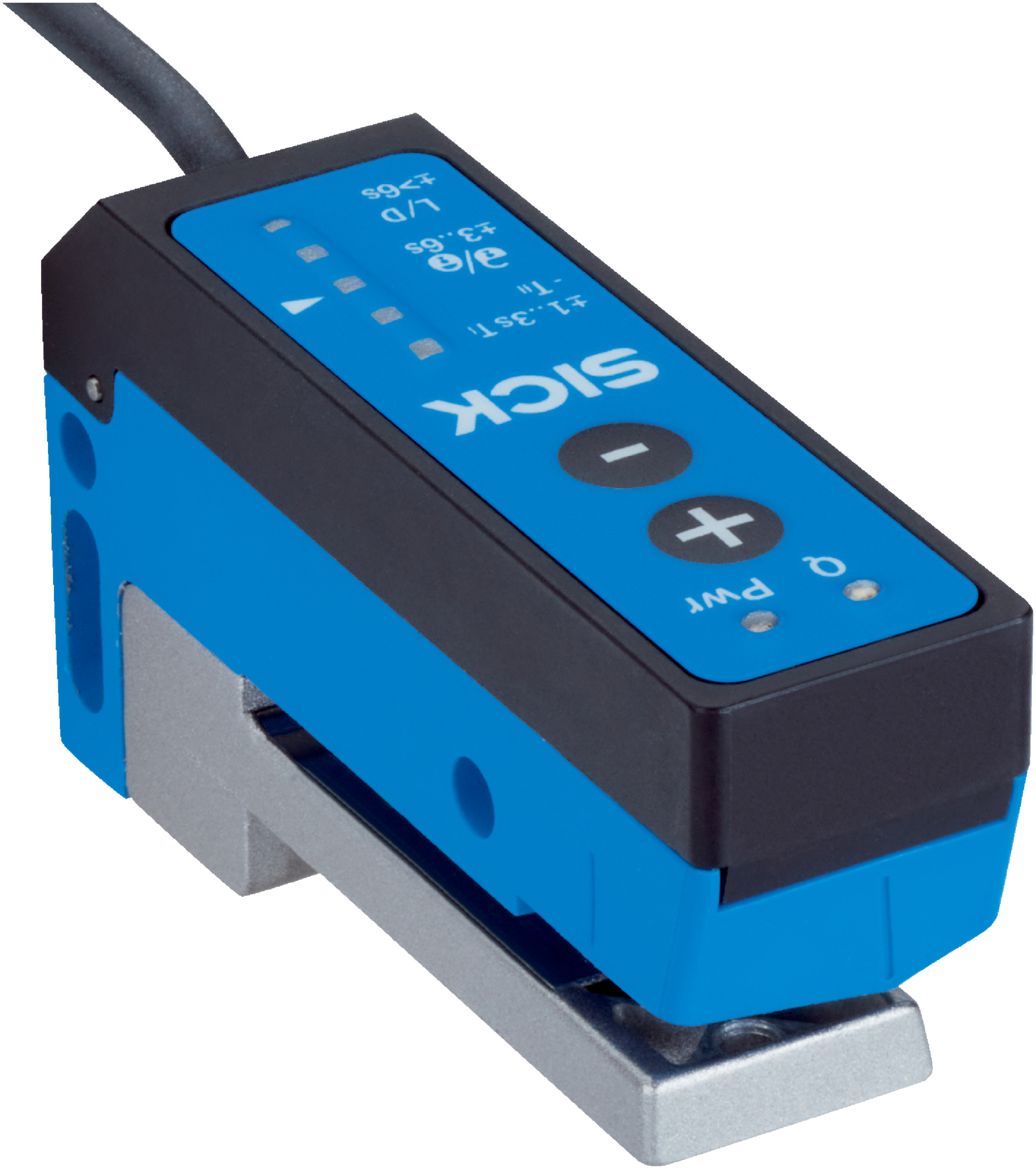

Ultrasonic Fork Sensor UFS3-37P115 | IP65 Rated | 1.1 kHz Switching Frequency | 2 mm Minimum Detectable Size | by SICK
The Ultrasonic Fork Sensor UFS3-37P115 is designed for precise label detection in packaging and printing industries. With an IP65 rated enclosure, it offers reliable performance in harsh environments, featuring a high switching frequency of 1.1 kHz and a minimum detectable object size of just 2 mm. Ideal for industrial automation, this sensor ensures efficient operation and reduces material waste in production processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching frequency: 1.1 kHz
- Response time: ≤ 440 µs
- Switching output: PNP, max output current 100 mA
- Enclosure rating: IP65
- Operating temperature: +5 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- Cable: 4-wire, 2 m length, PVC, diameter 3.5 mm
- Housing material: Zamak and glass fiber reinforced plastic
- EMC compliant to EN 60947-5-2
- Shock load compliant to EN 60068-2-27
- Dimensions (H x L x W): 37mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Ultrasonic detection principle for reliable sensing
- Fork shaped housing design with 2.6 mm fork width
- Minimum detectable object size: 2 mm label size with 1 mm label gap
- Adjustable via plus/minus button and cable with teach-in modes
- IO-Link V1.1 interface with 230.4 kBaud data transmission rate
- High switching frequency of 1.1 kHz and response time ≤ 440 µs
- PNP switching output with light/dark switching mode
- IP65 rated enclosure for protection against dust and water
- Cable open end, 4-wire, 2 m length with PVC material
- LED indicators for power and switching output status
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and IO-Link configuration.
Applications
- Label detection in packaging and printing industries
- Object detection in automation and manufacturing processes
- Industrial automation requiring precise ultrasonic sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-efficient operation with low current consumption of 50 mA
- Durable housing reduces waste and extends product lifecycle
- Supports precise detection reducing material waste in production
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UFS3-37P115 Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
