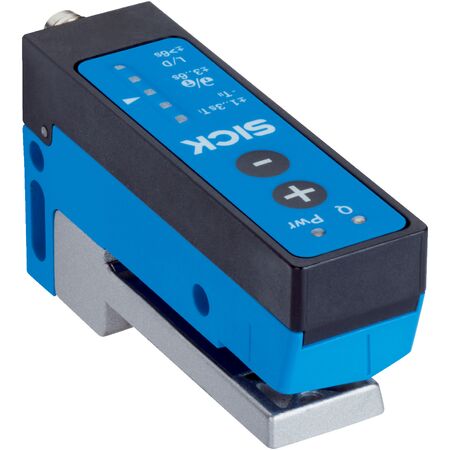

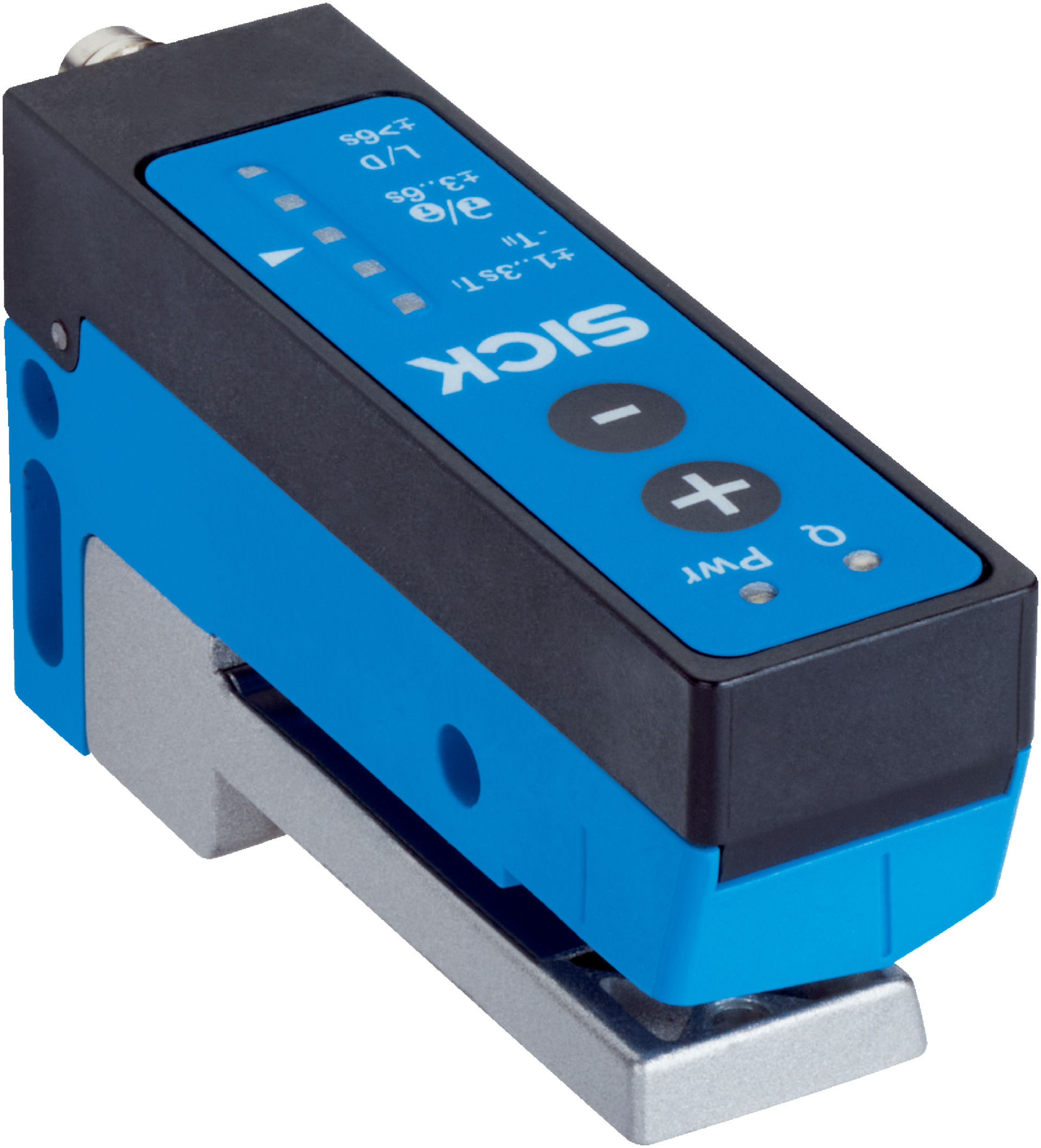

Ultrasonic Fork Sensor UFS3-37P415 | IP65 Rated | Fast Response Time | Adjustable Sensitivity | by SICK
The Ultrasonic Fork Sensor UFS3-37P415 is designed for reliable label detection and object sensing in industrial automation. With an IP65 rated enclosure, adjustable sensitivity, and a fast response time of ≤ 440 µs, it ensures optimal performance in various applications. Ideal for packaging and quality control, this sensor features IO-Link communication for seamless integration into your systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching output: PNP, max output current 100 mA
- Switching frequency: 1.1 kHz
- Response time: ≤ 440 µs
- Enclosure rating: IP65
- Connection type: Male M8, 4-pin connector
- Operating temperature: +5 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- Housing material: Zamak and glass fiber reinforced plastic
- Weight: Approx. 100 g
- Communication: IO-Link V1.1, COM3 (230.4 kBaud)
- Dimensions (H x L x W): 37.4mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Ultrasonic detection principle for reliable sensing
- Fork shaped housing design with 2.6 mm fork width
- Adjustable sensitivity and teach-in modes (1-point, 2-point, dynamic)
- IO-Link V1.1 communication with 230.4 kBaud data rate
- High switching frequency of 1.1 kHz and fast response time ≤ 440 µs
- IP65 rated enclosure for protection against dust and water
- LED indicators for power and switching output status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration, especially for IO-Link integration.
Applications
- Label detection in packaging and labeling machines
- Object detection in industrial automation
- Quality control in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UFS3-37P415 Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
