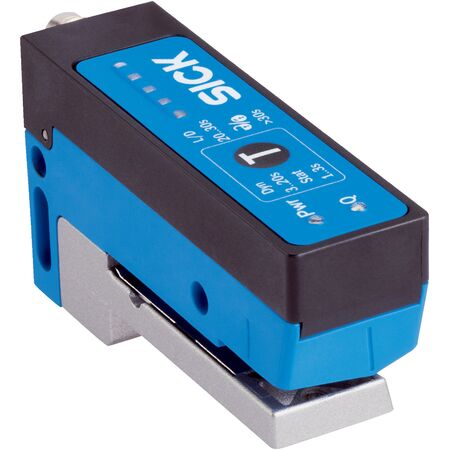

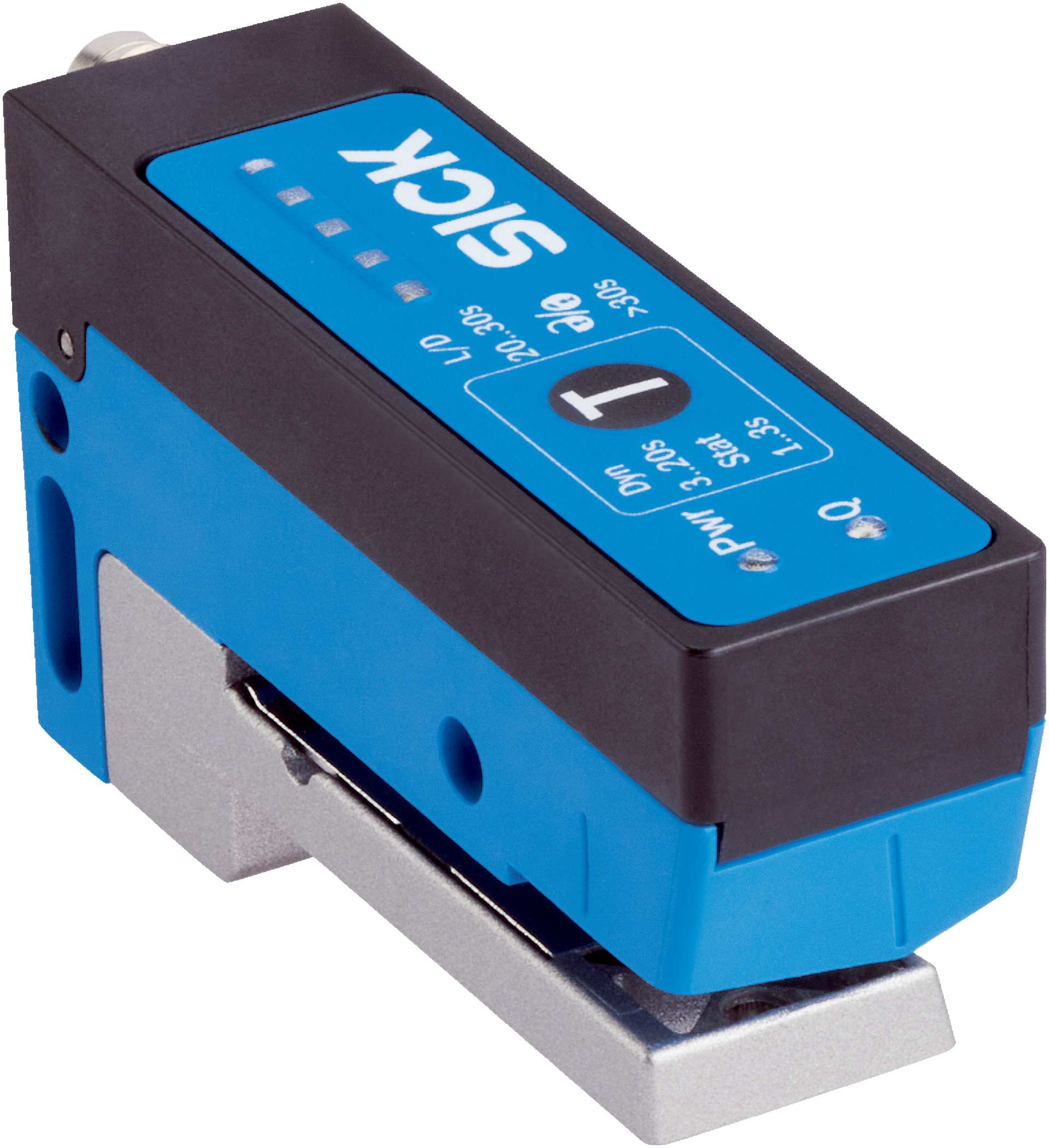

Ultrasonic Fork Sensor UFS3-37P417 | IP65 Rated | Fast Response Time | PNP Output | by SICK
The Ultrasonic Fork Sensor UFS3-37P417 is designed for reliable label detection and object sensing in industrial automation. With an IP65 rating, it offers protection against dust and water, while its fast response time of ≤ 440 µs and high switching frequency of 1.1 kHz ensure precise operation. Ideal for packaging and quality control applications, this sensor features multiple teach-in modes and an IO-Link interface for seamless integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching frequency: 1.1 kHz
- Response time: ≤ 440 µs
- Switching output: PNP, max output current 100 mA
- Enclosure rating: IP65
- Housing material: Zamak and glass fiber reinforced plastic
- Connection type: Male M8, 4-pin connector
- Operating temperature range: +5 °C to +55 °C
- Storage temperature range: -20 °C to +70 °C
- EMC compliant to EN 60947-5-2
- Shock load compliant to EN 60068-2-27
- Dimensions (H x L x W): 37.4mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Ultrasonic detection principle for reliable sensing
- Fork shaped housing design with 2.6 mm fork width
- Minimum detectable object size: 2 mm label size with 1 mm label gap
- Multiple teach-in modes: 1-point, 2-point, and dynamic
- IO-Link V1.1 interface with 4 ms cycle time and 16-bit process data
- High switching frequency of 1.1 kHz and fast response time ≤ 440 µs
- PNP switching output with light/dark switching mode
- IP65 rated enclosure for protection against dust and water
- LED indicators for power and switching output status
- Reverse polarity and short-circuit protected circuitry
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper operation and safety.
Applications
- Label detection in packaging and labeling machines
- Object detection in industrial automation
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact ultrasonic sensing reduces wear and tear, extending product life
- Energy-efficient operation with low current consumption (50 mA)
- Robust design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UFS3-37P417 Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
