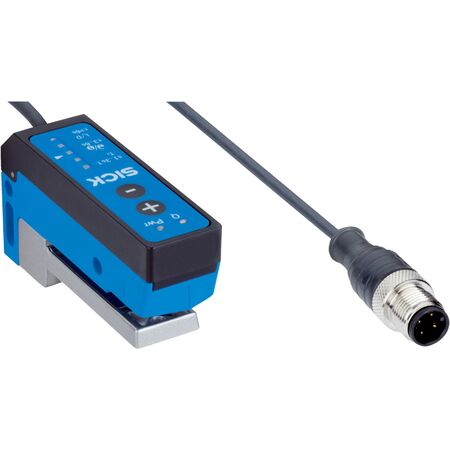

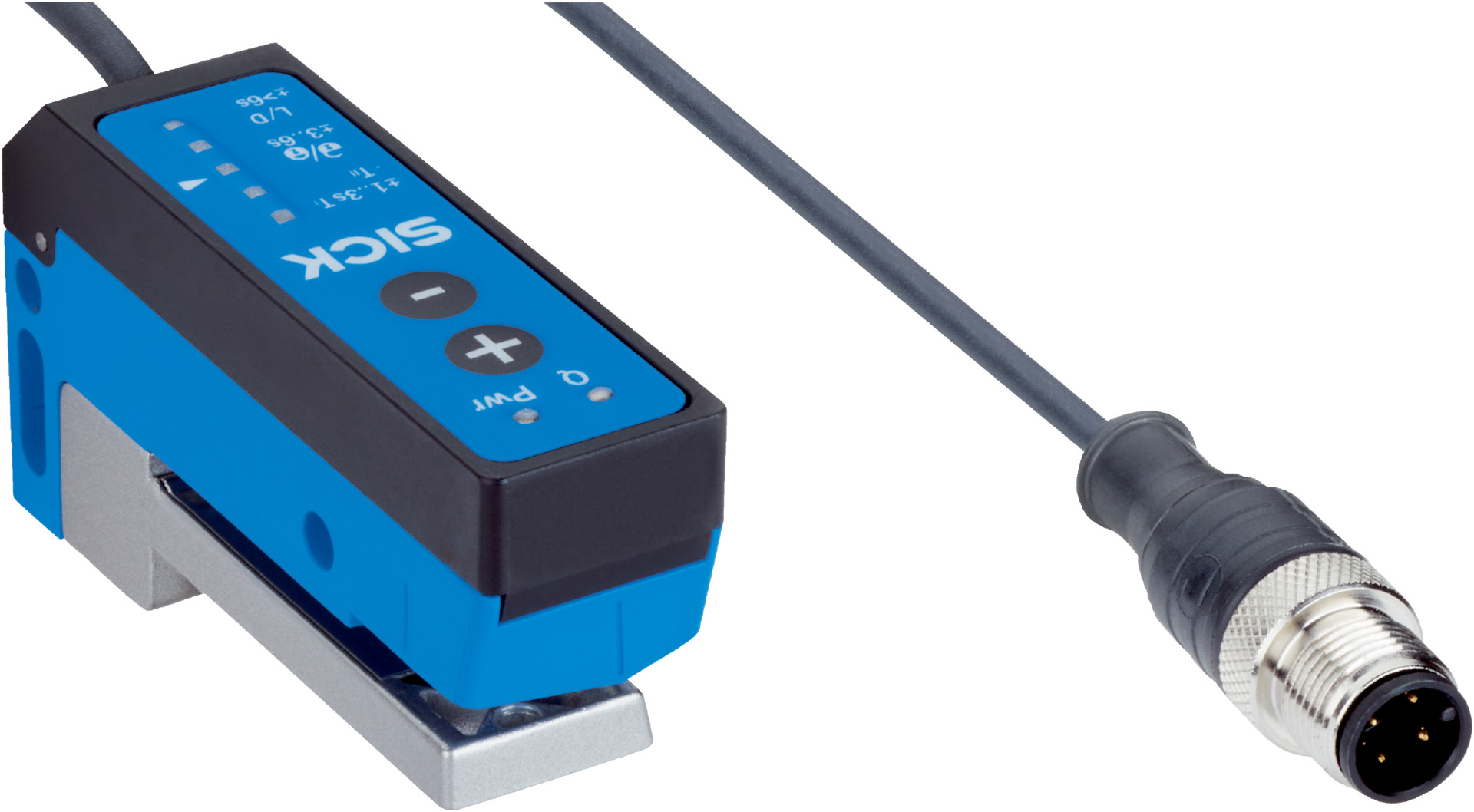

Ultrasonic Fork Sensor UFS3-37P515 | IP65 Rated | 2.6mm Fork Width | PNP Switching Output | by SICK
The Ultrasonic Fork Sensor UFS3-37P515 is designed for reliable label detection in industrial automation. With an IP65 rating, it offers protection against dust and water, making it ideal for manufacturing processes. Featuring a fork-shaped housing with a 2.6mm width and PNP switching output, this sensor ensures precise object detection and quality control in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching frequency: 1.1 kHz
- Response time: ≤ 440 µs
- Jitter: 40 µs
- Output current max: 100 mA
- Switching output: PNP with light/dark switching
- Initialization time: 100 ms
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP65
- Housing material: Zamak and glass fiber reinforced plastic
- Connection: Cable with M12 male connector, 4-pin, 0.31 m length
- Operating temperature: +5 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- Shock load compliant with EN 60068-2-27
- EMC compliant with EN 60947-5-2
- Protection class: III
- Dimensions (H x L x W): 37.4mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Ultrasonic detection principle for reliable sensing
- Fork shaped housing design with 2.6 mm fork width
- Minimum detectable object size: 2 mm label size with 1 mm label gap
- Adjustable via plus/minus button and cable for Teach-in, sensitivity, and light/dark switching
- Supports 1-point, 2-point, and dynamic Teach-in modes
- IO-Link V1.1 interface with 230.4 kBaud data transmission rate and 4 ms cycle time
- PNP switching output with light/dark switching mode
- IP65 rated enclosure for protection against dust and water
- LED indicators for power and switching output status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor calibration.
Applications
- Industrial automation for label detection
- Object detection in manufacturing processes
- Quality control systems requiring precise ultrasonic sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation reduces power consumption in industrial applications
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UFS3-37P515 Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
