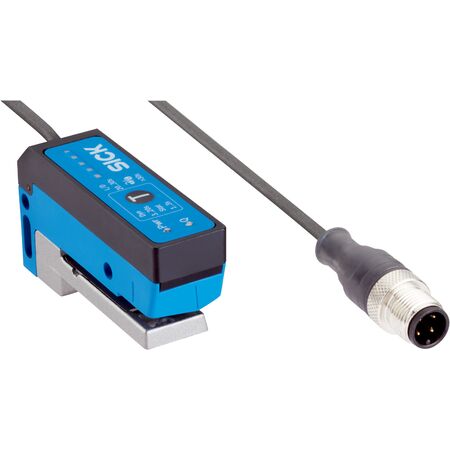

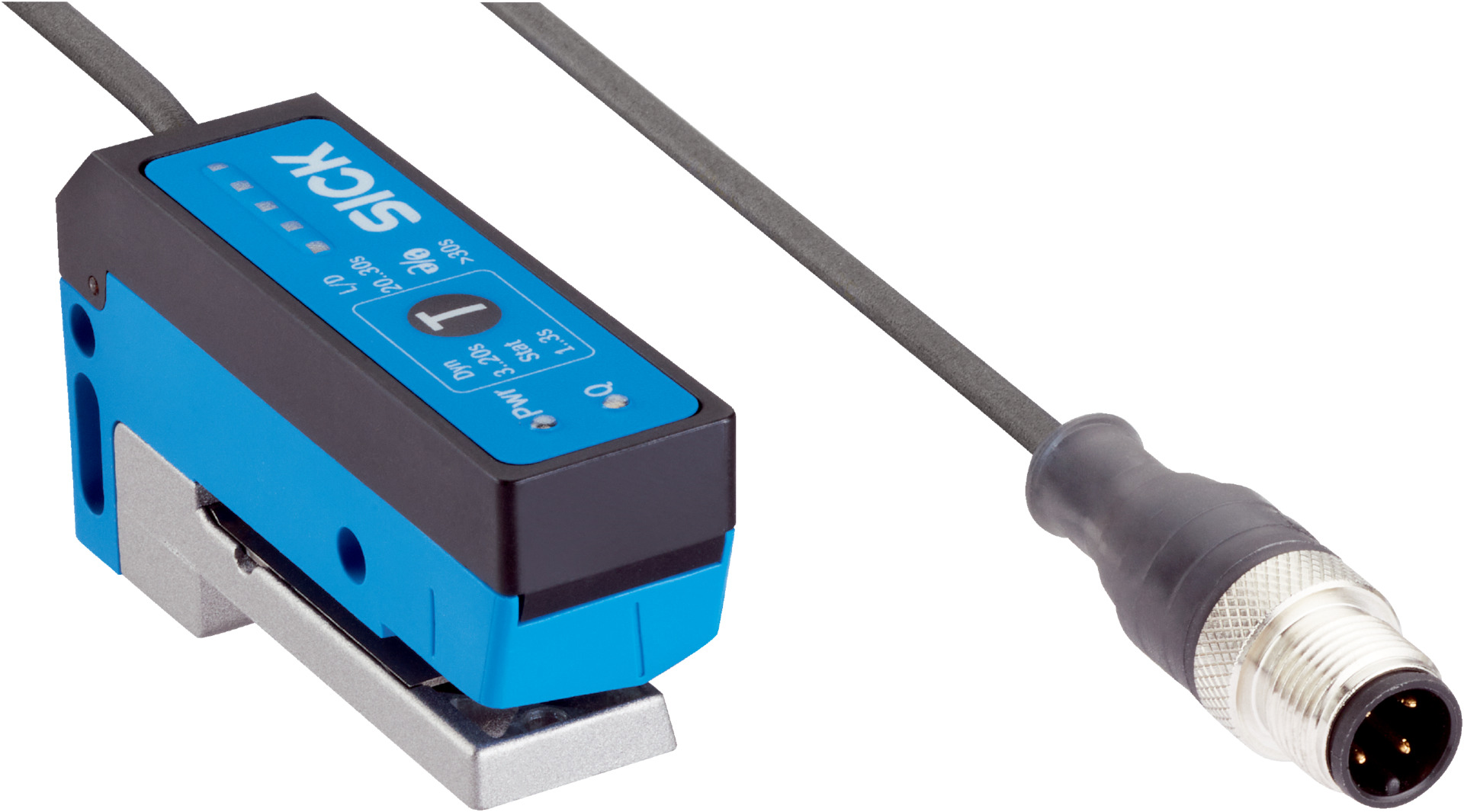

Ultrasonic Fork Sensor UFS3-37P517 | IP65 Rated | Fast Response Time | IO-Link Communication | by SICK
The Ultrasonic Fork Sensor UFS3-37P517 is designed for reliable label detection and object sensing in industrial automation. With an IP65 rating, it offers protection against dust and water, while its fast response time of ≤ 440 µs and high switching frequency of 1.1 kHz ensure precise operation. Ideal for packaging and quality control applications, this sensor features multiple teach-in modes and PNP switching output for versatile use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching frequency: 1.1 kHz
- Response time: ≤ 440 µs
- Switching output: PNP, max output current 100 mA
- Enclosure rating: IP65
- Communication: IO-Link V1.1, COM3 (230.4 kBaud), 4 ms cycle time
- Housing material: Zamak and glass fiber reinforced plastic
- Operating temperature: +5 °C to +55 °C
- Storage temperature: -20 °C to +70 °C
- Shock load: According to EN 60068-2-27
- EMC: EN 60947-5-2
- Protection class: III
- Dimensions (H x L x W): 37.4mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Ultrasonic detection principle for reliable sensing
- Fork shaped housing design with 2.6 mm fork width
- Minimum detectable object size: 2 mm label size with 1 mm label gap
- Multiple teach-in modes: 1-point, 2-point, and dynamic
- IO-Link V1.1 communication with 4 ms cycle time
- High switching frequency of 1.1 kHz and fast response time ≤ 440 µs
- PNP switching output with light/dark switching mode
- IP65 rated enclosure for protection against dust and water
- LED indicators for power and switching output status
- Cable with M12 male connector, 4-pin, 0.31 m length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic sensors and IO-Link communication protocols to ensure proper setup and safety.
Applications
- Label detection in packaging and labeling machines
- Object detection in industrial automation
- Quality control and inspection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-efficient operation reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK UFS3-37P517 Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and label detection applications.
