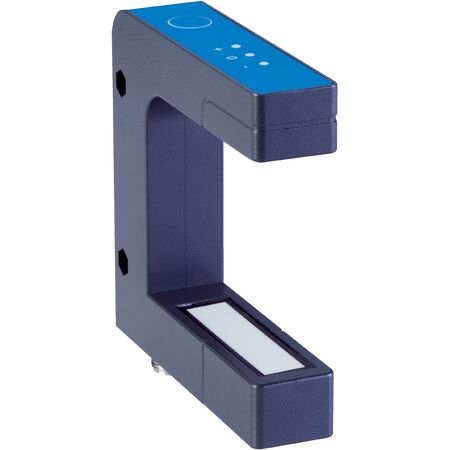

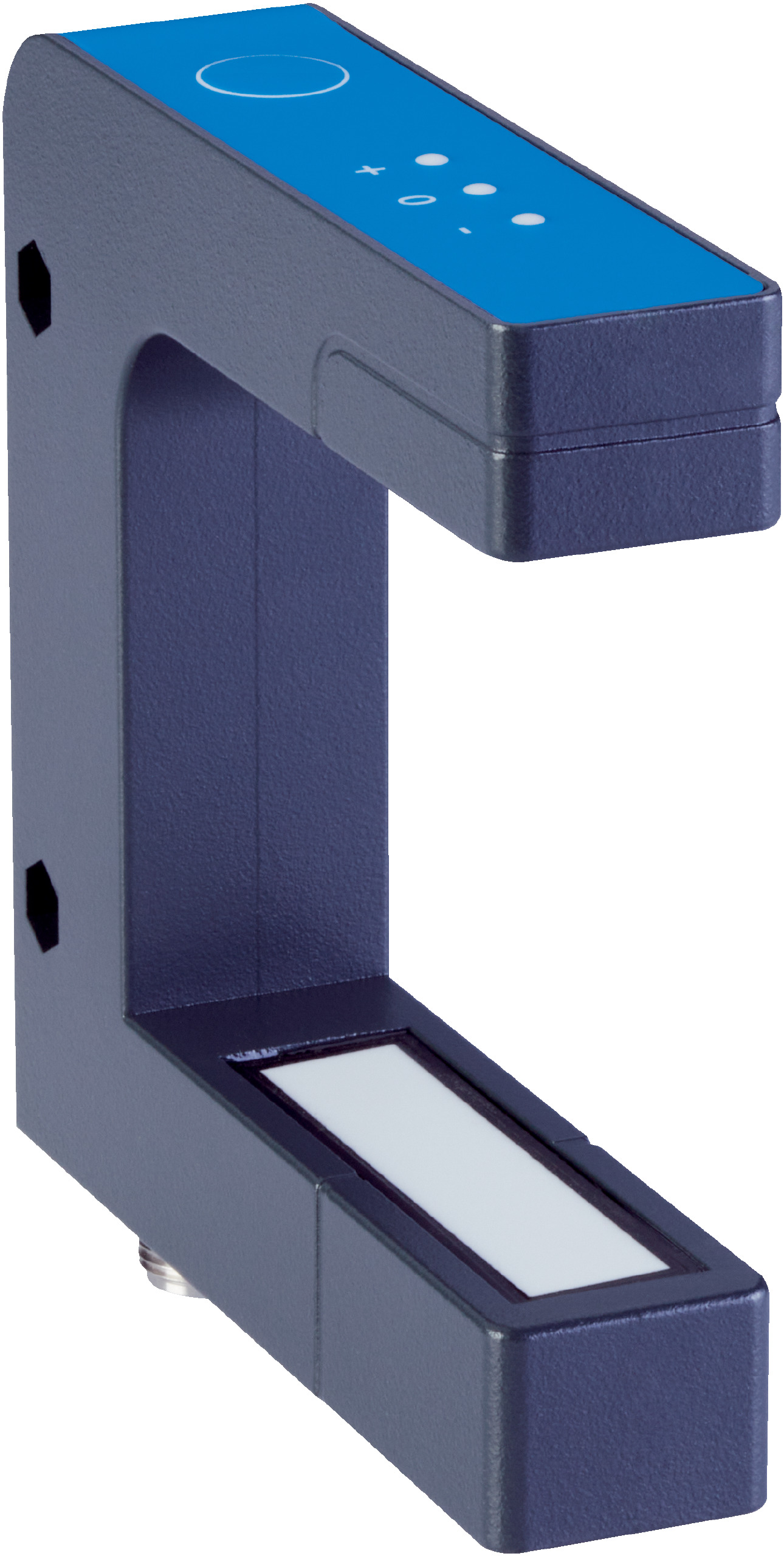

Ultrasonic Fork Sensor UFW6-73B717ZZZ | High Resolution 0.01mm | IP67 Rated | by SICK
The Ultrasonic Fork Sensor UFW6-73B717ZZZ offers precise material edge detection with a high resolution of 0.01mm, making it ideal for industrial automation and quality control applications. With an IP67 rated enclosure, it ensures robust protection against dust and water, while the IO-Link V1.1 interface allows for easy integration into existing systems. Perfect for conveyor systems and manufacturing processes, this sensor is designed for reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 20 V DC to 30 V DC
- Current consumption: 60 mA
- Ultrasonic frequency: 170 kHz
- Response time: 6 ms
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Initialization time: < 300 ms
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast PBT
- Connection type: Plug, M12, 5-pin
- Ambient operating temperature: +5 °C to +60 °C
- Storage temperature: -40 °C to +85 °C
- Shock load: According to EN 60068-2-27
- EMC: EN 60947-5-2
- Protection class: III
- Dimensions (H x L x W): 97mm x 97.5mm x 23.5mm
- Weight: 0.28 kg
Key Features
- Ultrasonic detection principle with high resolution of 0.01 mm
- Fork shaped housing design with 60 mm fork width and 73 mm fork depth
- Detection zone of 40 mm with repeatability of ± 0.1 mm
- Adjustable via teach-in button and cable with one point and two point adjustment
- IO-Link V1.1 interface with COM3 data transmission rate (230.4 kBaud) and 4 ms cycle time
- Analog output current (4 mA to 20 mA) and voltage (0 V to 10 V)
- Push-pull PNP/NPN switching output with max output current of 100 mA
- IP67 rated enclosure for robust protection
- LED indicators for material edge alignment status
- Reverse polarity protected and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration, ensuring proper connection to IO-Link systems and adherence to safety standards.
Applications
- Material edge detection and positioning in industrial automation
- Quality control in manufacturing processes
- Object detection in conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient ultrasonic sensing reduces power consumption
- Durable IP67 housing extends product life and reduces waste
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK UFW6-73B717ZZZ Ultrasonic Fork Sensor is available for immediate purchase, ideal for industrial automation and material detection applications.
