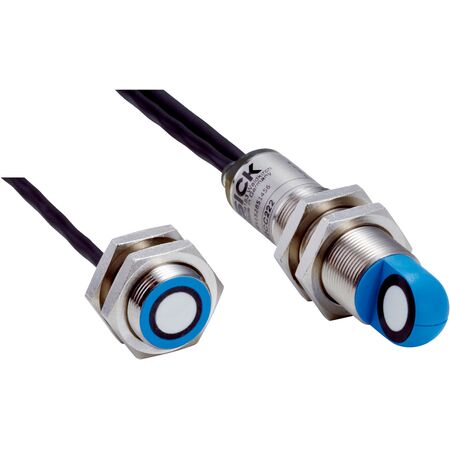

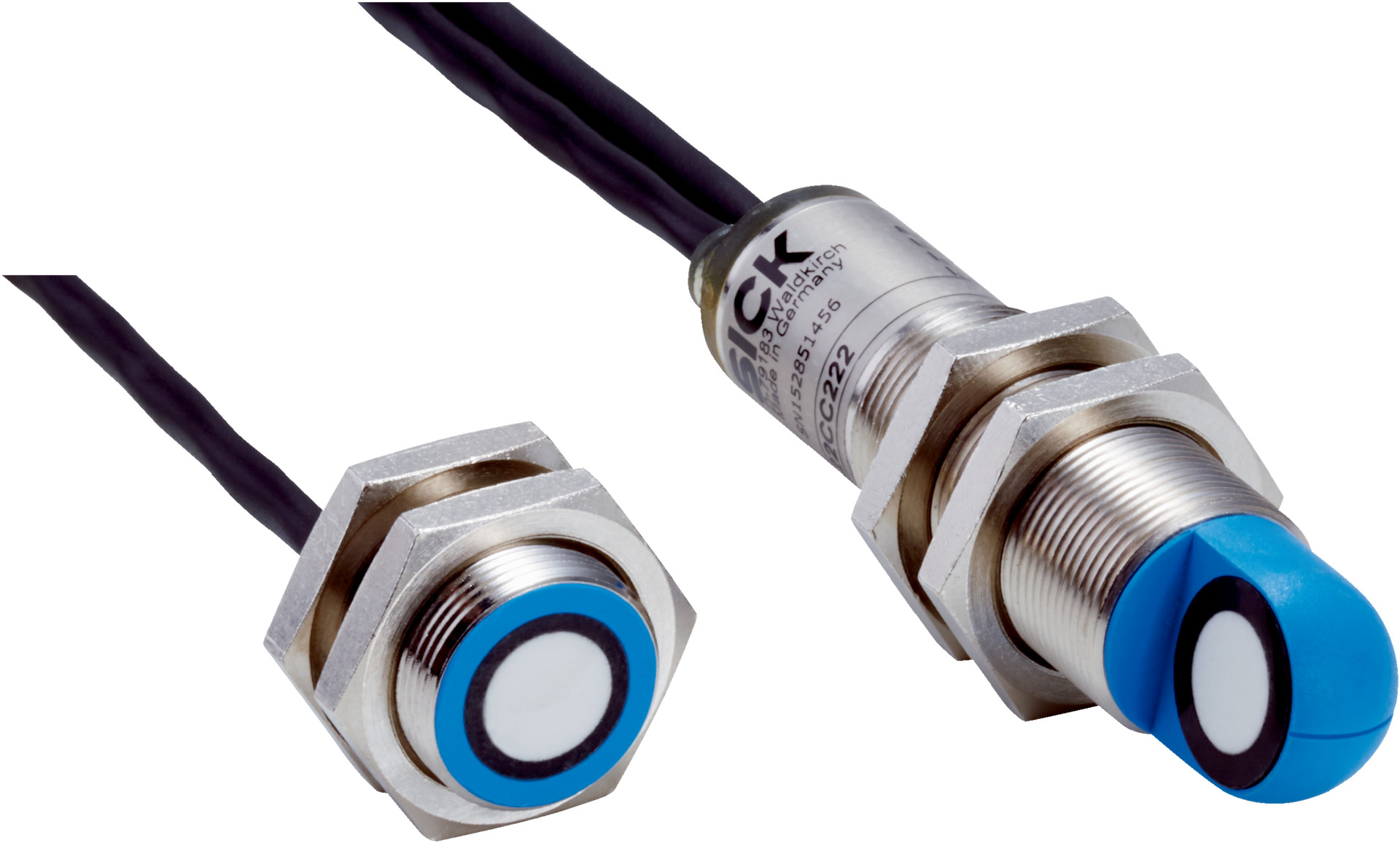

Ultrasonic Layer Sensor UD18-22CC222 | 20mm to 60mm Installation | 2.5ms Response Time | IP65 Rated | by SICK
The Ultrasonic Layer Sensor UD18-22CC222 is designed for precise detection of natural objects, including paper and plastic sheets, with an installation distance of 20mm to 60mm. Featuring a fast response time of 2.5ms and an IP65 rated enclosure, this sensor is perfect for industrial automation and material handling applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Installation distance: 20 mm to 60 mm (default 40 mm ± 3 mm)
- Target: Natural objects including paper (20 g/m² to 2000 g/m²), plastic sheets ≤ 0.4 mm, metal sheets ≤ 0.3 mm, corrugated cardboard
- Resolution: 1 material layer
- Response time: 2.5 ms
- Switching frequency: 250 Hz
- Output time: 2 ms, trigger mode < 0.5 ms
- Ultrasonic frequency: 400 kHz
- Sensitivity: 3 selectable levels, teach-in up to 4 levels
- Blind zone: 7 mm from sender and receiver
- Permissible angle deviation: ± 45°
- Digital outputs: 2 PNP, max current ≤ 200 mA
- Supply voltage: DC 20 V to 30 V
- Power consumption: ≤ 1.5 W
- Initialization time: < 300 ms
- Display: 2 LEDs
- Enclosure rating: IP65
- Protection class: III
- Housing material: Metal (nickel-plated brass, PBT/PA), ultrasonic transducer polyurethane foam, glass epoxy resin
- Thread size: M18 x 1
- Connection: Connection cable with open end 7 x 0.25 mm², 2 m PUR
- Dimensions (H x L x W): 18mm x 79.2mm x 18mm
- Weight: 0.13 kg
Key Features
- Installation distance from 20 mm to 60 mm, default setting at 40 mm ± 3 mm
- Detection resolution of 1 material layer
- Fast response time of 2.5 ms and switching frequency of 250 Hz
- Ultrasonic frequency typically 400 kHz
- 3 selectable sensitivity levels with teach-in for up to 4 individual sensitivity levels
- Sensitivity level changeover during operation
- Set parameters via Connect+ Software
- Blind zone of 7 mm from sender and receiver
- Permissible angle deviation ± 45° perpendicular to material layer
- Digital PNP outputs with max current ≤ 200 mA
- IP65 rated enclosure for protection against dust and water
- Operating temperature range +5 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic sensor setup and electrical wiring according to AS/NZS 3000 standards.
Applications
- Detection of natural objects including paper, plastic sheets, foils, self-adhesive films, metal sheets, corrugated cardboard, Washi Wafer PCB
- Industrial automation requiring precise layer detection
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact detection reduces wear and tear, extending sensor life and reducing waste
- Low power consumption of ≤ 1.5 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UD18-22CC222 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and material detection applications.
