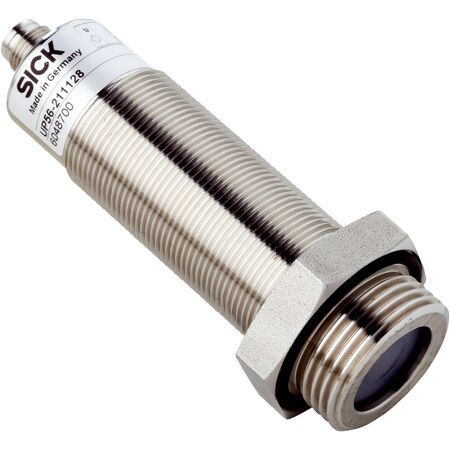

Ultrasonic Level Sensor | 200 mm to 1,300 mm Range | IP67 Rated | High Accuracy | by SICK
The Ultrasonic Level Sensor UP56-213128 is designed for precise measurement of fluid and bulk solid levels, featuring a measurement range of 200 mm to 1,300 mm and an impressive accuracy of ≤ 2%. Ideal for industrial applications, it operates effectively in environments with process pressures up to 6 bar and temperatures from -25°C to +70°C, ensuring reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids, bulk solids
- Measurement type: Switch and continuous
- Measuring range in tank: 200 mm to 1,300 mm
- Measuring range immersion tube: 200 mm to 5,000 mm
- Process pressure: 0 bar to 6 bar
- Process temperature: -25°C to +70°C
- Accuracy: ≤ 2%
- Reproducibility: ± 0.15%
- Resolution: 0.18 mm
- Response time: 180 ms
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: ≤ 80 mA
- Output signal: 1 x PNP + 4 mA to 20 mA / 0 V to 10 V
- Hysteresis: 20 mm
- Output current: 200 mA
- Enclosure rating: IP67
- Ultrasonic frequency: 180 kHz
- Ultrasonic transducer coating: PTFE, FFKM
- Connection type: Round connector M12 x 1, 5-pin
- Housing material: Stainless steel 1.4571
- Dimensions (H x L x W): 120mm x 30mm x 30mm
- Weight: 0.35 kg
Key Features
- Measurement range in tank: 200 mm to 1,300 mm
- Measurement range immersion tube: 200 mm to 5,000 mm
- Process pressure rating up to 6 bar
- Process temperature range from -25°C to +70°C
- High accuracy sensor element with ≤ 2% accuracy
- Reproducibility of ± 0.15%
- Resolution of 0.18 mm
- Response time of 180 ms
- Long mean time to failure (MTTF) greater than 100 years
- Output signals include 1 x PNP and 4 mA to 20 mA / 0 V to 10 V
- Enclosure rated IP67 for protection against dust and water
- Ultrasonic frequency of 180 kHz with PTFE coated FFKM transducer
- Stainless steel 1.4571 housing and wetted parts for durability
- Connection via round M12 x 1, 5-pin connector
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic sensor technology and electrical safety standards to ensure proper setup and compliance.
Applications
- Measurement of fluid and bulk solid levels in tanks and containers
- Industrial process control requiring continuous or switch level measurement
- Suitable for use in environments with process pressures up to 6 bar and temperatures from -25°C to +70°C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact measurement reduces contamination and wear
- Long service life minimizes waste and replacement frequency
- Energy-efficient operation with low power consumption
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK UP56-213128 ultrasonic level sensor is available for immediate purchase, ideal for industrial fluid and bulk solid level measurement applications.
