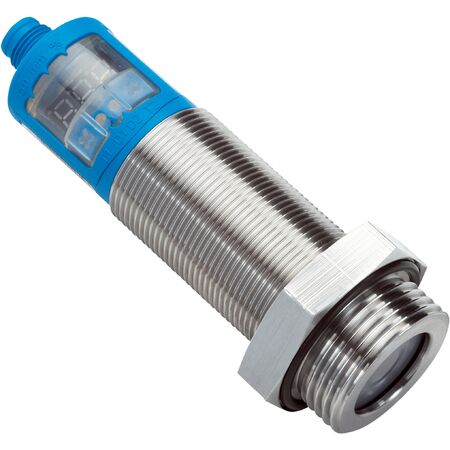

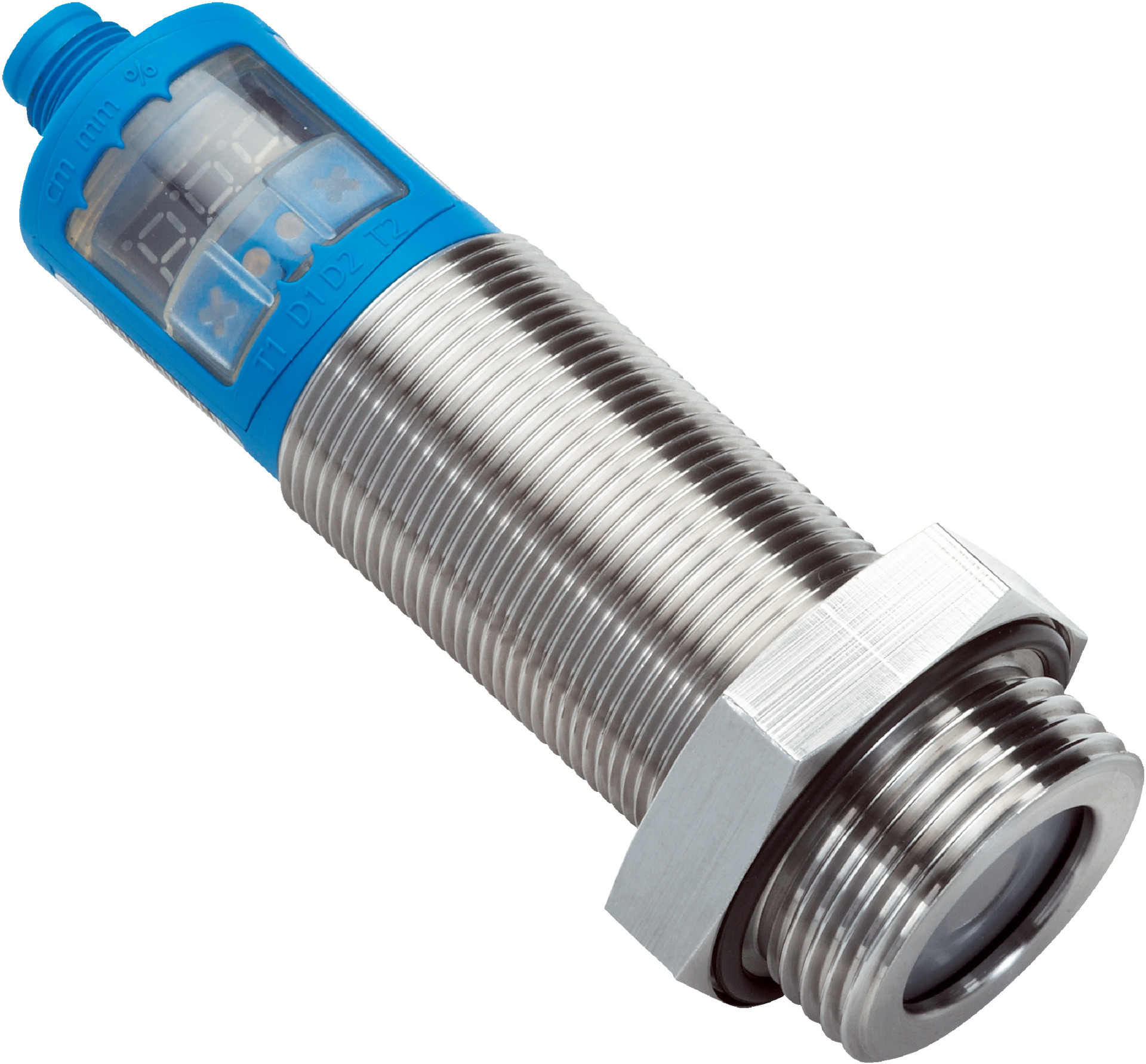

Ultrasonic Level Sensor | 200 mm to 5,000 mm Range | IP67 Rated | High Accuracy | by SICK
The Ultrasonic Level Sensor UP56-213112 is designed for precise measurement of fluids and bulk solids, featuring a measuring range of 200 mm to 5,000 mm and an impressive accuracy of ≤ 2%. Ideal for industrial process control, this sensor operates efficiently in harsh environments with an IP67 protection rating, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range in tank: 200 mm to 1,300 mm
- Measuring range immersion tube: 200 mm to 5,000 mm
- Process pressure: 0 bar to 6 bar
- Process temperature: -25 °C to +70 °C
- Accuracy: ≤ 2%
- Reproducibility: ± 0.15%
- Resolution: 0.18 mm
- Response time: 180 ms
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: ≤ 80 mA
- Output signal: 2 x PNP
- Connection type: Round connector M12 x 1, 5-pin
- Protection class: III
- Enclosure rating: IP67
- Ultrasonic frequency: 180 kHz
- Wetted parts: Stainless steel 1.4571, FFKM
- Housing material: Stainless steel 1.4571, PBT, TPU
- Weight: approximately 210 g
- Dimensions (H x L x W): 120mm x 30mm x 30mm
- Weight: 0.21 kg
Key Features
- Suitable for fluids and bulk solids
- Measurement types: switch and continuous
- Measuring range in tank: 200 mm to 1,300 mm
- Measuring range immersion tube: 200 mm to 5,000 mm
- Process pressure up to 6 bar
- Process temperature range from -25 °C to +70 °C
- Integrated display for easy reading
- High accuracy sensor element with ≤ 2% accuracy
- Reproducibility of ± 0.15%
- Fast response time of 180 ms
- Long mean time to failure (MTTF) over 100 years
- Power supply voltage from 9 V DC to 30 V DC
- Output signal: 2 x PNP
- Protection rating IP67 for harsh environments
- Ultrasonic frequency of 180 kHz
- Robust stainless steel housing and wetted parts
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Measurement of fluids and bulk solids in tanks and containers
- Industrial process control requiring continuous or switch level measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact measurement reduces contamination and wear
- Long service life reduces waste and replacement frequency
- Energy-efficient operation with low power consumption
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK UP56-213112 ultrasonic level sensor is available for immediate purchase, ideal for industrial fluid and bulk solids level measurement applications.
