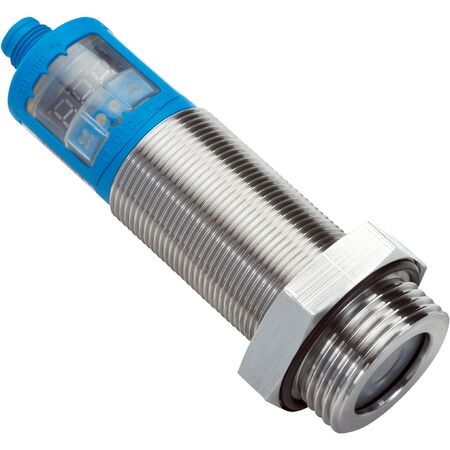

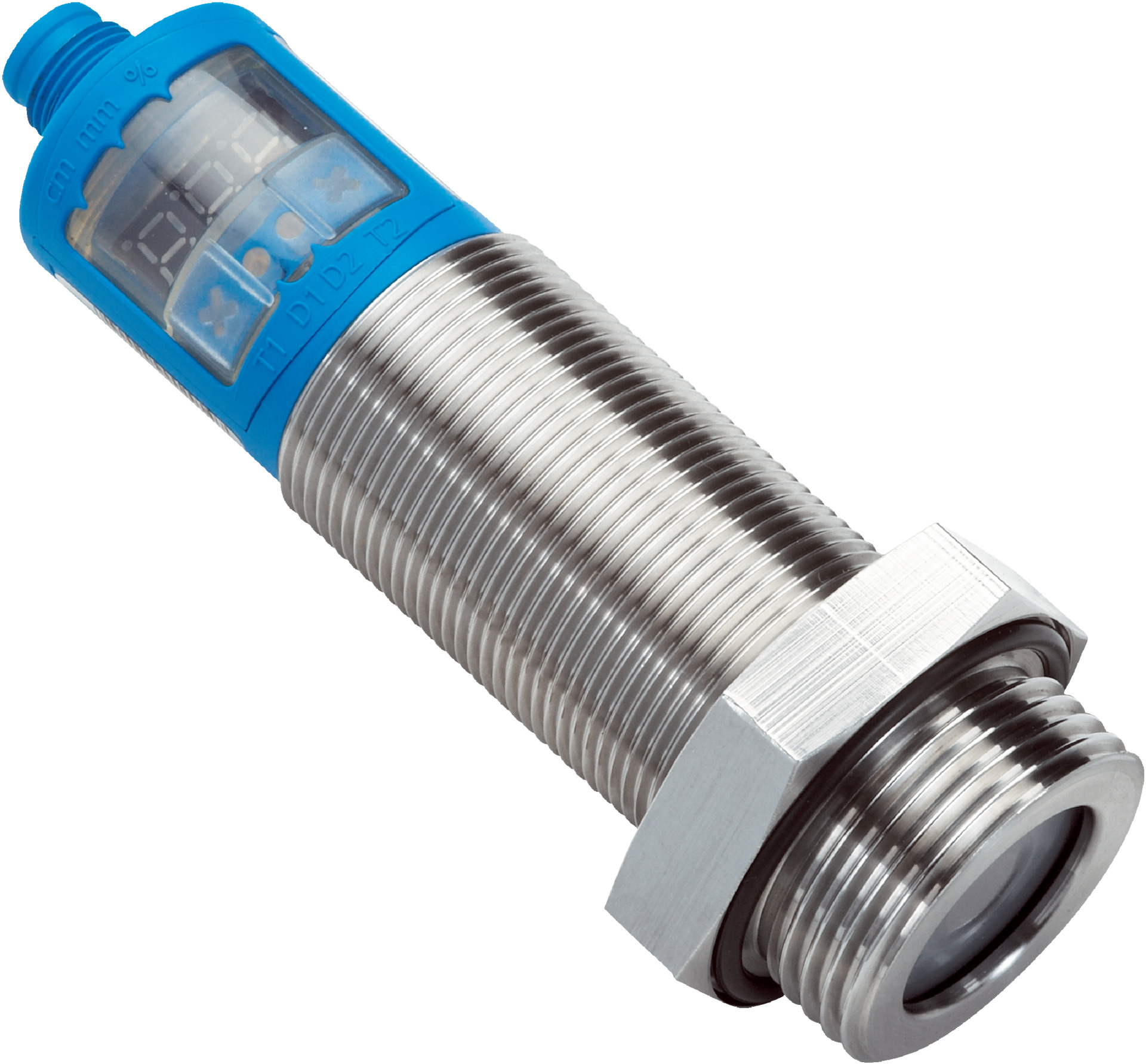

Ultrasonic Level Sensor | 30 mm to 250 mm Measurement Range | IP67 Protection | by SICK
The Ultrasonic Level Sensor UP56-211115 is designed for precise measurement of fluids and bulk solids, featuring a measurement range of 30 mm to 250 mm and a robust IP67 protection class. Ideal for industrial process control, it operates effectively in temperatures from -25°C to +70°C, ensuring high accuracy and long service life with minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids, bulk solids
- Measurement type: Switch and continuous
- Measuring range in tank: 30 mm to 250 mm
- Measuring range immersion tube: 30 mm to 990 mm
- Process pressure: 0 to 6 bar
- Process temperature: -25°C to +70°C
- Accuracy: ≤ 2%
- Reproducibility: ± 0.15%
- Resolution: 0.18 mm
- Response time: 68 ms
- MTTF: > 100 years
- Display: Integrated
- Communication interface: IO-Link 1.1
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: ≤ 80 mA
- Protection class: IP67
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 1 x push-pull IO-Link
- Output current: 200 mA
- Ultrasonic frequency: 320 kHz
- Ultrasonic transducer coating: PTFE, FFKM
- Wetted parts: Stainless steel 1.4571, FFKM
- Process connection: G 1 A
- Housing material: Stainless steel 1.4571, PBT, TPU
- Dimensions (H x L x W): 150mm x 30mm x 30mm
- Weight: 0.21 kg
Key Features
- Measurement range in tank: 30 mm to 250 mm
- Measurement range immersion tube: 30 mm to 990 mm
- Process pressure rating up to 6 bar
- Process temperature range from -25°C to +70°C
- High accuracy sensor element with ≤ 2% accuracy
- Reproducibility of ± 0.15%
- Resolution of 0.18 mm
- Fast response time of 68 ms
- Long mean time to failure (MTTF) greater than 100 years
- Equipped with display for easy monitoring
- Communication via IO-Link 1.1 for process data, diagnostics, and parameterization
- Power supply voltage from 9 V DC to 30 V DC
- Protection class IP67 for robust environmental protection
- Ultrasonic frequency of 320 kHz with PTFE coated FFKM transducer
- Stainless steel 1.4571 wetted parts and housing for durability
- Process connection G 1 A
- Compact and standard housing design
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial sensor integration to ensure proper setup and safety compliance.
Applications
- Measurement of fluids and bulk solids in tanks and containers
- Industrial process control requiring continuous or switch level measurement
- Use in environments with process pressures up to 6 bar and temperatures from -25°C to +70°C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact ultrasonic measurement reduces contamination and wear
- Long service life reduces waste and replacement frequency
- Energy-efficient operation with low power consumption
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK UP56-211115 ultrasonic level sensor is available for immediate purchase, ideal for industrial fluid and bulk solid level measurement applications.
