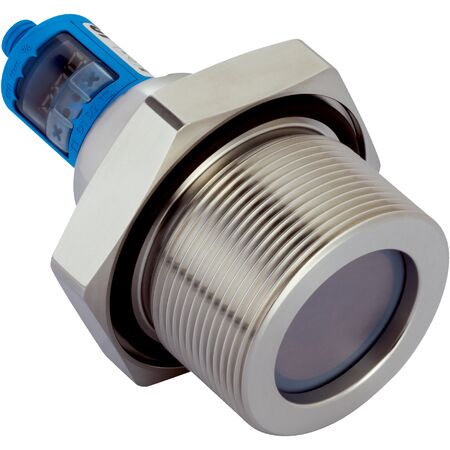

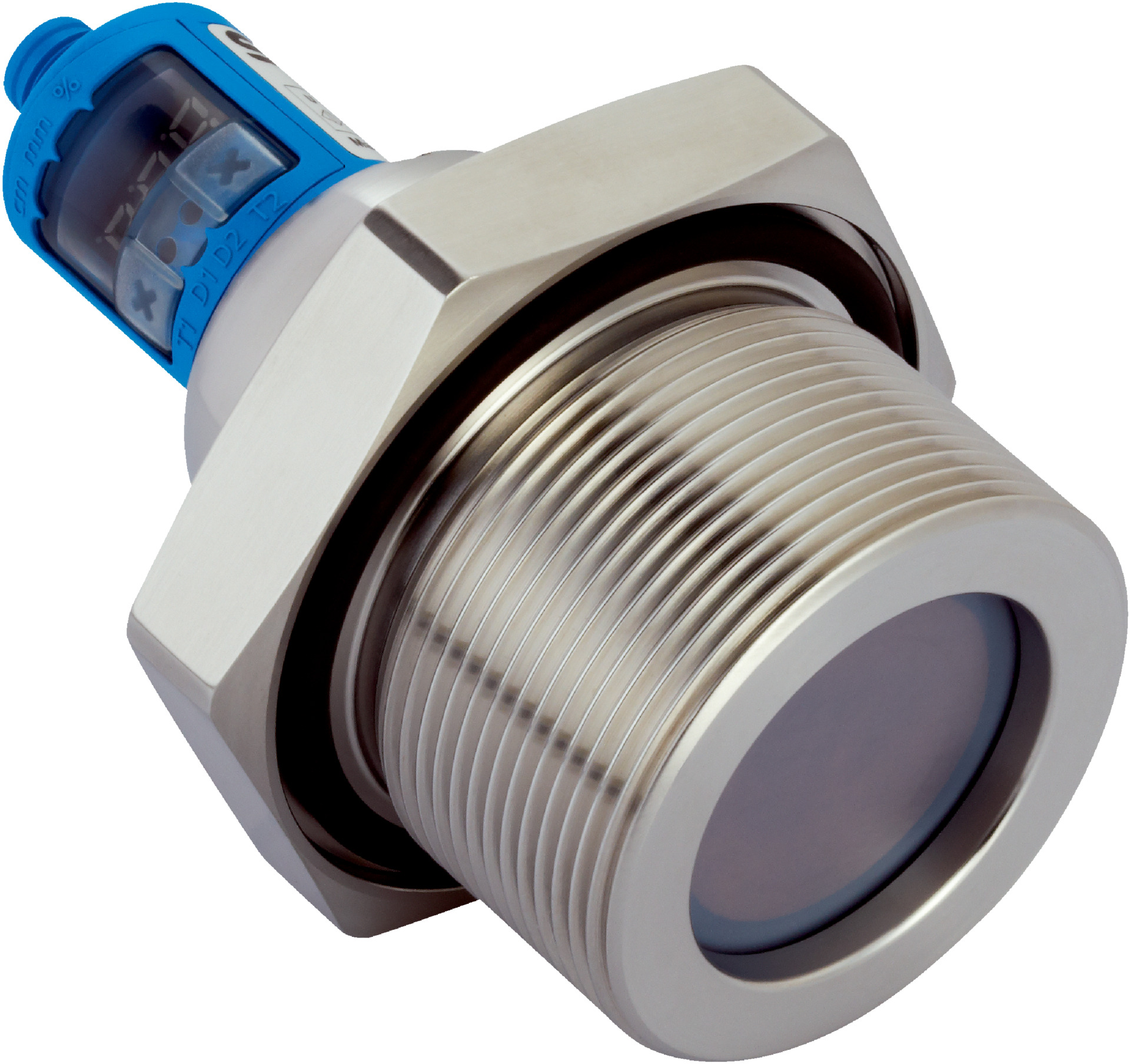

Ultrasonic Level Sensor | 350 mm to 3,400 mm Range | IP67 Protection | by SICK
The Ultrasonic Level Sensor UP56-214118 is designed for precise measurement of fluids and bulk solids, featuring a measurement range of 350 mm to 3,400 mm and an impressive accuracy of ≤ 2%. Ideal for industrial process control, this sensor operates in harsh environments with a robust IP67 rating, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement type: Switch and continuous
- Measuring range in tank: 350 mm to 3,400 mm
- Measuring range immersion tube: 350 mm to 8,000 mm
- Process pressure: 0 to 6 bar
- Process temperature: -25 °C to +70 °C
- Accuracy: ≤ 2%
- Reproducibility: ± 0.15%
- Resolution: 0.18 mm
- Response time: 240 ms
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: ≤ 80 mA
- Protection class: IP67
- Output signal: 1 x PNP + 4 mA to 20 mA / 0 V to 10 V
- Connection type: Round connector M12 x 1, 5-pin
- Ultrasonic frequency: 120 kHz
- Wetted parts: Stainless steel 1.4571, FFKM
- Housing material: Stainless steel 1.4571, PBT, TPU
- Dimensions (H x L x W): 150mm x 50mm x 50mm
- Weight: 1.2 kg
Key Features
- Suitable for fluids and bulk solids
- Measurement range in tank: 350 mm to 3,400 mm
- Measurement range immersion tube: 350 mm to 8,000 mm
- Process pressure up to 6 bar
- Process temperature range from -25 °C to +70 °C
- Integrated display for easy reading
- High accuracy sensor element with ≤ 2% accuracy
- Reproducibility of ± 0.15%
- Fast response time of 240 ms
- Long mean time to failure (MTTF) over 100 years
- Protection class IP67 for harsh environments
- Output signals include PNP and analog 4 mA to 20 mA / 0 V to 10 V
- Robust stainless steel housing and wetted parts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic sensors and electrical wiring standards to ensure proper setup and safety.
Applications
- Measurement of fluids and bulk solids in tanks and containers
- Industrial process control requiring continuous or switch level measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Non-contact measurement reduces contamination and wear
- Long service life reduces waste and replacement frequency
- Energy-efficient operation with low power consumption
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK UP56-214118 Ultrasonic Level Sensor is available for immediate purchase, ideal for industrial fluid and bulk solid level measurement applications.
