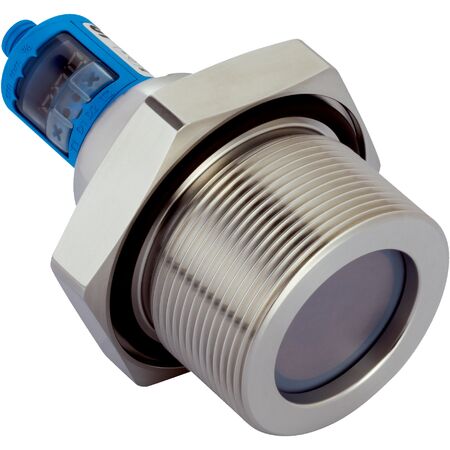

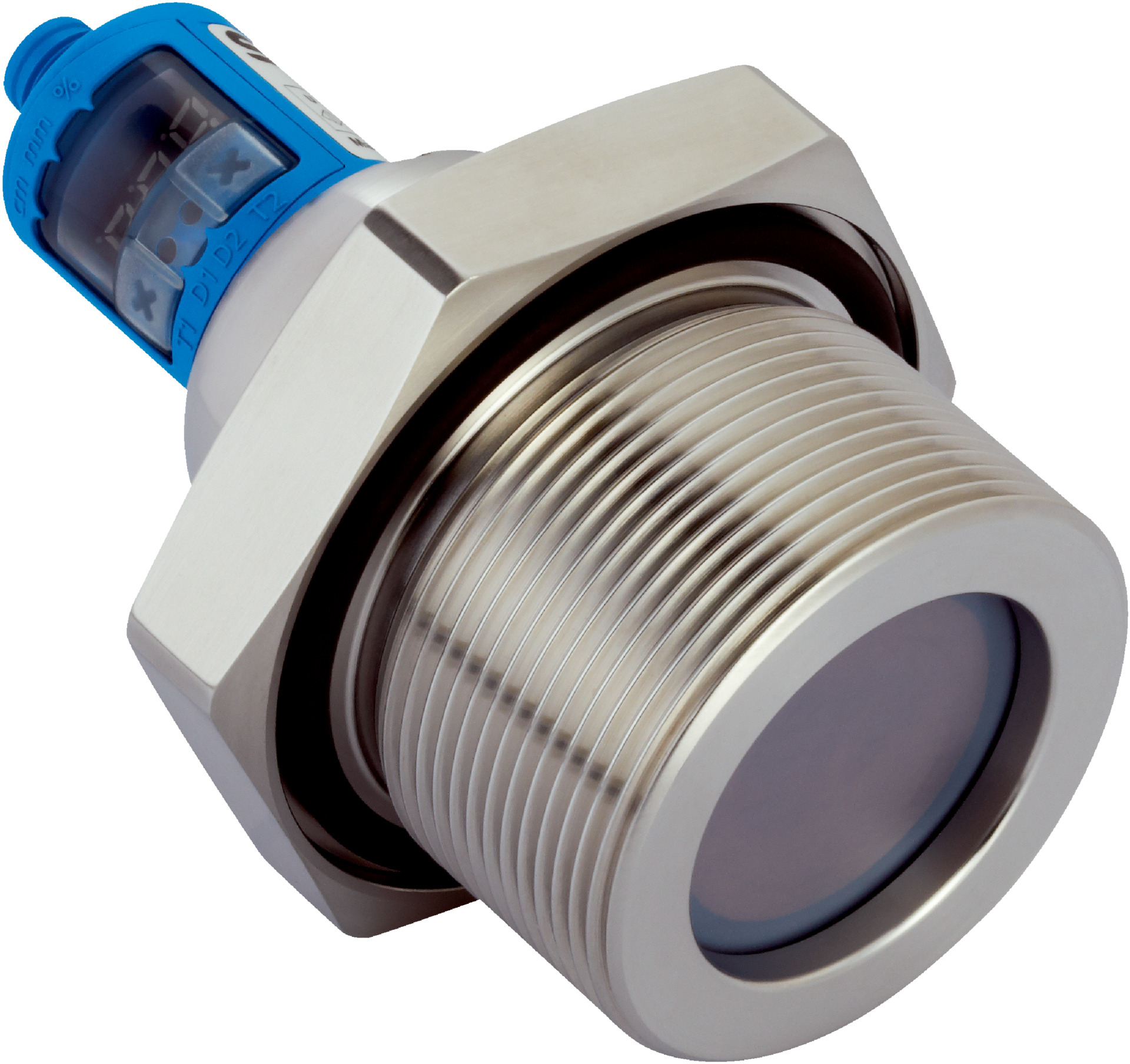

Ultrasonic Level Sensor | Fluid & Bulk Solid Measurement | IO-Link Communication | IP67 Rated | by SICK
The Ultrasonic Level Sensor UP56-214115 is designed for precise measurement of fluids and bulk solids, featuring both switch and continuous level measurement modes. With a robust IP67 enclosure and a measuring range of 350 mm to 3,400 mm, it's perfect for industrial applications requiring high accuracy and reliability. Ideal for environments with process pressures up to 6 bar and temperatures from -25°C to +70°C, this sensor ensures long-lasting performance and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 200mm x 50mm x 50mm
- Weight: 1.2 kg
Key Features
- Suitable for fluids and bulk solids measurement
- Switch and continuous level measurement modes
- Measuring range in tank: 350 mm to 3,400 mm
- Measuring range immersion tube: 350 mm to 8,000 mm
- Process pressure up to 6 bar
- Process temperature range from -25°C to +70°C
- Integrated display for easy reading
- High accuracy sensor element with ≤ 2% accuracy
- Reproducibility of ± 0.15%
- Resolution of 0.18 mm
- Fast response time of 240 ms
- Long mean time to failure (MTTF) over 100 years
- Communication via IO-Link interface
- Supply voltage from 9 V DC to 30 V DC
- Power consumption ≤ 80 mA
- Protection class III with IP67 enclosure rating
- Ultrasonic frequency of 120 kHz with PTFE coated transducer
- Robust stainless steel 1.4571 wetted parts and housing
- Process connection G 2 A PN 6
- Hysteresis of 50 mm
- Output current up to 200 mA
- Round connector M12 x 1, 5-pin connection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic sensors and IO-Link communication protocols to ensure proper setup and safety.
Applications
- Measurement of fluids and bulk solids in tanks and containers
- Industrial process control requiring continuous or switch level measurement
- Use in environments with process pressures up to 6 bar and temperatures from -25°C to +70°C
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption contributes to energy efficiency
- Long MTTF reduces frequency of replacements and associated environmental impact
Warranty Information
Warranty details available upon request from manufacturer SICK.
Available Now
The SICK UP56-214115 Ultrasonic Level Sensor is available for immediate purchase, ideal for industrial fluid and bulk solid level measurement applications.
