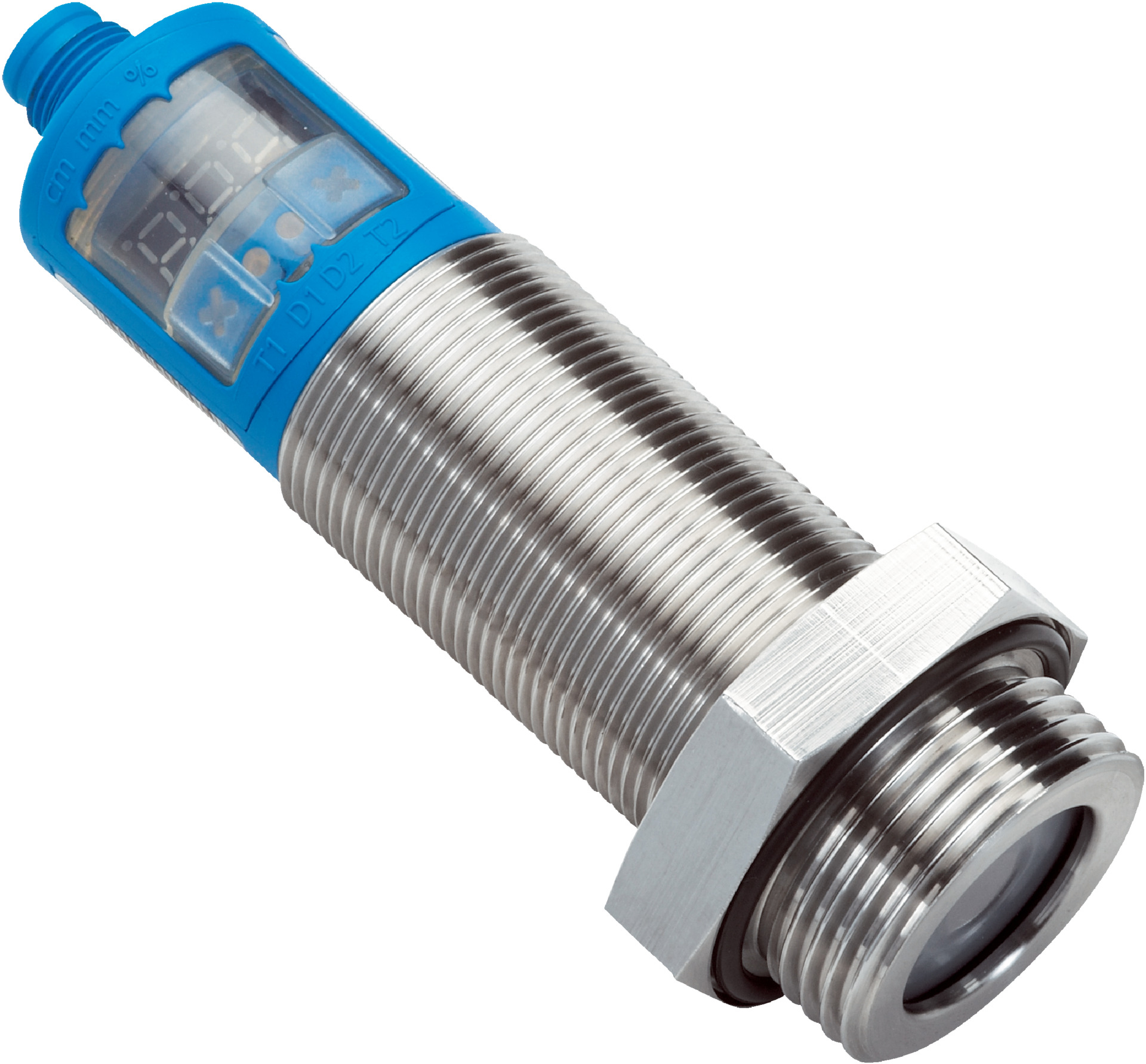

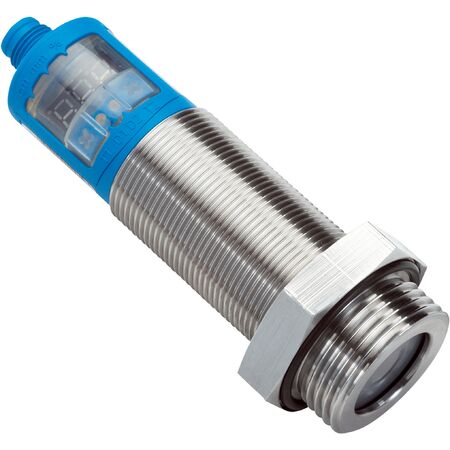

Ultrasonic Level Sensor | Fluid & Bulk Solids Measurement | IO-Link Communication | IP67 Rated | by SICK
The Ultrasonic Level Sensor UP56-212115 is designed for precise measurement of fluids and bulk solids, featuring switch and continuous level measurement capabilities. With a robust IP67 enclosure, it operates effectively in harsh environments, supporting process pressures up to 6 bar and temperatures from -25°C to +70°C. Ideal for industrial applications, this sensor ensures high accuracy and long service life, making it a reliable choice for your measurement needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 120mm x 30mm x 30mm
- Weight: 0.21 kg
Key Features
- Suitable for fluids and bulk solids measurement
- Switch and continuous level measurement capabilities
- Measuring range in tank: 85 mm to 350 mm
- Measuring range immersion tube: 85 mm to 1500 mm
- Process pressure range: 0 to 6 bar
- Process temperature range: -25°C to +70°C
- Integrated display for easy reading
- High accuracy sensor element with ≤ 2% accuracy
- Reproducibility of ± 0.15%
- Resolution of 0.18 mm
- Fast response time of 84 ms
- Long mean time to failure (MTTF) over 100 years
- Communication via IO-Link 1.1 for process data, diagnostics, and parameterization
- Power supply voltage from 9 V DC to 30 V DC
- Power consumption ≤ 80 mA
- Protection class III with IP67 enclosure rating
- Ultrasonic frequency of 320 kHz with PTFE coated FFKM transducer
- Robust stainless steel 1.4571 wetted parts and housing
- Process connection G 1 A
- Compact and standard housing design
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Measurement of fluids and bulk solids in tanks and containers
- Industrial process control requiring continuous or switch level measurement
- Use in environments with process pressures up to 6 bar and temperatures from -25°C to +70°C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient operation with low power consumption
- Non-contact ultrasonic measurement minimizes contamination and spillage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UP56-212115 Ultrasonic Level Sensor is available for immediate purchase, ideal for industrial fluid and bulk solids level measurement applications.
