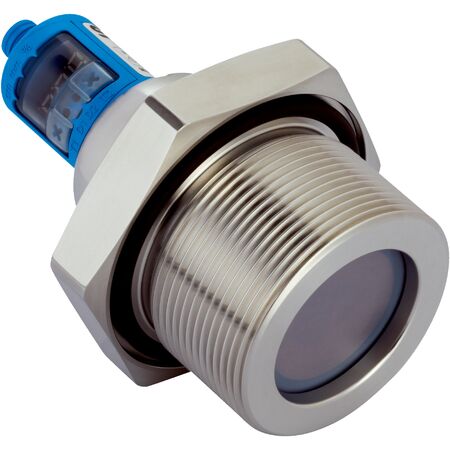

Ultrasonic Level Sensor | Measures Fluids & Bulk Solids | IP67 Rated | by SICK
The Ultrasonic Level Sensor UP56-214112 is designed for precise measurement of fluid and bulk solid levels in tanks and containers. With a measuring range of 350 mm to 3,400 mm and an IP67 rated enclosure, it ensures reliable performance in industrial environments. Ideal for process control, this sensor features high accuracy and low power consumption, making it a perfect choice for continuous or switch level measurement applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 150mm x 50mm x 50mm
- Weight: 1.2 kg
Key Features
- Measures fluids and bulk solids with switch and continuous measurement modes
- Measuring range in tank: 350 mm to 3,400 mm
- Measuring range immersion tube: 350 mm to 8,000 mm
- Process pressure rating from 0 bar to 6 bar
- Process temperature range from -25°C to +70°C
- High accuracy sensor element with ≤ 2% accuracy and ± 0.15% reproducibility
- Resolution of 0.18 mm and response time of 240 ms
- Equipped with a display for easy reading
- Supply voltage range from 9 V DC to 30 V DC with low power consumption ≤ 80 mA
- IP67 rated enclosure for protection against dust and water
- Output signal: 2 x PNP with 200 mA output current
- Robust stainless steel 1.4571 housing with PTFE coated ultrasonic transducer
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic sensors and industrial process instrumentation to ensure proper setup and safety compliance.
Applications
- Measurement of fluid and bulk solid levels in tanks and containers
- Industrial process control requiring continuous or switch level measurement
- Suitable for use in environments with process pressures up to 6 bar and temperatures from -25°C to +70°C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long mean time to failure (MTTF) of over 100 years reduces waste and replacement frequency
- Non-contact ultrasonic measurement reduces contamination and environmental impact
- Energy-efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK UP56-214112 Ultrasonic Level Sensor is available for immediate purchase. Ideal for industrial fluid and bulk solid level measurement applications.
