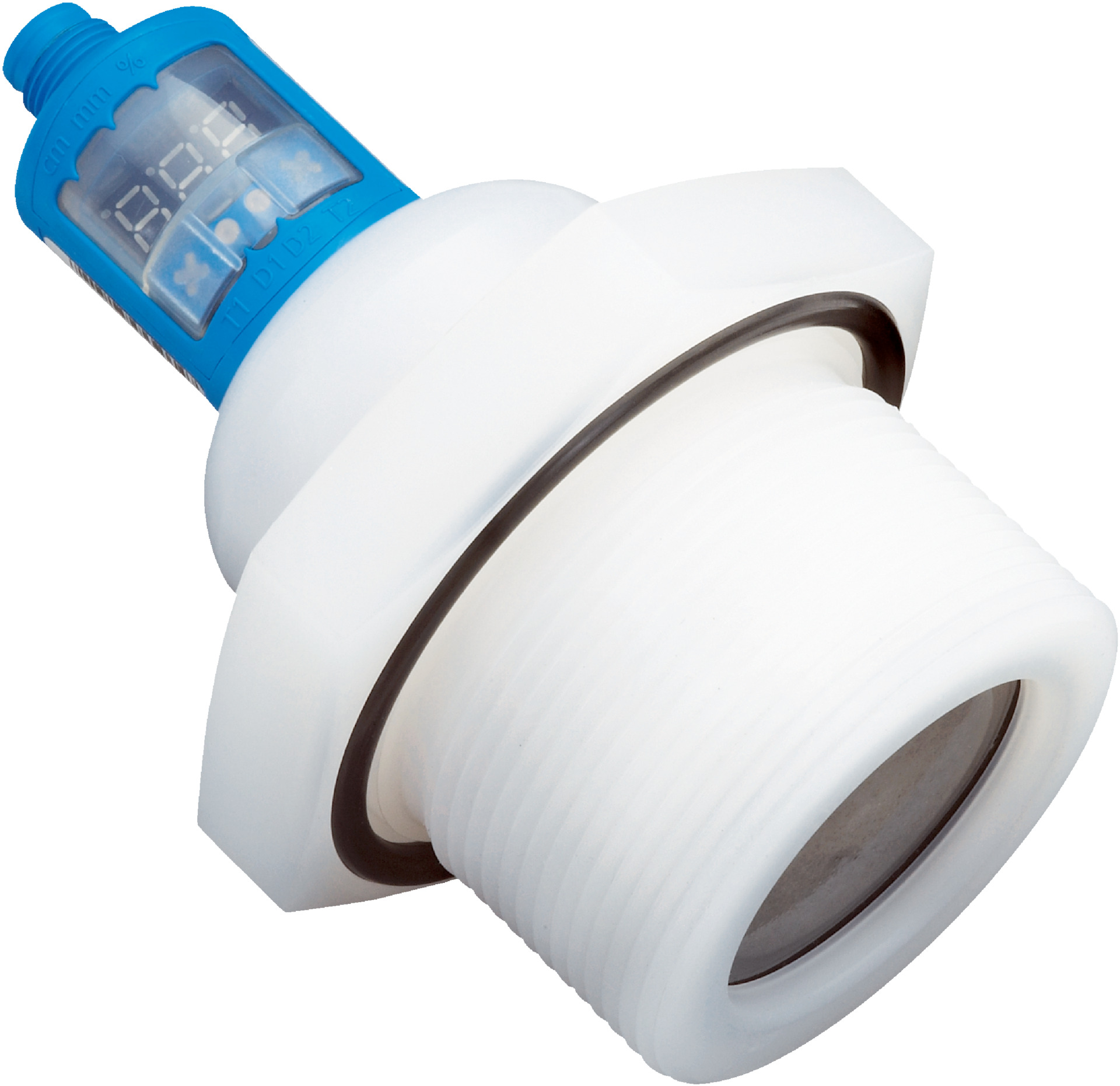

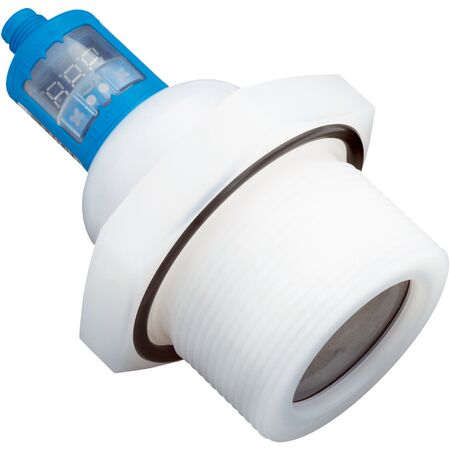

Ultrasonic Level Sensor UP56-214172 | IP67 Rated | 350mm to 3400mm Range | Integrated Display | by SICK
The Ultrasonic Level Sensor UP56-214172 is designed for precise measurement of fluids and bulk solids, featuring a measuring range from 350 mm to 3,400 mm. With an integrated display and high accuracy of ≤ 2%, it's perfect for industrial process control applications. Built to withstand process pressures up to 6 bar and temperatures from -25 °C to +70 °C, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 150mm x 50mm x 50mm
- Weight: 1.2 kg
Key Features
- Suitable for fluids and bulk solids
- Measurement types: switch and continuous
- Measuring range in tank: 350 mm to 3,400 mm
- Measuring range immersion tube: 350 mm to 8,000 mm
- Process pressure up to 6 bar
- Process temperature range from -25 °C to +70 °C
- Integrated display for easy reading
- High accuracy sensor element with ≤ 2% accuracy
- Reproducibility ± 0.15%
- Fast response time of 240 ms
- Long mean time to failure (MTTF) over 100 years
- Power supply voltage from 9 V DC to 30 V DC
- Output signal: 2 x PNP
- Protection class III with IP67 enclosure rating
- Robust housing made of PVDF, PBT, TPU
- Wetted parts made of PVDF and FFKM
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and compliance with safety standards.
Applications
- Measurement of fluids and bulk solids in tanks and containers
- Industrial process control requiring continuous or switch level measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design with long MTTF reduces waste and replacement frequency
- Non-contact ultrasonic measurement minimizes contamination and environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK UP56-214172 Ultrasonic Level Sensor is available for immediate purchase, ideal for industrial fluid and bulk solids level measurement applications.
