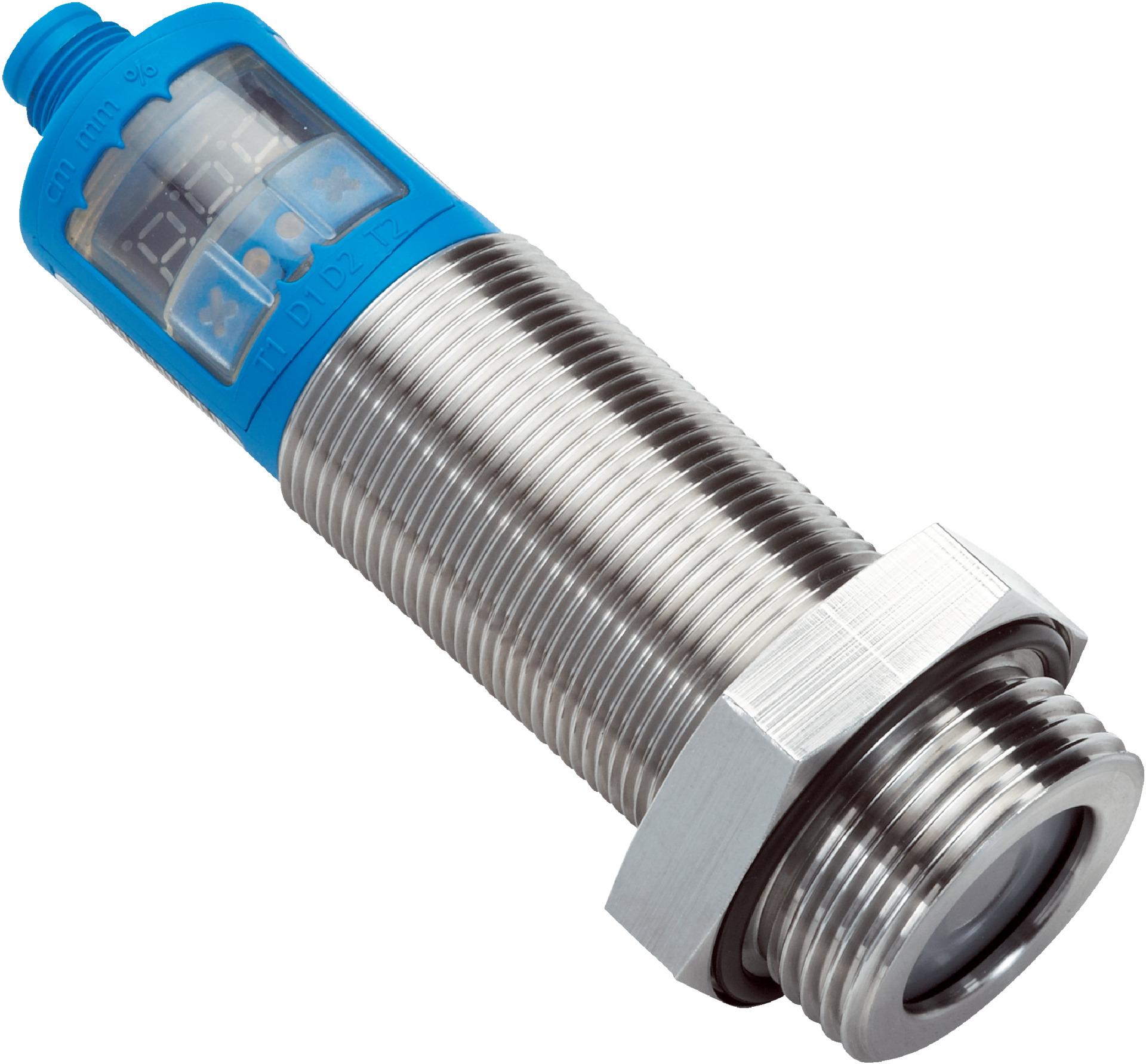

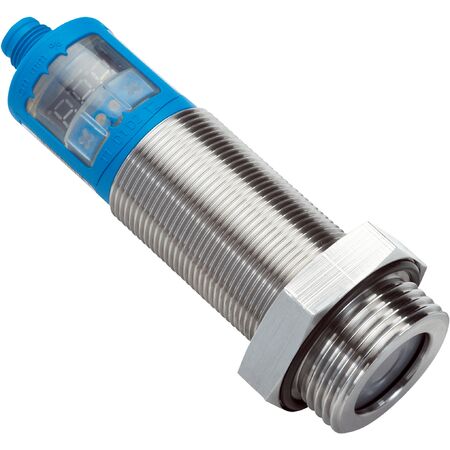

Ultrasonic Level Sensor UP56-212114 | IP67 Rated | 85 mm to 1500 mm Measuring Range | High Accuracy | by SICK
The Ultrasonic Level Sensor UP56-212114 is designed for precise measurement of fluids and bulk solids, featuring a versatile measuring range from 85 mm to 1500 mm. With an IP67 rating, it’s built for harsh environments, ensuring reliable performance in industrial process control. Its high accuracy of ≤ 2% and fast response time of 84 ms make it ideal for continuous or switch level measurement applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids, bulk solids
- Measurement: Switch, Continuous
- Measuring range in tank: 85 mm to 350 mm
- Measuring range immersion tube: 85 mm to 1500 mm
- Process pressure: 0 bar to 6 bar
- Process temperature: -25 °C to +70 °C
- Accuracy of sensor element: ≤ 2%
- Reproducibility: ± 0.15%
- Resolution: 0.18 mm
- Response time: 84 ms
- MTTF: > 100 years
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: ≤ 80 mA
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 2 x NPN
- Hysteresis: 5 mm
- Output current: 200 mA
- Time delay before availability: ≤ 300 ms
- Enclosure rating: IP67
- Ultrasonic frequency: 320 kHz
- Ultrasonic transducer: PTFE coating, FFKM
- Wetted parts: Stainless steel 1.4571 FFKM
- Process connection: G 1 A
- Housing material: Stainless steel 1.4571, PBT, TPU
- Dimensions (H x L x W): 150mm x 30mm x 30mm
- Weight: 0.21 kg
Key Features
- Suitable for fluids and bulk solids
- Measurement modes: switch and continuous
- Measuring range in tank: 85 mm to 350 mm
- Measuring range immersion tube: 85 mm to 1500 mm
- Process pressure up to 6 bar
- Process temperature range from -25 °C to +70 °C
- Integrated display for easy reading
- High accuracy sensor element with ≤ 2% accuracy
- Reproducibility ± 0.15%
- Fast response time of 84 ms
- Long mean time to failure (MTTF) over 100 years
- Power supply voltage from 9 V DC to 30 V DC
- Output signal: 2 x NPN
- Protection rating IP67 for harsh environments
- Ultrasonic frequency 320 kHz with PTFE coated transducer
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic sensors and electrical connections to ensure proper setup and safety.
Applications
- Measurement of fluids and bulk solids in tanks
- Industrial process control requiring continuous or switch level measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact measurement reduces contamination and wear
- Long service life reduces waste and replacement frequency
- Low power consumption enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK UP56-212114 Ultrasonic Level Sensor is available for immediate purchase, ideal for industrial fluid and bulk solids level measurement applications.
