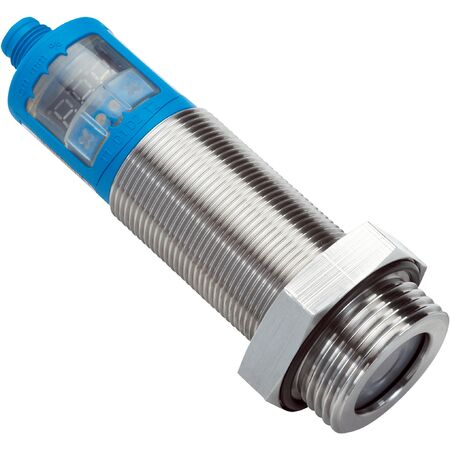

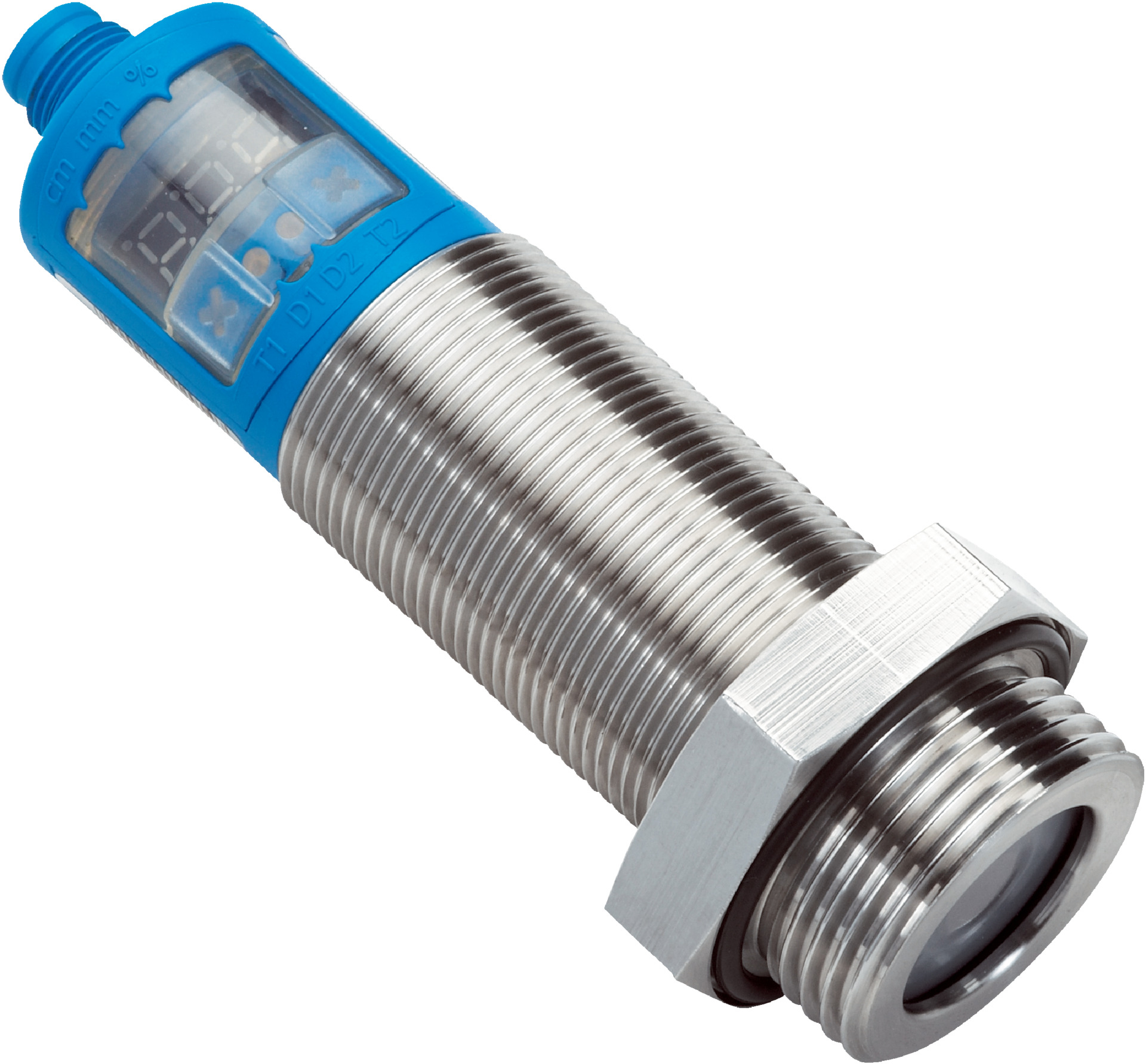

Ultrasonic Level Sensor UP56-213118 | Measures Fluids & Bulk Solids | IP67 Rated | by SICK
The Ultrasonic Level Sensor UP56-213118 is designed for precise measurement of fluid and bulk solid levels, featuring a measuring range of 200 mm to 1,300 mm in tanks and up to 5,000 mm in immersion tubes. With an accuracy of ≤ 2% and a fast response time of 180 ms, this sensor is perfect for industrial applications requiring reliable level monitoring in challenging environments, operating between -25°C to +70°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement medium: Fluids, bulk solids
- Measurement type: Switch and continuous
- Measuring range in tank: 200 mm to 1,300 mm
- Measuring range immersion tube: 200 mm to 5,000 mm
- Process pressure: 0 to 6 bar
- Process temperature: -25°C to +70°C
- Accuracy: ≤ 2%
- Reproducibility: ± 0.15%
- Resolution: 0.18 mm
- Response time: 180 ms
- MTTF: > 100 years
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: ≤ 80 mA
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 1 x PNP + 4 mA to 20 mA / 0 V to 10 V
- Hysteresis: 20 mm
- Output current: 200 mA
- Enclosure rating: IP67
- Ultrasonic frequency: 180 kHz
- Ultrasonic transducer coating: PTFE, FFKM
- Wetted parts: Stainless steel 1.4571, FFKM
- Housing material: Stainless steel 1.4571, PBT, TPU
- Dimensions (H x L x W): 120mm x 30mm x 30mm
- Weight: 0.21 kg
Key Features
- Measures fluids and bulk solids with switch and continuous measurement modes
- Measuring range in tank: 200 mm to 1,300 mm; immersion tube range up to 5,000 mm
- Process pressure tolerance from 0 to 6 bar
- Operating temperature range from -25°C to +70°C
- High accuracy sensor element with ≤ 2% accuracy and ± 0.15% reproducibility
- Fast response time of 180 ms
- IP67 rated enclosure for robust protection
- Output signals include 1 x PNP and 4 mA to 20 mA / 0 V to 10 V
- Stainless steel wetted parts and housing for durability
- Equipped with a display for easy monitoring
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic sensors and industrial process equipment to ensure proper setup and safety compliance.
Applications
- Measurement of fluid and bulk solid levels in tanks and containers
- Industrial process control requiring continuous or switch level measurement
- Suitable for use in environments with process pressures up to 6 bar and temperatures from -25°C to +70°C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact measurement reduces contamination and wear
- Energy-efficient operation with low power consumption
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UP56-213118 ultrasonic level sensor is available for immediate purchase, ideal for industrial fluid and bulk solid level measurement applications.
