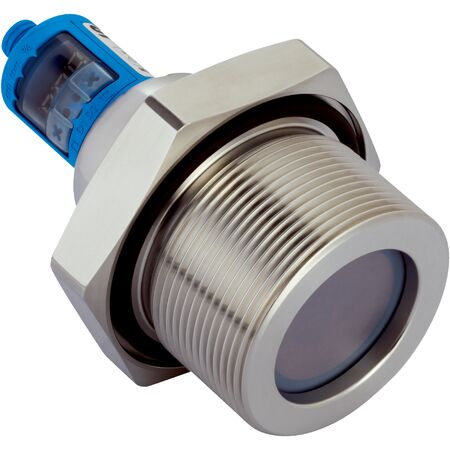

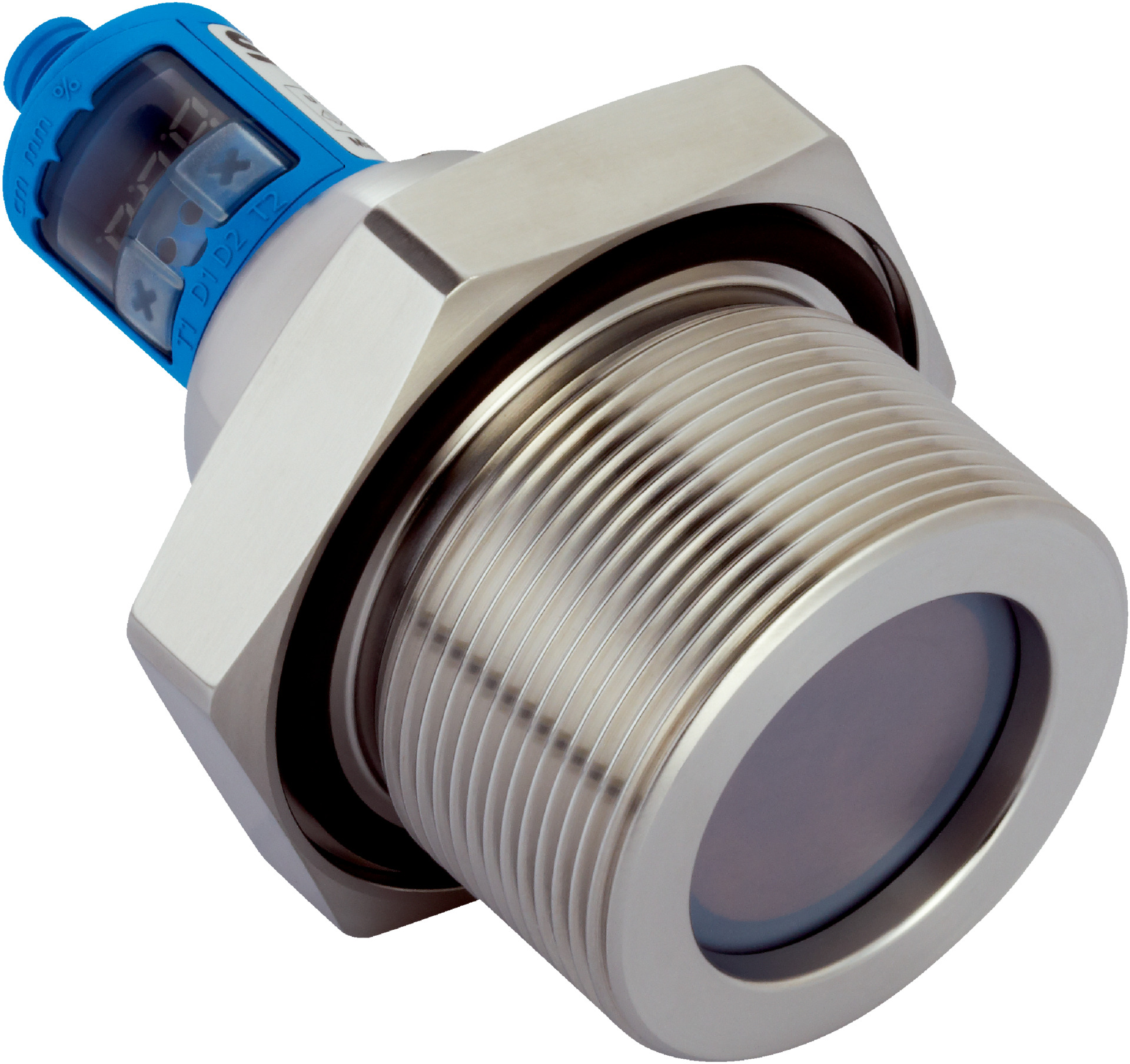

Ultrasonic Level Sensor UP56-214114 | Measures Fluids & Bulk Solids | IP67 Rated | by SICK
The Ultrasonic Level Sensor UP56-214114 is designed for precise measurement of fluid and bulk solid levels in tanks and containers. With a measuring range of 350 mm to 3,400 mm and an IP67 rated enclosure, it ensures reliable performance in industrial environments. Ideal for process control applications, this sensor features high accuracy and low power consumption, making it a durable and efficient choice for your measurement needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Medium: Fluids, bulk solids
- Measurement: Switch, Continuous
- Measuring range in tank: 350 mm to 3,400 mm
- Measuring range immersion tube: 350 mm to 8,000 mm
- Process pressure: 0 bar to 6 bar
- Process temperature: -25°C to +70°C
- Accuracy of sensor element: ≤ 2%
- Reproducibility: ± 0.15%
- Resolution: 0.18 mm
- Response time: 240 ms
- MTTF: > 100 years
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: ≤ 80 mA
- Protection class: III
- Connection type: Round connector M12 x 1, 5-pin
- Output signal: 2 x NPN
- Hysteresis: 50 mm
- Output current: 200 mA
- Time delay before availability: ≤ 300 ms
- Enclosure rating: IP67
- Ultrasonic frequency: 120 kHz
- Ultrasonic transducer: PTFE coating, FFKM
- Wetted parts: Stainless steel 1.4571 FFKM
- Process connection: G 2 A PN 6
- Housing material: Stainless steel 1.4571, PBT, TPU
- Ambient operating temperature: -25°C to +70°C
- Ambient storage temperature: -40°C to +85°C
- Dimensions (H x L x W): 150mm x 40mm x 40mm
- Weight: 1.2 kg
Key Features
- Measures fluids and bulk solids with switch and continuous measurement modes
- Measuring range in tank: 350 mm to 3,400 mm
- Measuring range immersion tube: 350 mm to 8,000 mm
- Process pressure rating from 0 bar to 6 bar
- Process temperature range from -25°C to +70°C
- High accuracy sensor element with ≤ 2% accuracy and ± 0.15% reproducibility
- Resolution of 0.18 mm and response time of 240 ms
- IP67 rated enclosure for robust protection
- Ultrasonic frequency of 120 kHz with PTFE coated FFKM transducer
- Stainless steel wetted parts and housing for durability
- Equipped with a display for easy reading
- Output signal: 2 x NPN with 200 mA output current
- Supply voltage range: 9 V DC to 30 V DC
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic sensor setup and electrical connections to ensure proper operation and safety.
Applications
- Measurement of fluid and bulk solid levels in tanks and containers
- Industrial process control requiring continuous or switch level measurement
- Suitable for use in environments with process pressures up to 6 bar and temperatures from -25°C to +70°C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact ultrasonic measurement reduces contamination risk and maintenance needs
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption of ≤ 80 mA supports energy efficiency
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK UP56-214114 ultrasonic level sensor is available for immediate purchase, ideal for industrial fluid and bulk solid level measurement applications.
