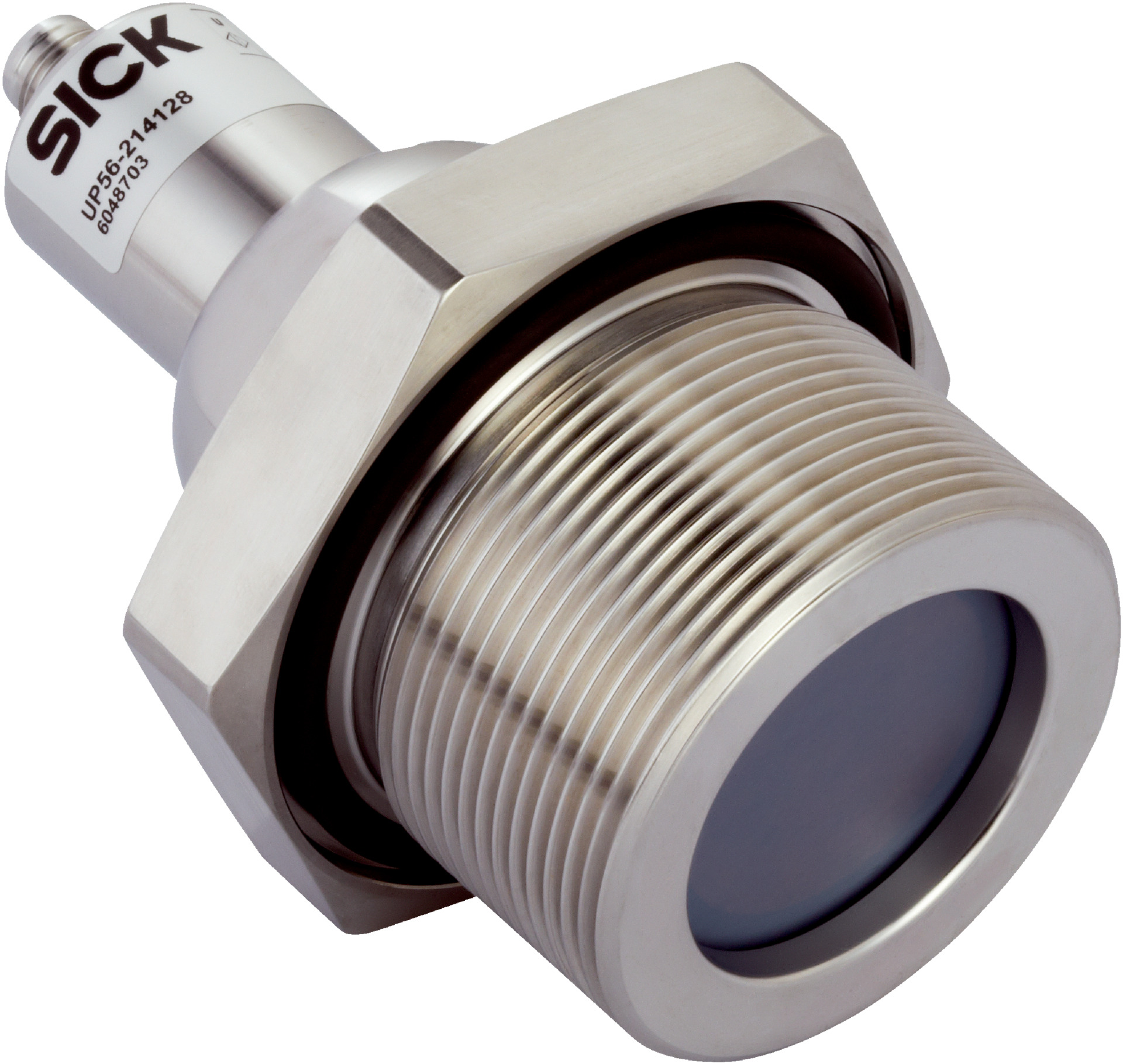

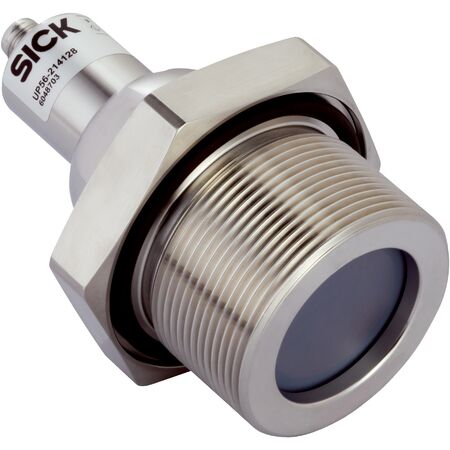

Ultrasonic Level Sensor UP56-214128 | Measures Fluids & Solids | IP67 Rated | by SICK
The Ultrasonic Level Sensor UP56-214128 is designed for precise measurement of fluid and bulk solid levels in tanks and containers. With a measuring range of 350 mm to 3,400 mm and an IP67 rated enclosure, it ensures reliable performance in industrial environments. Ideal for process control, this sensor features a high accuracy of ≤ 2% and a robust stainless steel housing, making it perfect for applications requiring continuous or switch level measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 200mm x 50mm x 50mm
- Weight: 1.2 kg
Key Features
- Measures fluids and bulk solids with switch and continuous measurement modes
- Measuring range in tank: 350 mm to 3,400 mm
- Measuring range immersion tube: 350 mm to 8,000 mm
- Process pressure rating from 0 bar to 6 bar
- Process temperature range from -25°C to +70°C
- High accuracy sensor element with ≤ 2% accuracy and ± 0.15% reproducibility
- Resolution of 0.18 mm and response time of 240 ms
- Long mean time to failure (MTTF) greater than 100 years
- Supply voltage range from 9 V DC to 30 V DC with low power consumption ≤ 80 mA
- Output signals include 1 x PNP and 4 mA to 20 mA / 0 V to 10 V
- IP67 rated enclosure for protection against dust and water
- Ultrasonic frequency of 120 kHz with PTFE coated FFKM ultrasonic transducer
- Robust stainless steel 1.4571 housing and wetted parts with FFKM seals
- Process connection G 2 A PN 6 with round connector M12 x 1, 5-pin
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Measurement of fluid and bulk solid levels in tanks and containers
- Industrial process control requiring continuous or switch level measurement
- Suitable for use in environments with process pressures up to 6 bar and temperatures from -25°C to +70°C
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces waste and extends product life
- Low power consumption contributes to energy efficiency
- Non-contact ultrasonic measurement reduces contamination and environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UP56-214128 Ultrasonic Level Sensor is available for immediate purchase, ideal for industrial fluid and bulk solid level measurement applications.
