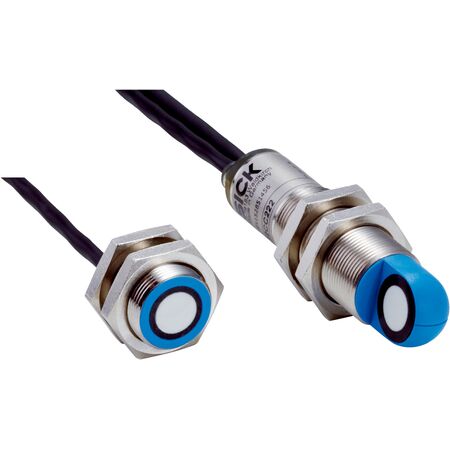

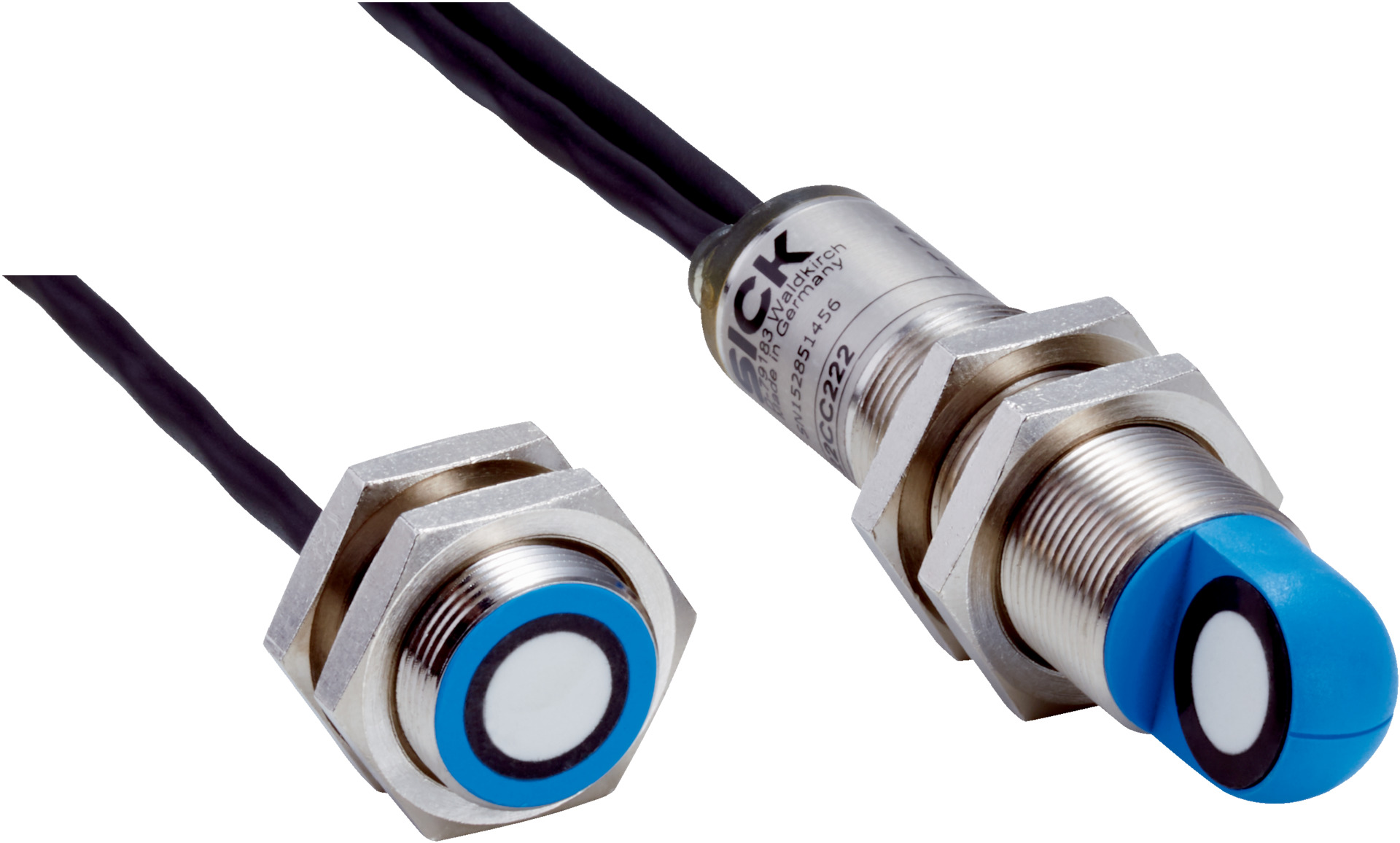

Ultrasonic Material Sensor UD18-22CC242 | IP65 Rated | Fast Response Time | 250 Hz Switching Frequency | by SICK
The Ultrasonic Material Sensor UD18-22CC242 is designed for precise detection of natural objects like paper and metal sheets, with an installation distance of 20 mm to 60 mm and a fast response time of 2.5 ms. Ideal for industrial automation and quality control, this sensor features a robust IP65-rated metal housing, ensuring durability and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Installation distance: 20 mm to 60 mm, default 40 mm ± 3 mm
- Target: Natural objects including paper, plastic sheets, foils, metal sheets, corrugated cardboard
- Resolution: 1 material layer
- Response time: 2.5 ms
- Switching frequency: 250 Hz
- Output time: 2 ms, trigger mode < 0.5 ms
- Ultrasonic frequency: 400 kHz
- Sensitivity: 3 selectable levels with teach-in for up to 4 levels
- Blind zone: 7 mm from sender and receiver
- Permissible angle deviation: ± 45°
- Digital outputs: 2 NPN switching outputs with max current ≤ 200 mA
- Supply voltage: DC 20 V to 30 V
- Power consumption: ≤ 1.5 W
- Initialization time: < 750 ms
- Display: 2 LEDs
- Enclosure rating: IP65
- Protection class: III
- Housing material: Metal (Nickel-plated brass, PBT/PA, polyurethane foam, glass epoxy resin)
- Connection: Connection cable with open end, sender and receiver cables with M8 connectors
- Dimensions (H x L x W): 18mm x 79.2mm x 18mm
- Weight: 0.13 kg
Key Features
- Installation distance from 20 mm to 60 mm with default setting at 40 mm ± 3 mm
- High resolution detecting 1 material layer
- Fast response time of 2.5 ms and switching frequency of 250 Hz
- Three selectable sensitivity levels with teach-in for up to 4 individual sensitivity levels
- Blind zone of 7 mm from sender and receiver
- Permissible angle deviation ± 45° perpendicular to material layer
- Digital outputs with NPN type switching for double and single/no layer detection
- Supply voltage DC 20 V to 30 V with power consumption ≤ 1.5 W
- Enclosure rating IP65 for protection against dust and water
- Robust metal cylindrical housing with angled sending axis
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct setup and safety compliance.
Applications
- Detection of natural objects including paper, plastic sheets, foils, self-adhesive films, metal sheets, corrugated cardboard, Washi, Wafer PCB
- Industrial automation for material layer detection
- Quality control and packaging processes
