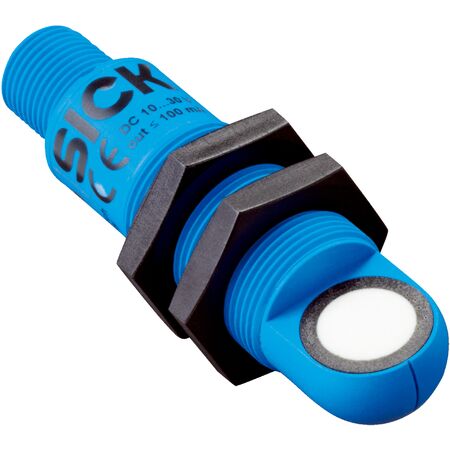

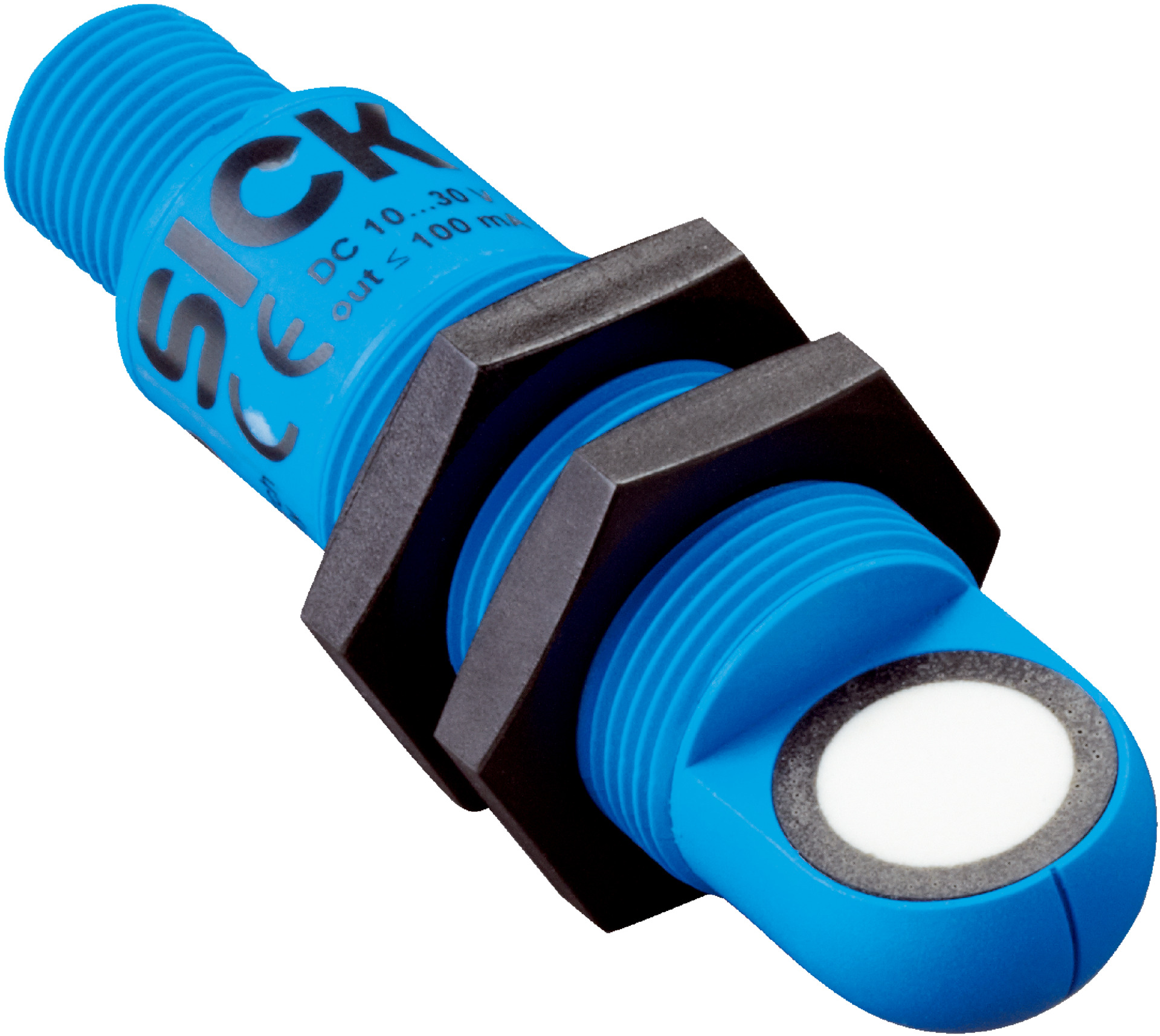

Ultrasonic Proximity Sensor | 120 mm to 1,300 mm Range | High Resolution & Fast Response | IP65/IP67 Rated | by SICK

BRAND: SICK
SKU: 6072886
$648.60 List price: $815.20
+ −
30 Days Return Electricians Unlock Trade Access
The Ultrasonic Proximity Sensor is designed for precise distance measurement, featuring an operating range of 120 mm to 1,300 mm and a high resolution of ≥ 0.2 mm. Ideal for industrial automation and object detection, this sensor ensures reliable performance with a fast response time of 80 ms and robust IP65/IP67 rated housing for protection against dust and water.
Technical Specifications
  • Operating range: 120 mm to 1,000 mm, 1,300 mm
  • Target: Natural objects
  • Resolution: ≥ 0.2 mm
  • Repeatability: ± 0.15%
  • Measurement accuracy: ± 1%
  • Response time: 80 ms
  • Output time: 20 ms
  • Ultrasonic frequency: 200 kHz
  • Analog output: 1 voltage output, 0 V to 10 V, ≥ 100,000 Ω, 12 bit resolution
  • Supply voltage: DC 15 V to 30 V
  • Power consumption: ≤ 1.2 W
  • Initialization time: < 300 ms
  • Display: 2 x LED
  • Enclosure rating: IP65 / IP67
  • Protection class: III
  • Housing material: Plastic (PBT), ultrasonic transducer: polyurethane foam, glass epoxy resin
  • Thread size: M18 x 1
  • Connection type: Male connector, M12, 4-pin
  • Operating temperature: -25 °C to +70 °C
  • Storage temperature: -40 °C to +85 °C
  • Temperature drift: 0.17% / K
  • Dimensions (H x L x W): 18mm x 69mm x 18mm
  • Weight: 0.1 kg
Key Features
  • Operating range from 120 mm to 1,300 mm
  • High resolution of ≥ 0.2 mm
  • Repeatability of ± 0.15%
  • Measurement accuracy of ± 1%
  • Fast response time of 80 ms
  • Analog voltage output 0 V to 10 V with 12-bit resolution
  • IP65 / IP67 rated enclosure for robust protection
  • Compact cylindrical design with angled sending axis
  • Operating temperature range from -25 °C to +70 °C
  • LED display indicators for status
Professional Installation Requirements
  • Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
  • Industrial automation for object detection and distance measurement
  • Quality control and process monitoring
  • Robotics and material handling systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Low power consumption of ≤ 1.2 W reduces energy usage
  • Durable IP65/IP67 housing extends product life and reduces waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK UM18-218167102 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
