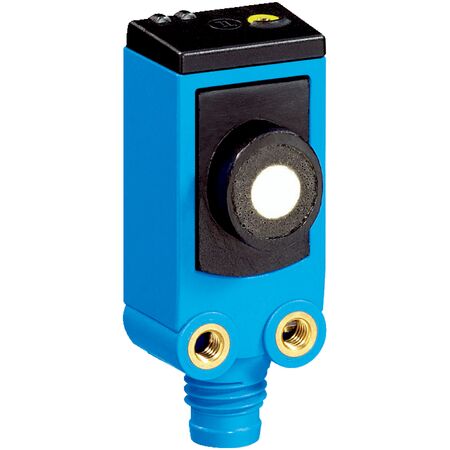

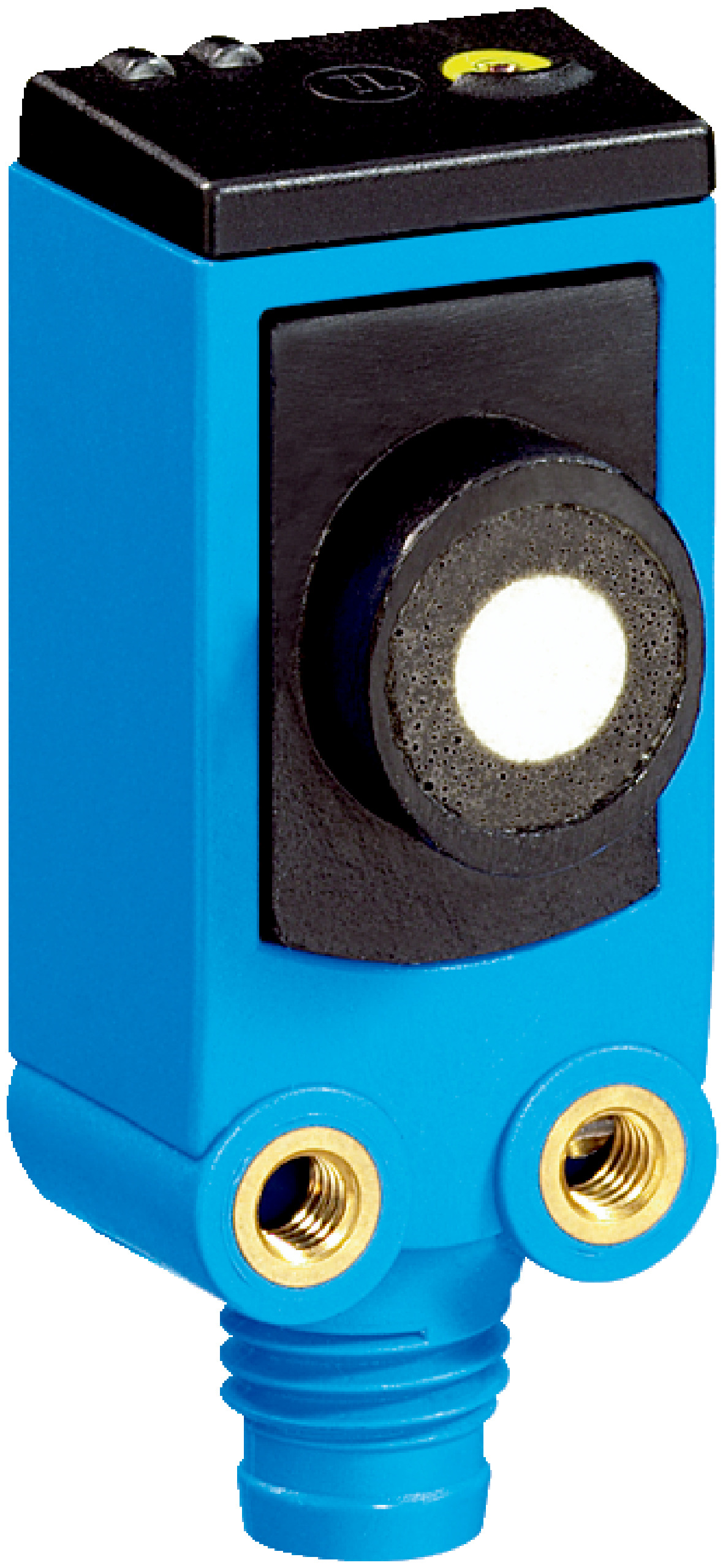

Ultrasonic Proximity Sensor | 13 mm to 150 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Proximity Sensor UC4-13341 offers an operating range from 13 mm to 150 mm, extendable to 250 mm, with a high resolution of ≥ 0.1 mm. Perfect for industrial automation and safety monitoring, this sensor features a robust IP65/IP67 enclosure, ensuring durability in challenging environments. With a response time of 24 ms and low power consumption, it's designed for reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 13 mm to 150 mm, extendable to 250 mm
- Resolution: ≥ 0.1 mm
- Repeatability: ± 0.15 %
- Measurement accuracy: ± 1 %
- Response time: 24 ms
- Switching frequency: 30 Hz
- Output time: 8 ms
- Ultrasonic frequency: 380 kHz
- Digital output: 1 PNP output, max 200 mA
- Supply voltage: DC 15 V to 30 V
- Power consumption: ≤ 0.75 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection: Male M8, 3-pin connector
- Housing material: Plastic (ABS), ultrasonic transducer: polyurethane foam, glass epoxy resin
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 40mm x 17mm x 16mm
- Weight: 0.1 kg
Key Features
- Operating range from 13 mm to 150 mm, extendable to 250 mm
- High resolution of ≥ 0.1 mm
- Repeatability of ± 0.15 %
- Measurement accuracy of ± 1 %
- Temperature compensation included
- Response time of 24 ms with switching frequency of 30 Hz
- Adjustable operating modes including switching point, switching window, and background suppression
- IP65 / IP67 rated enclosure for robust protection
- Low power consumption ≤ 0.75 W
- Digital PNP output with maximum current ≤ 200 mA
- Safety-related parameters with MTTFD of 101 years and DCavg 0%
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Measurement of natural objects in manufacturing
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP65/IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK UC4-13341 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
