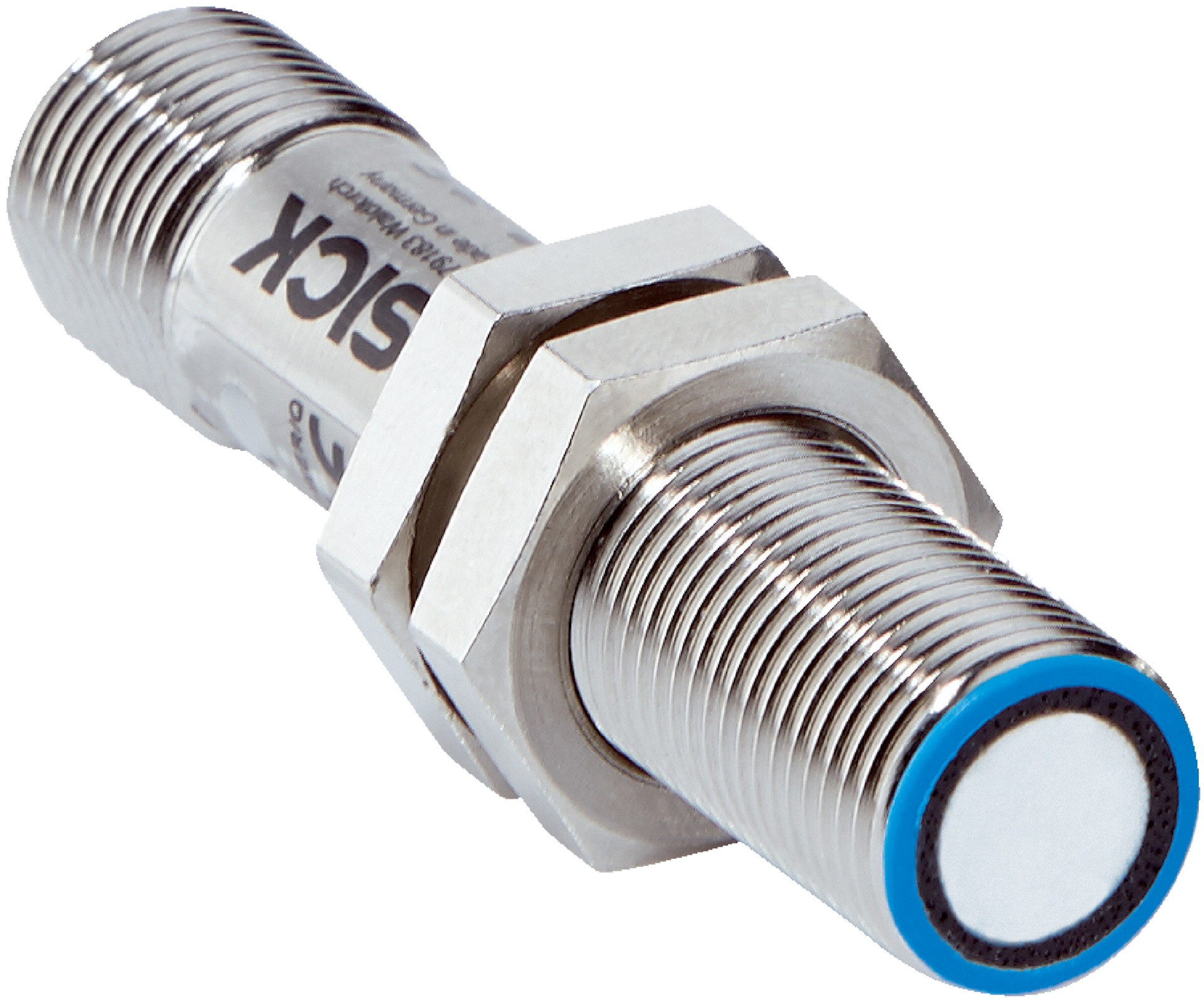

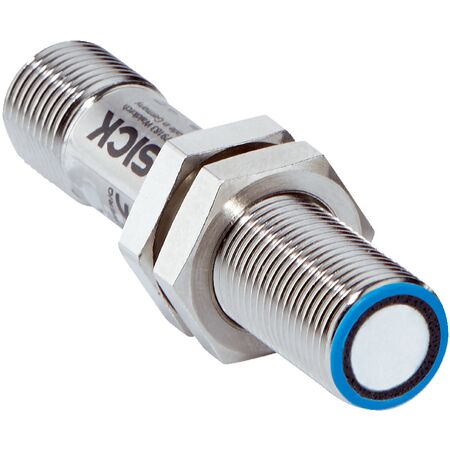

Ultrasonic Proximity Sensor | 20 mm to 150 mm Range | High Resolution & Fast Response | IP65/IP67 Rated | by SICK
The Ultrasonic Proximity Sensor UM12-1172211 offers an operating range from 20 mm to 150 mm, extendable to 250 mm, with a high resolution of ≥ 0.069 mm and measurement accuracy of ± 1%. Ideal for industrial automation and safety monitoring, this sensor features a robust IP65/IP67 rated enclosure and fast response time of 24 ms, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 20 mm to 150 mm, extendable to 250 mm
- Resolution: ≥ 0.069 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 24 ms
- Switching frequency: 30 Hz
- Output time: 8 ms
- Ultrasonic frequency: 380 kHz
- Supply voltage: DC 10 V to 30 V
- Power consumption: ≤ 0.75 W
- Initialization time: < 300 ms
- Indication: 2 x LED
- Enclosure rating: IP65 / IP67
- Protection class: III
- Digital output: 1 PNP, max 200 mA
- Hysteresis: 2 mm
- Connection type: Male connector, M12, 4-pin
- Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
- Operating temperature: -25 °C to +70 °C
- Storage temperature: -40 °C to +85 °C
- Dimensions (H x L x W): 12mm x 55.1mm x 12mm
- Weight: 0.1 kg
Key Features
- Operating range from 20 mm to 150 mm, extendable to 250 mm
- High resolution of ≥ 0.069 mm and measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Temperature compensation for reliable performance
- Fast response time of 24 ms and switching frequency of 30 Hz
- IP65 / IP67 rated enclosure for robust protection
- Metal housing with nickel-plated brass and polyurethane foam ultrasonic transducer
- Digital PNP output with maximum current of ≤ 200 mA
- Safety-related parameters with MTTFD of 101 years and DCavg of 0%
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection and measurement
- Natural object detection in manufacturing processes
- Safety-related monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of ≤ 0.75 W reduces energy usage
- Durable metal housing extends product life, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UM12-1172211 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
