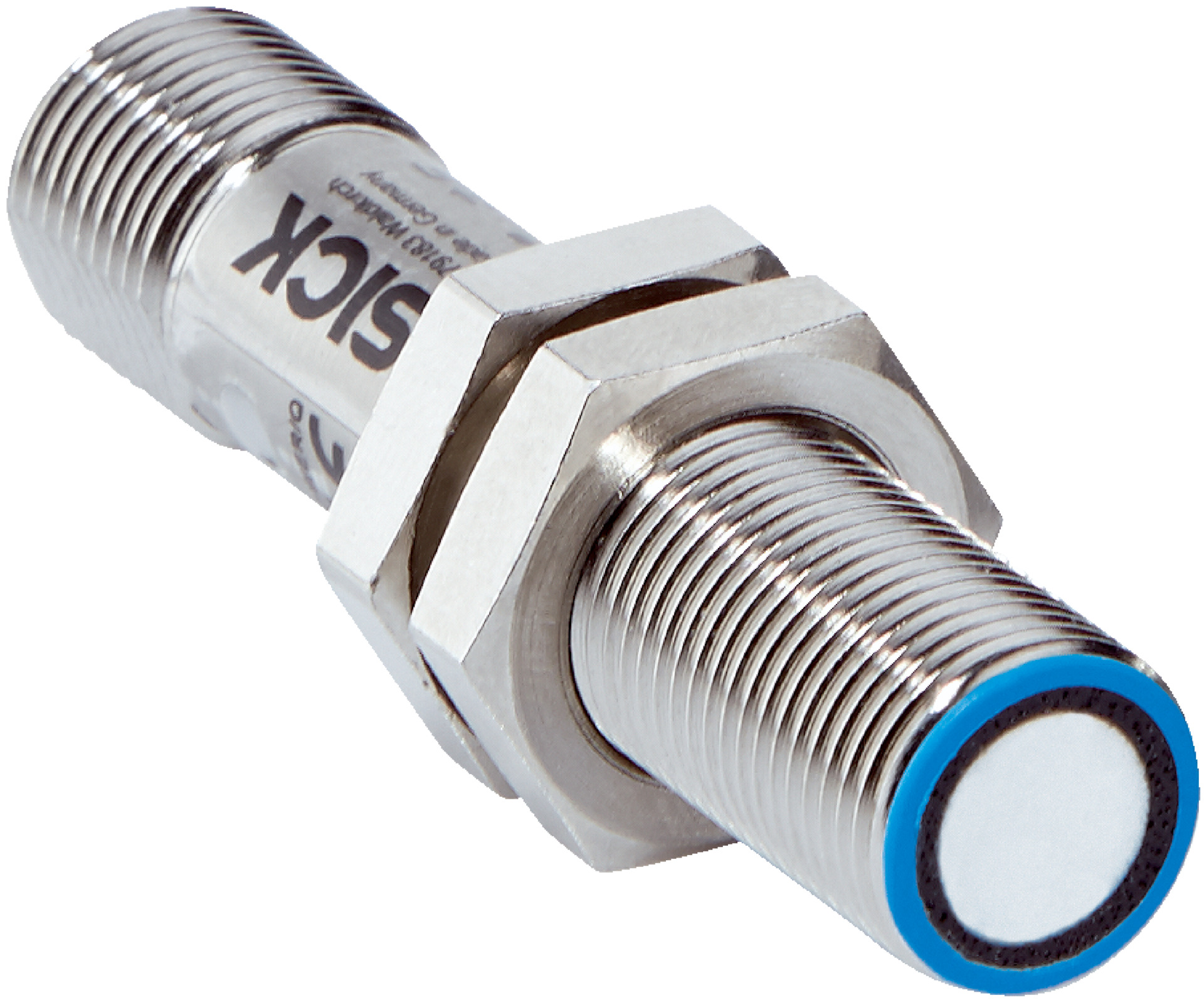

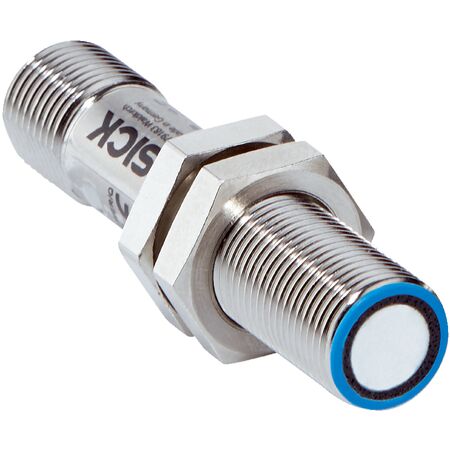

Ultrasonic Proximity Sensor | 20 mm to 150 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Proximity Sensor UM12-11722B1 offers an operating range from 20 mm to 150 mm, extendable to 250 mm, making it ideal for industrial automation and precise object detection. With a high resolution of ≥ 0.069 mm and IP65/IP67 enclosure rating, this sensor ensures reliable performance in challenging environments, perfect for process control and measurement applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 20 mm to 150 mm, extendable to 250 mm
- Target: Natural objects
- Resolution: ≥ 0.069 mm
- Repeatability: ± 0.15 %
- Measurement accuracy: ± 1 %
- Temperature compensation: Yes
- Response time: 24 ms
- Switching frequency: 30 Hz
- Output time: 8 ms
- Ultrasonic frequency: 380 kHz
- Additional functions: Adjustable operating modes, teach-in digital output, invertible output, factory reset
- Supply voltage: DC 10 V to 30 V
- Power consumption: ≤ 0.75 W
- Initialization time: < 300 ms
- Indication: 2 x LED
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection type: Male connector, M12, 4-pin
- Thread size: M12 x 1
- Dimensions (H x L x W): 12mm x 55.1mm x 12mm
- Weight: 0.1 kg
Key Features
- Operating range from 20 mm to 150 mm, extendable to 250 mm
- High resolution of ≥ 0.069 mm
- Repeatability of ± 0.15 %
- Measurement accuracy of ± 1 %
- Temperature compensation included
- Response time of 24 ms and switching frequency of 30 Hz
- Adjustable operating modes including switching point, switching window, and background suppression
- IO-Link V1.1 interface for process data, parameterization, diagnosis, and data storage
- Push-pull digital output (PNP/NPN) with maximum output current ≤ 100 mA
- Enclosure rating IP65 / IP67 for robust protection
- Compact cylindrical design with metal housing and M12 x 1 thread size
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Measurement of natural objects within 20 mm to 250 mm range
- Process control requiring precise distance measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with power consumption ≤ 0.75 W
- Durable metal housing extends product life reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK UM12-11722B1 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
