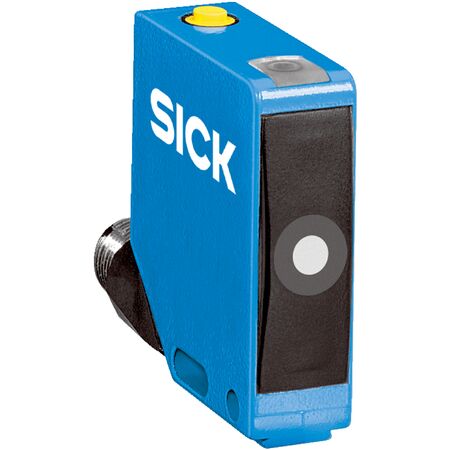

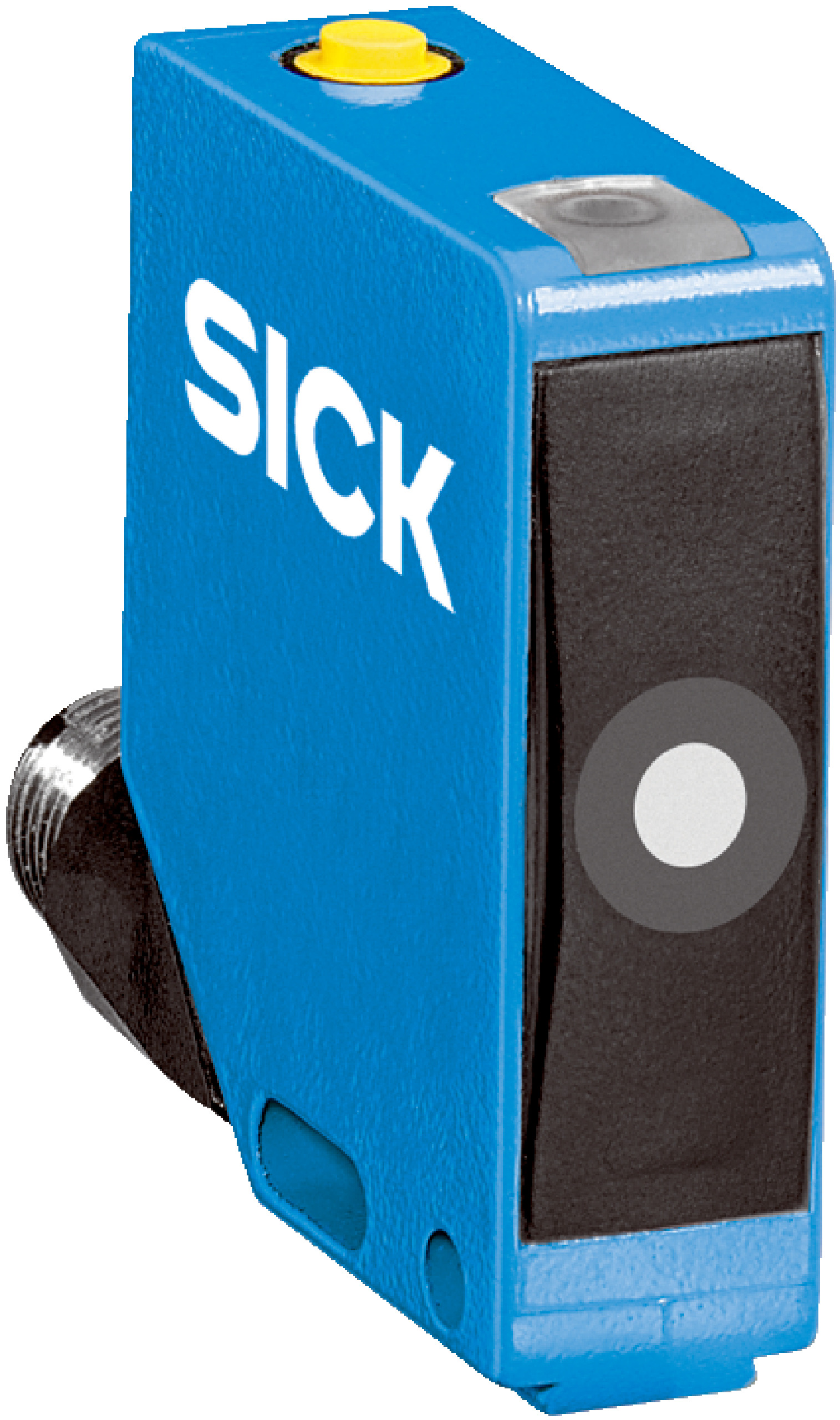

Ultrasonic Proximity Sensor | 20 mm to 150 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Proximity Sensor UC12-1123E offers an operating range from 20 mm to 150 mm, extendable to 250 mm, with a high resolution of ≥ 0.1 mm and measurement accuracy of ± 1%. Designed for industrial automation, this sensor is perfect for precise object detection and distance measurement, ensuring reliable performance in challenging environments with its robust IP65/IP67 rated housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 20 mm to 150 mm, extendable to 250 mm
- Resolution: ≥ 0.1 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 30 ms
- Switching frequency: 25 Hz
- Ultrasonic frequency: 380 kHz
- Output time: 8 ms
- Digital outputs: 2 push-pull (PNP/NPN), max current ≤ 500 mA
- Supply voltage: DC 10 V to 30 V
- Power consumption: ≤ 1.2 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection: Male M12, 4-pin connector
- Temperature range: -25 °C to +70 °C (operation), -40 °C to +85 °C (storage)
- Dimensions (H x L x W): 48.8mm x 43.5mm x 15mm
- Weight: 0.1 kg
Key Features
- Operating range from 20 mm to 150 mm, extendable to 250 mm
- High resolution of ≥ 0.1 mm and measurement accuracy of ± 1%
- Temperature compensation for reliable operation
- Fast response time of 30 ms and switching frequency of 25 Hz
- Complementary digital outputs with push-pull PNP/NPN type
- IO-Link V1.1 interface for process data, parameterization, and diagnosis
- Robust metal housing with IP65/IP67 protection rating
- Operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration of IO-Link and sensor outputs.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing processes
- Use in environments requiring precise ultrasonic sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with power consumption ≤ 1.2 W
- Durable metal housing reduces waste through extended product life
- Compliance with China-RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK UC12-1123E Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
