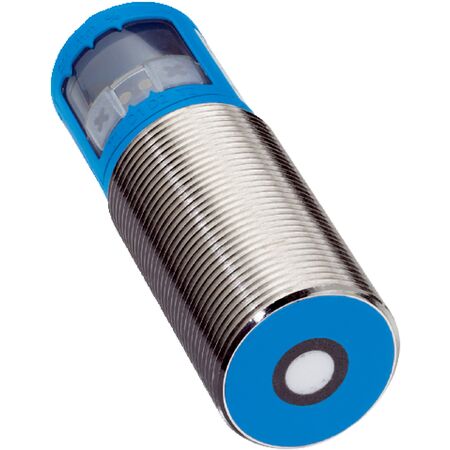

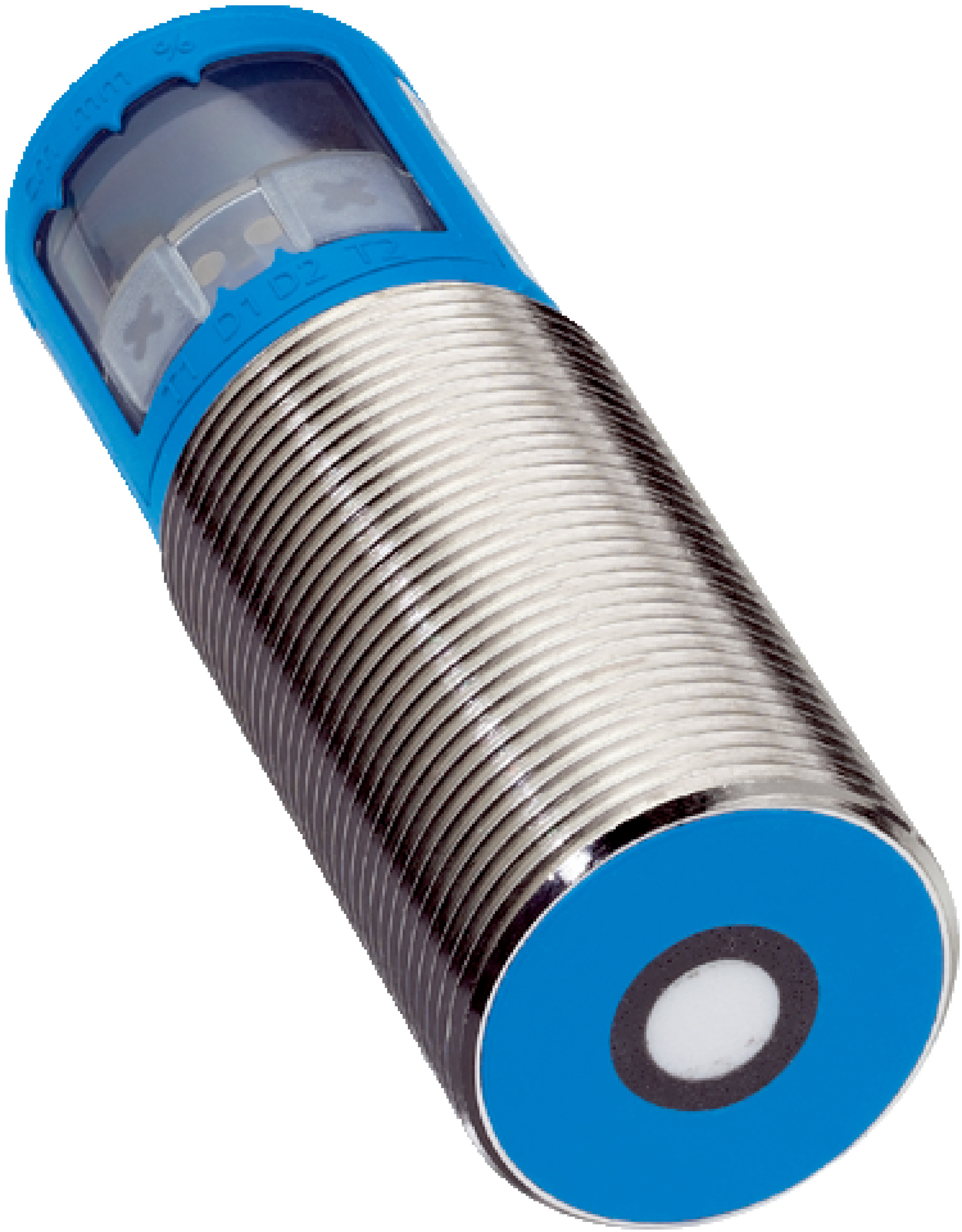

Ultrasonic Proximity Sensor | 30mm to 250mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Proximity Sensor UM30-211114 offers an impressive operating range from 30 mm to 250 mm, extendable to 350 mm, with a high resolution of ≥ 0.18 mm. Designed for industrial automation, this sensor ensures accurate object detection and measurement in harsh environments, thanks to its robust IP65/IP67 rated metal housing and fast response time of 32 ms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 30mm x 84mm x 30mm
- Weight: 0.15 kg
Key Features
- Operating range from 30 mm to 250 mm, extendable to 350 mm
- High resolution of ≥ 0.18 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors with no cross talk
- Temperature compensation for stable measurements
- Fast response time of 32 ms and switching frequency of 25 Hz
- LED display with 2 LEDs for status indication
- Robust metal housing with IP65/IP67 rating
- M12 5-pin male connector for easy integration
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connections.
Applications
- Industrial automation for object detection
- Measurement of natural objects within 30 mm to 350 mm range
- Use in environments requiring high repeatability and accuracy
- Suitable for harsh environments with IP65/IP67 protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable metal housing extends product life reducing waste
- Low power consumption of ≤ 2.4 W conserves energy
- Temperature compensation improves efficiency and reduces errors
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UM30-211114 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
