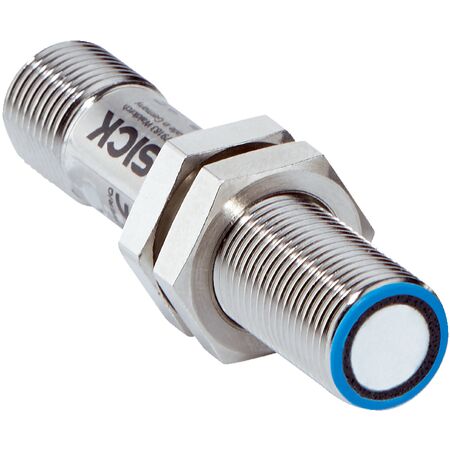

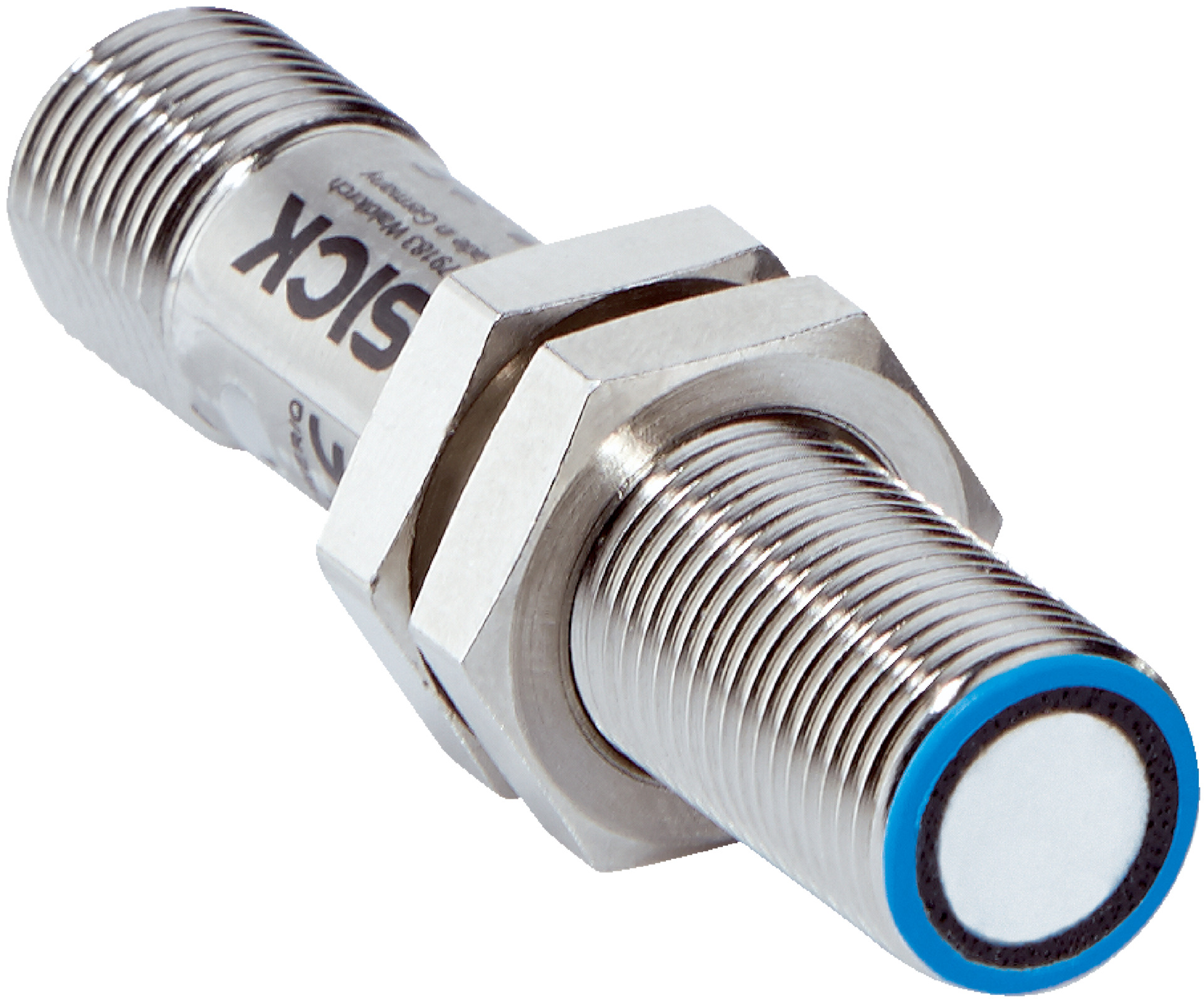

Ultrasonic Proximity Sensor | 40 mm to 240 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Proximity Sensor UM12-11922B1 offers an operating range from 40 mm to 240 mm, extendable to 350 mm, with a high resolution of ≥ 0.069 mm and repeatability of ± 0.15%. Ideal for industrial automation, this sensor ensures precise object detection and distance measurement, making it perfect for manufacturing processes and process control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 40 mm to 240 mm, extendable to 350 mm
- Resolution: ≥ 0.069 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 30 ms
- Switching frequency: 25 Hz
- Output time: 10 ms
- Ultrasonic frequency: 500 kHz
- Supply voltage: DC 10 V to 30 V
- Power consumption: ≤ 1.05 W
- Initialization time: < 300 ms
- Indication: 2 x LED
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection type: Male connector, M12, 4-pin
- Thread size: M12 x 1
- Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
- Dimensions (H x L x W): 12mm x 55.1mm x 12mm
- Weight: 0.1 kg
Key Features
- Operating range from 40 mm to 240 mm, extendable to 350 mm
- High resolution of ≥ 0.069 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Temperature compensation for stable performance
- Adjustable operating modes including switching point, switching window, and background suppression
- IO-Link V1.1 interface for process data, parameterization, diagnosis, and data storage
- Push-pull digital output (PNP/NPN) with maximum output current ≤ 100 mA
- Robust metal housing with IP65/IP67 protection rating
- Operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing processes
- Process control requiring precise ultrasonic sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 1.05 W)
- Durable metal housing extends product life reducing waste
- Compliant with China-RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UM12-11922B1 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
