Ultrasonic Proximity Sensor | 40 mm to 240 mm Range | High Resolution | IP65/IP67 Rated | by SICK
The Ultrasonic Proximity Sensor is designed for precise object detection with an operating range of 40 mm to 240 mm, extendable to 350 mm. Featuring a high resolution of ≥ 0.069 mm and IP65/IP67 enclosure rating, this sensor is perfect for industrial automation applications. With fast response times and temperature compensation, it ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 40 mm to 240 mm, extendable to 350 mm
- Target: Natural objects
- Resolution: ≥ 0.069 mm
- Repeatability: ± 0.15 %
- Measurement accuracy: ± 1 %
- Temperature compensation: Yes
- Response time: 30 ms
- Output time: 10 ms
- Ultrasonic frequency: 500 kHz
- Analog output: 1 current output, 4 mA to 20 mA, ≤ 500 Ω, 12 bit resolution
- Supply voltage: DC 10 V to 30 V
- Power consumption: ≤ 1.2 W
- Initialization time: < 300 ms
- Indication: 2 LEDs
- Enclosure rating: IP65 / IP67
- Protection class: III
- Housing material: Metal (nickel-plated brass, PBT, polyurethane foam, glass epoxy resin)
- Connection type: Male connector, M12, 4-pin
- Thread size: M12 x 1
- Dimensions (H x L x W): 12mm x 60.1mm x 12mm
- Weight: 0.1 kg
Key Features
- Operating range from 40 mm to 240 mm, extendable to 350 mm
- High resolution of ≥ 0.069 mm
- Repeatability of ± 0.15 %
- Measurement accuracy of ± 1 %
- Temperature compensation included
- Fast response time of 30 ms and output time of 10 ms
- Ultrasonic frequency of 500 kHz
- Additional functions include teach-in of analog output, invertable analog output, and reset to factory default
- Enclosure rating IP65 / IP67 for robust protection
- Supply voltage DC 10 V to 30 V with low power consumption ≤ 1.2 W
- Indication via 2 LEDs
- Protection class III
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing processes
- Use in environments requiring precise ultrasonic sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP65/IP67 rated housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

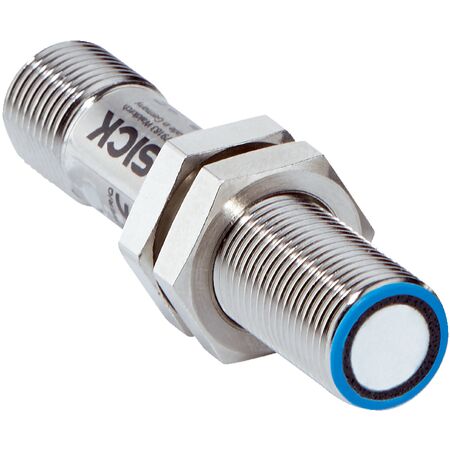

The SICK UM12-1192261 Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
