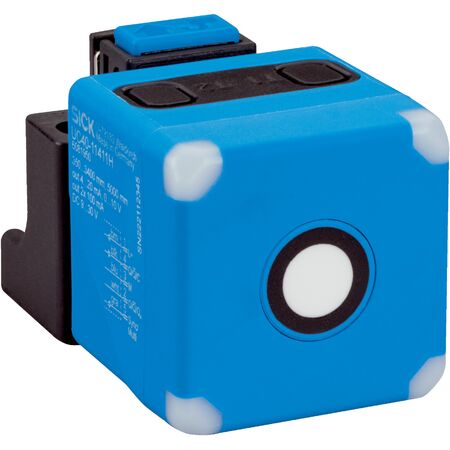

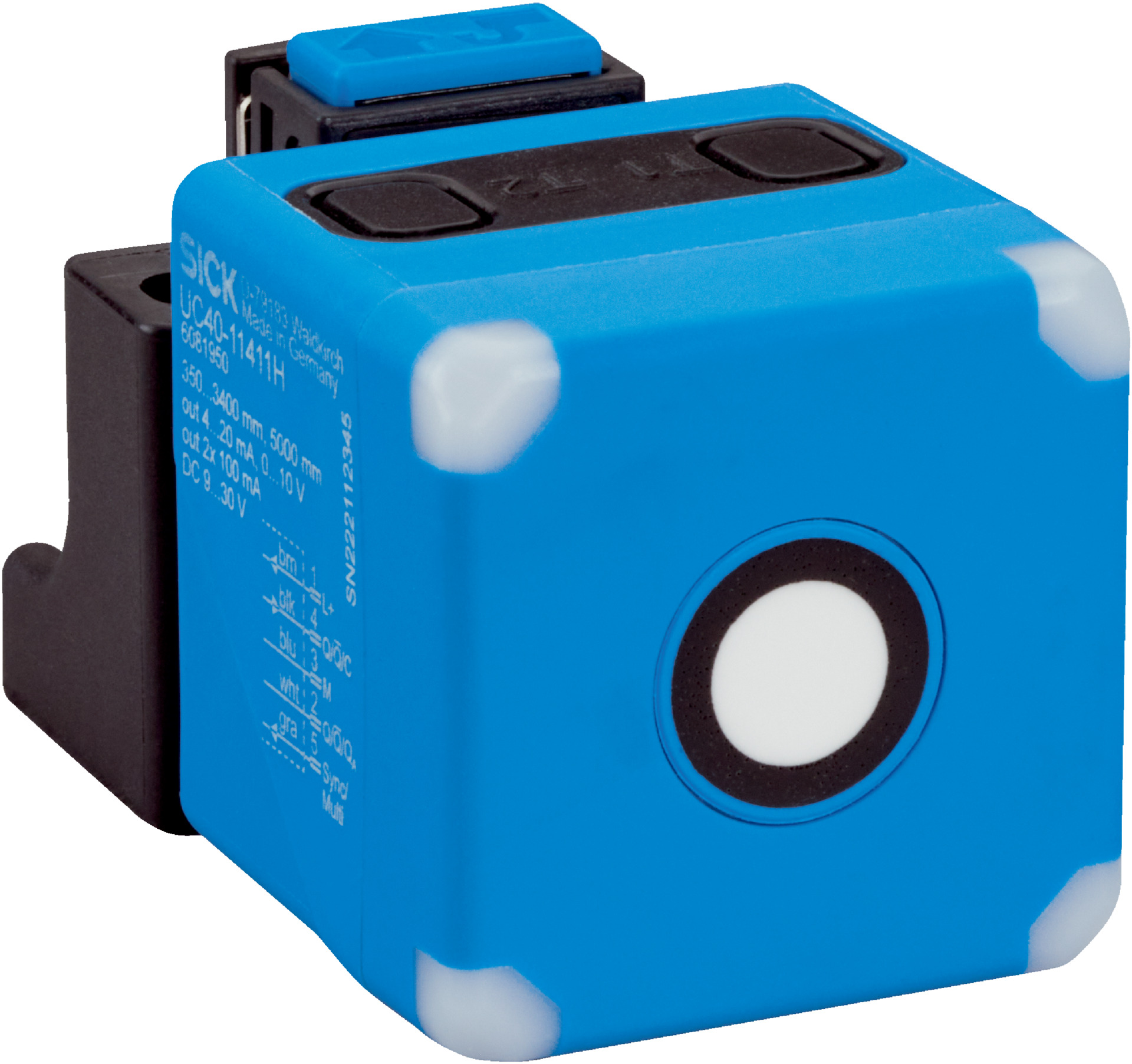

Ultrasonic Proximity Sensor | 65 mm to 600 mm Range | High Resolution & Accuracy | IP65/IP67 Rated | by SICK
The Ultrasonic Proximity Sensor UC40-11211B offers an impressive operating range from 65 mm to 600 mm, with a high resolution of ≥ 0.1 mm and measurement accuracy of ± 1%. Perfect for industrial automation and natural object detection, this sensor features an IP65/IP67 rated enclosure for robust protection in challenging environments, ensuring reliable performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 65 mm to 350 mm, extendable to 600 mm
- Resolution: ≥ 0.1 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 64 ms
- Switching frequency: 10 Hz
- Output time: 16 ms
- Ultrasonic frequency: 400 kHz
- Supply voltage: DC 9 V to 30 V
- Power consumption: ≤ 1.5 W
- Initialization time: < 300 ms
- Indication: 4 x LED
- Enclosure rating: IP65, IP67
- Protection class: III
- Connection type: Male connector, M12, 5-pin
- Hysteresis: 5 mm
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.12 kg
Key Features
- Operating range from 65 mm to 350 mm, extendable to 600 mm
- High resolution of ≥ 0.1 mm and repeatability of ± 0.15%
- Measurement accuracy of ± 1%
- Adjustable operating modes including switching point, switching window, and background suppression
- Synchronization capability for up to 50 sensors with no cross talk
- Temperature compensation for stable performance
- IO-Link V1.1 interface for process data, parameterization, diagnosis, and data storage
- Push-pull digital output (PNP/NPN) with maximum output current ≤ 100 mA
- Enclosure rated IP65 and IP67 for robust protection
- Operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and IO-Link technology to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing processes
- Use in environments requiring precise ultrasonic sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with power consumption ≤ 1.5 W
- Durable IP65/IP67 rated housing reduces environmental impact by extending product lifespan
- Compliance with China-RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK UC40-11211B Ultrasonic Sensor is available for immediate purchase, ideal for industrial automation and natural object detection applications.
