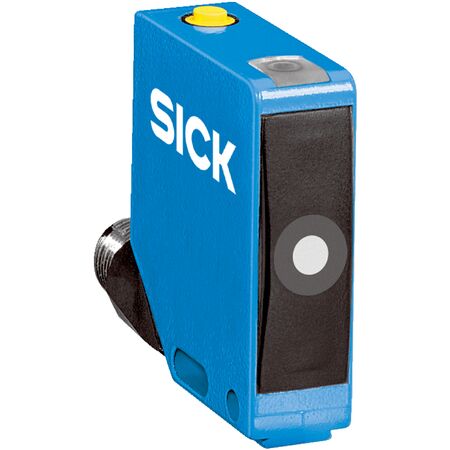

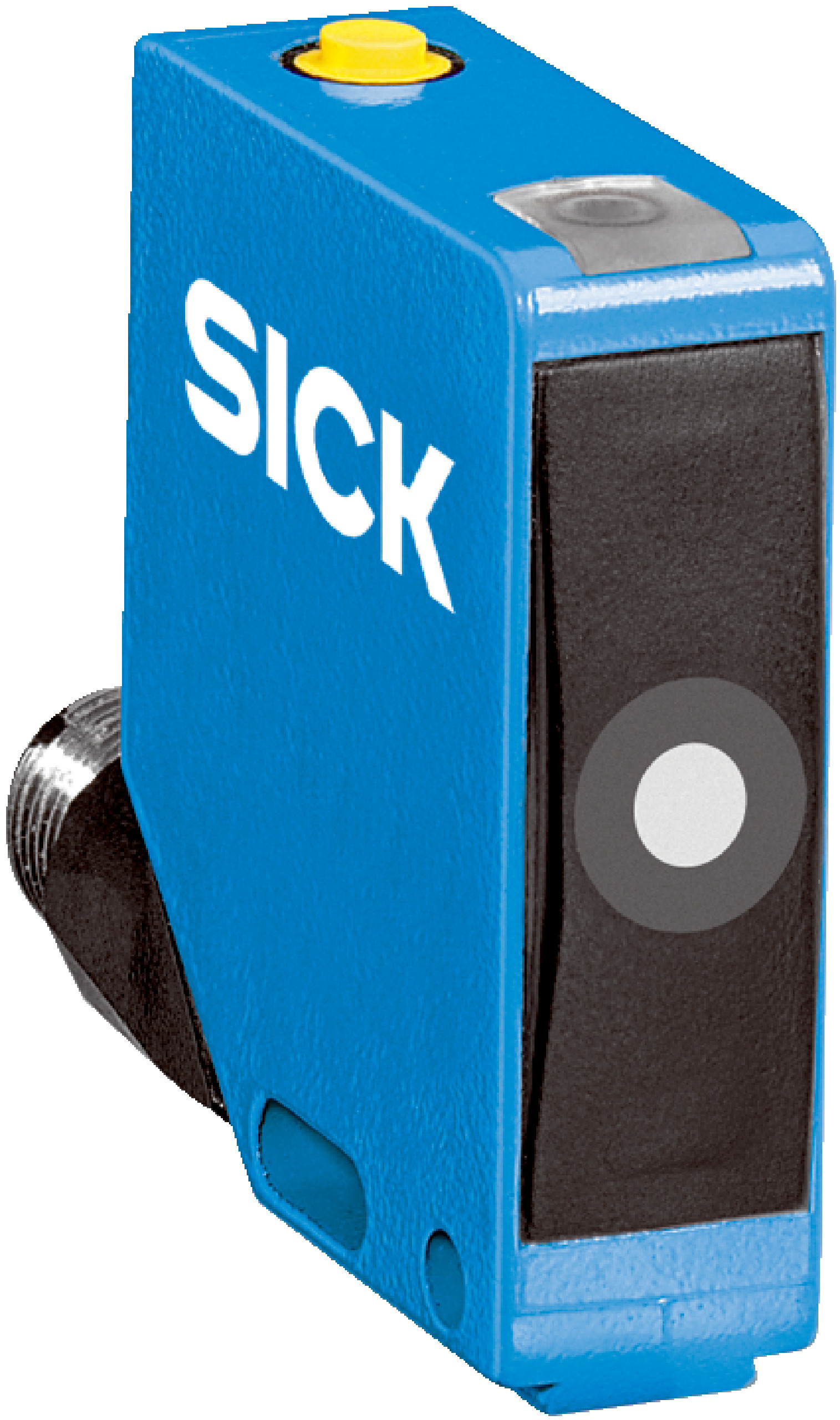

Ultrasonic Proximity Sensor UC12-1223E | 55mm to 250mm Range | High Resolution & Fast Response | by SICK
The Ultrasonic Proximity Sensor UC12-1223E offers an operating range from 55 mm to 250 mm, extendable to 350 mm, with a high resolution of ≥ 0.1 mm and ± 1% measurement accuracy. Designed for industrial automation, this sensor is perfect for precise object detection and distance measurement, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 55 mm to 250 mm, extendable to 350 mm
- Resolution: ≥ 0.1 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 30 ms
- Switching frequency: 25 Hz
- Output time: 8 ms
- Ultrasonic frequency: 500 kHz
- Digital outputs: 2 complementary push-pull (PNP/NPN), max 100 mA
- Supply voltage: DC 10 V to 30 V
- Power consumption: ≤ 1.2 W
- Enclosure rating: IP65 / IP67
- Protection class: III
- Connection: Male M12, 4-pin connector
- Temperature range: -25 °C to +70 °C (operation), -40 °C to +85 °C (storage)
- Dimensions (H x L x W): 48.8mm x 43.5mm x 15mm
- Weight: 0.1 kg
Key Features
- Operating range from 55 mm to 250 mm, extendable to 350 mm
- High resolution of ≥ 0.1 mm with ± 1% measurement accuracy
- Temperature compensation for reliable operation
- Fast response time of 30 ms and switching frequency of 25 Hz
- Dual complementary digital outputs (PNP/NPN) with push-pull type
- IO-Link V1.1 interface for process data, parameterization, and diagnostics
- Robust metal zinc diecast housing with IP65/IP67 protection rating
- Operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for object detection and distance measurement
- Natural object detection in manufacturing processes
- Process control requiring precise ultrasonic sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 1.2 W)
- Durable metal housing reduces waste through extended product life
- Compliance with China-RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and duration.
Available Now
The SICK UC12-1223E ultrasonic sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
