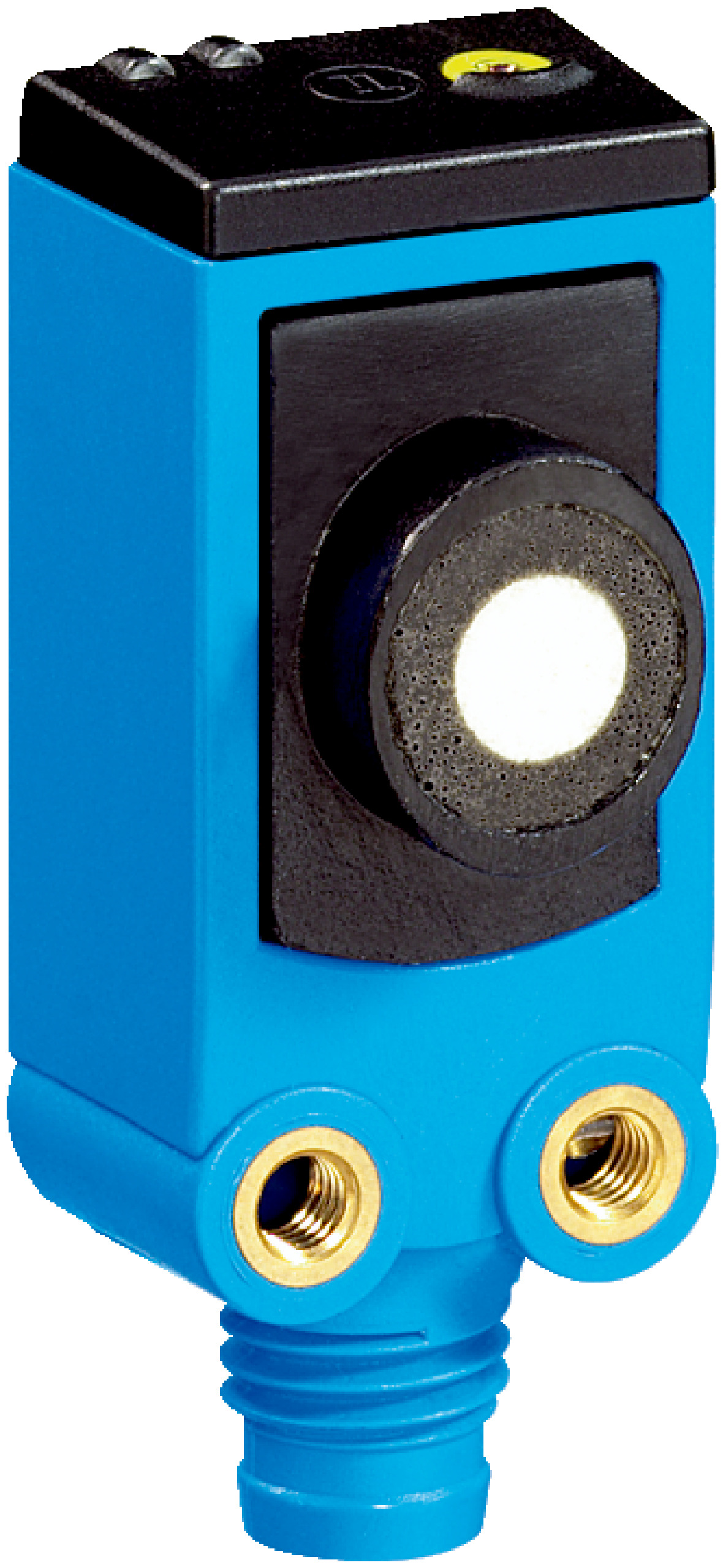

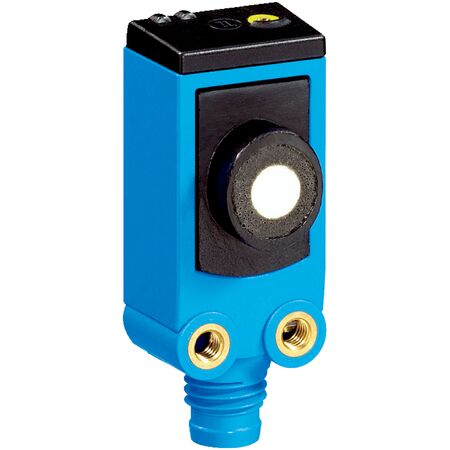

Ultrasonic Proximity Sensor UC4-11345 | 13 mm to 150 mm Range | High Resolution & IP65/IP67 Rated | by SICK
The Ultrasonic Proximity Sensor UC4-11345 offers an operating range from 13 mm to 150 mm, with a high resolution of ≥ 0.1 mm and measurement accuracy of ± 1%. Perfect for industrial automation and safety monitoring, this sensor features robust IP65/IP67 housing for durability and low power consumption, making it an ideal choice for reliable object detection in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Operating range: 13 mm to 100 mm, extendable to 150 mm
- Resolution: ≥ 0.1 mm
- Repeatability: ± 0.15%
- Measurement accuracy: ± 1%
- Response time: 24 ms
- Switching frequency: 30 Hz
- Output time: 8 ms
- Ultrasonic frequency: 380 kHz
- Digital output: 1 NPN output, max current ≤ 200 mA
- Supply voltage: DC 15 V to 30 V
- Power consumption: ≤ 0.75 W
- Initialization time: < 300 ms
- Indication: 2 LEDs
- Enclosure rating: IP65 / IP67
- Protection class: III
- Housing material: Plastic (ABS), ultrasonic transducer: polyurethane foam, glass epoxy resin
- Connection type: Male connector, M8, 3-pin
- Operating temperature: –25 °C to +70 °C
- Storage temperature: –40 °C to +85 °C
- Temperature drift: 0.17% / K
- Dimensions (H x L x W): 40mm x 17mm x 16mm
- Weight: 0.1 kg
Key Features
- Operating range from 13 mm to 100 mm, extendable to 150 mm
- High resolution of ≥ 0.1 mm and measurement accuracy of ± 1%
- Repeatability of ± 0.15%
- Response time of 24 ms and switching frequency of 30 Hz
- Adjustable operating modes including switching point, switching window, and background suppression
- Digital output with NPN type and maximum output current ≤ 200 mA
- Enclosure rating IP65 / IP67 for robust protection
- Operating temperature range from –25 °C to +70 °C
- Low power consumption ≤ 0.75 W
- Safety-related parameters with MTTFD of 101 years and DCavg 0%
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with ultrasonic sensor technology and electrical safety standards.
Applications
- Industrial automation for object detection
- Measurement of natural objects within 13 mm to 150 mm range
- Safety-related monitoring with high reliability
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP65/IP67 rated housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UC4-11345 ultrasonic sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
